Tipo 2-5000

~ 73 mm

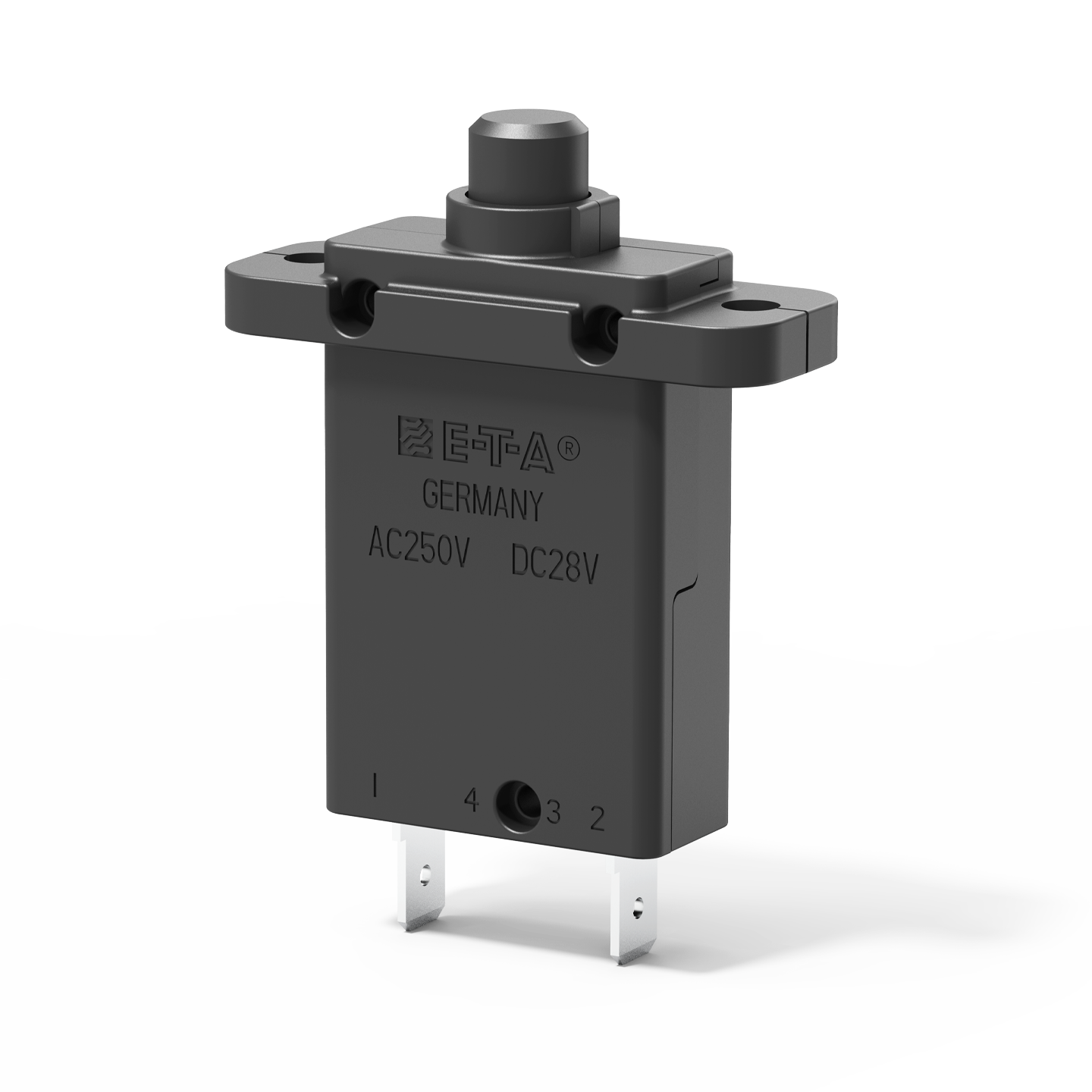

Typ 2-5000 von E-T-A: Einpoliger thermischer Schutzschalter mit verschiedenen Montagemöglichkeiten.

Descripción

Ficha técnica

Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism. Type 2-5000 is available with optional manual release (-H), (R-type TO CBE to EN 60934 in press-to-reset configuration; M-type when fitted with manual release -H), flange mounting. Options include an additional unprotected circuit tap (-A3).

Approved to CBE standard EN 60934 (IEC 60934).

Datos técnicos

Voltage rating
  • AC 250 V
  • DC 28 V
  • UL/CSA: DC 50 V
Current ratings de 0.05 A hasta 25 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
screw terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
Typical life 0.05...16 A 5,000 operations at 2 x IN, inductive

17...25 A 5,000 operations at 2 x IN, resistive
Interrupting capacity Icn 0.05...2.5 A: 8 x IN

3...5 A: 20 x IN

6...12 A: 200 A (higher interrupting capacity available to special order)

13...25 A: 400 A
Certificates VDE, CSA, UL, SEV, CCC

Accesorios

Número de pedidoDescripción
Y30047601

Cubierta antisalpicaduras transparente

Y30072801

Cubierta antisalpicaduras

Y30105602

Placa de fijación

Y30356301

Barra colectora

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Rango de tensión Minus DC 48 V
