1610-21

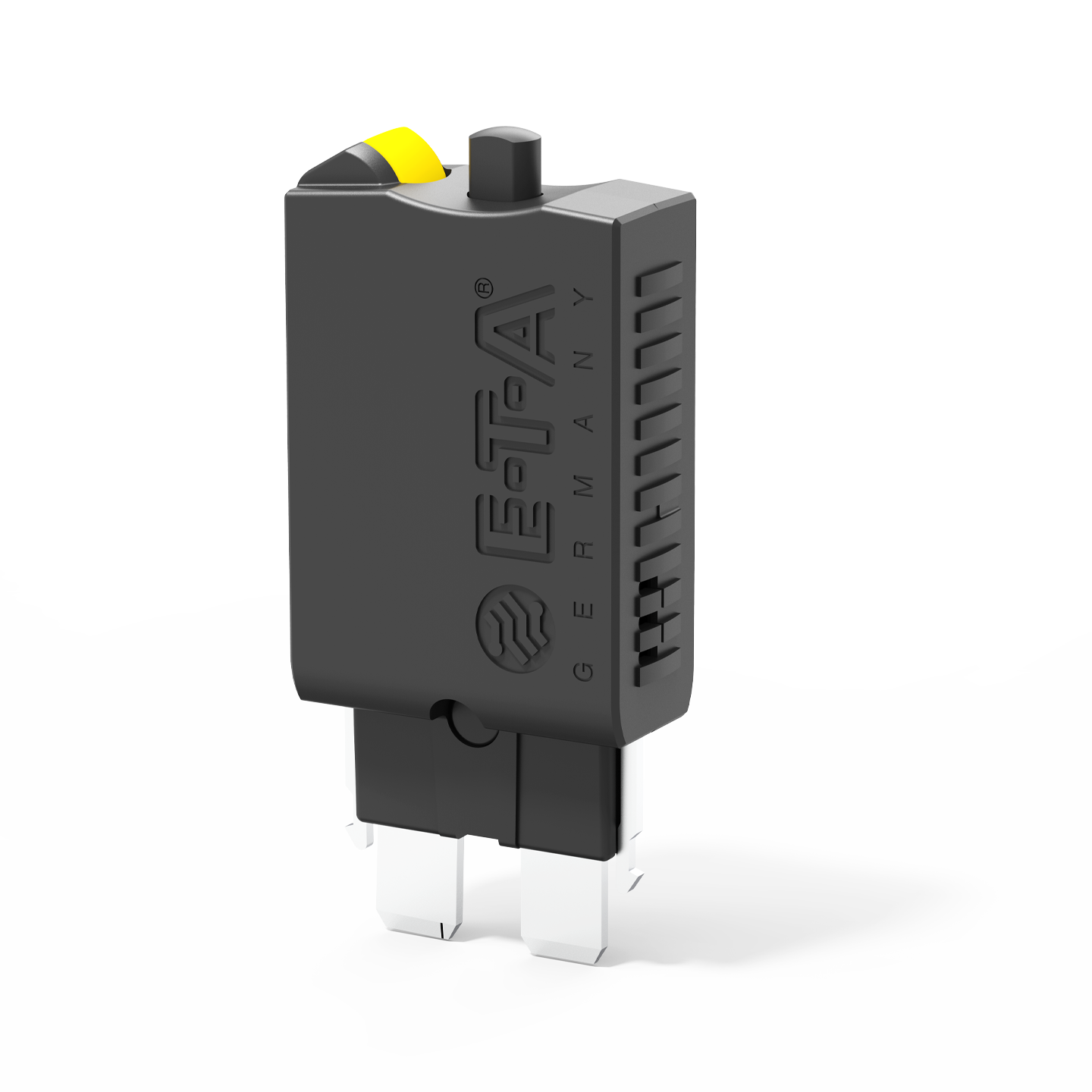

Automotive thermal circuit breaker,
colour-coded housing,
standard fuseblock mounting
Tipo 1170
~ 52 mm
Descripción
Compact single pole thermal circuit breaker with push-to-reset, tease free, trip free, snap action mechanism and separate (colour coded) manual release. Combining full feature circuit breaker protection and convenience with low cost of ownership benefits. Fitted with blade terminals for plug-in mounting.
Type III to SAE J 553.
Version 1176 is available especially for the automotive industry (current ratings correspond to those of blade fuses).
Datos técnicos
| Voltage rating |
|
|---|---|
| Current ratings |
de 3 A hasta 25 A |
| Number of poles | single pole |
| Mounting method | socket |
| Terminal design | blade terminals |
| Actuation |
manual release push button |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | with illumination |
| Typical life |
at rated current: 3...25 A 6,000 opeations at IN 3...20 A 3,000 opeations at 2 x IN 25 A 1,000 opeations at 2 x IN |
| Interrupting capacity Icn | 400 A |
Accesorios
| Número de pedido | Descripción | |
|---|---|---|
| 12-P10/-J20/-A10 |
Zócalo |
|
| X21058801-04 |
Puentes conectores bus -P10 01 = 1,5 mm2 marrón
02 = 2,5 mm2 negro
03 = 2,5 mm2 rojo
04 = 2,5 mm2 azu |
|
| X21115701/02 |
Barra colectora para zócalo de montaje
01 = con borne
02 = sin borne |
Aplicaciones
- Automóviles
- Carretilla elevadora
- Embarcaciones & vehículos
- Luminotecnia
- Vehículos de guiado automático (AGV)
- Vehículos ferroviarios
- Vehículos industriales
