Tipo 2-6500

~ 61 mm

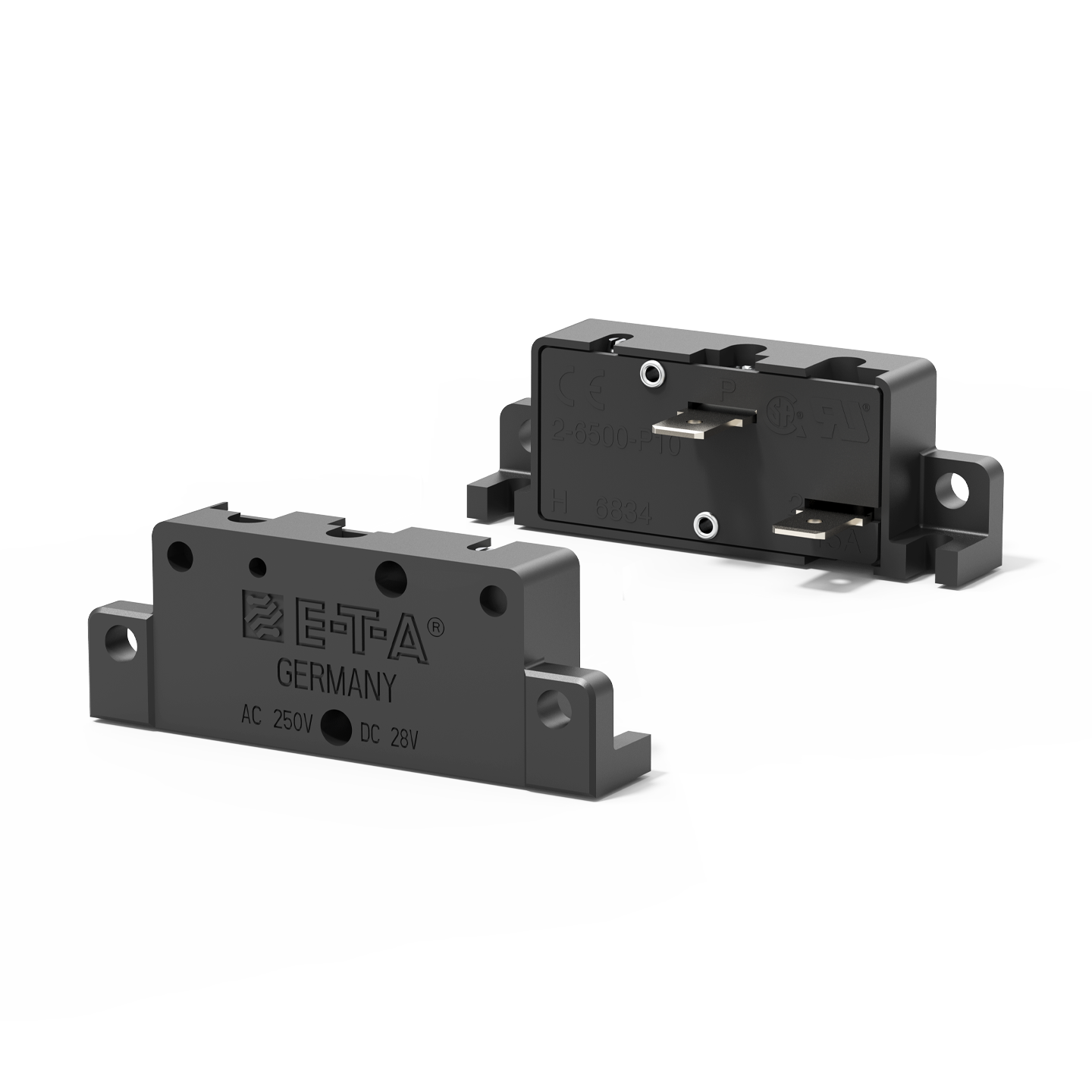

Typ 2-6500 von E-T-A: Bimetallbetätigtes, selbstrückstellendes, einpoliges Überstromschutzrelais in platzsparender Bauweise.

Descripción

Ficha técnica

Bimetal operated single pole motor protection controls with automatic reset actuation, small physical size, reliable snap-action mechanism.

Caution: In specifying these 2 products, care should be taken to ensure that automatic motor re-start does not represent a safety hazard.

Variantes descatalogadas
  • Último pedido (LOD): 30.04.2025
  • Última entrega (LDD): 31.07.2025

Variantes descatalogadas

  • L10
  • K10
  • A3

Alternativa(s)

Datos técnicos

Voltage rating
  • AC 250 V (50/60 Hz)
  • DC 28 V
Current ratings de 0.1 A hasta 10 A  (up to 15 A upon request)
Number of poles single pole
Mounting method flange
Terminal design blade terminals
Actuation without actuation
Typical life 100,000 operations at 2 x IN

Protection is ensured for 18 days of continuous locked rotor condition with Ik <= 6 x IN max. 30 A (unsupervised duty)
Interrupting capacity Icn 8 x IN (co-co-co)
Certificates UL

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
