Tipo 1410-L2

~ 33 mm

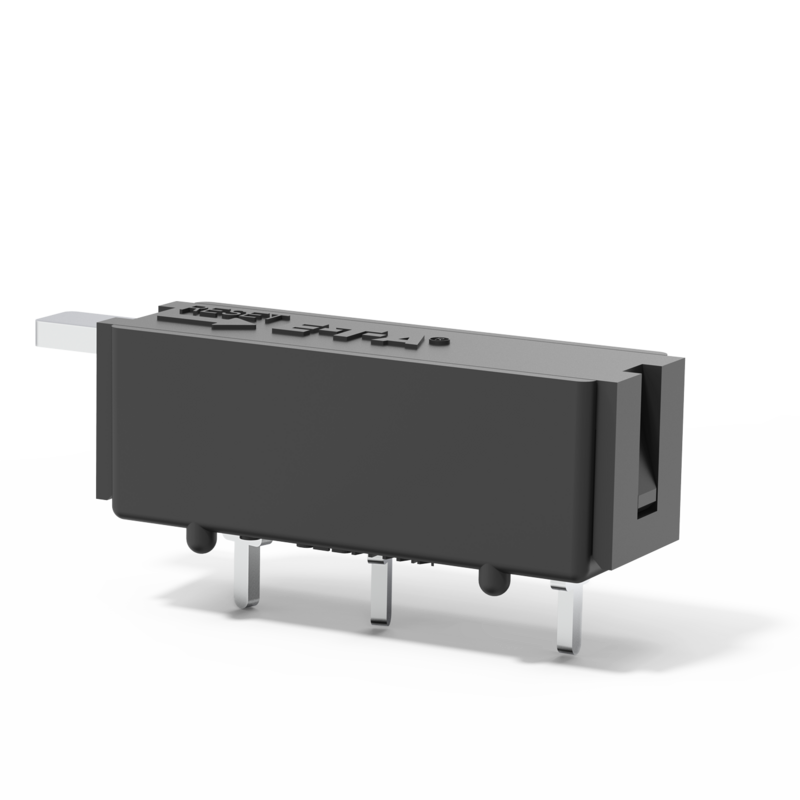

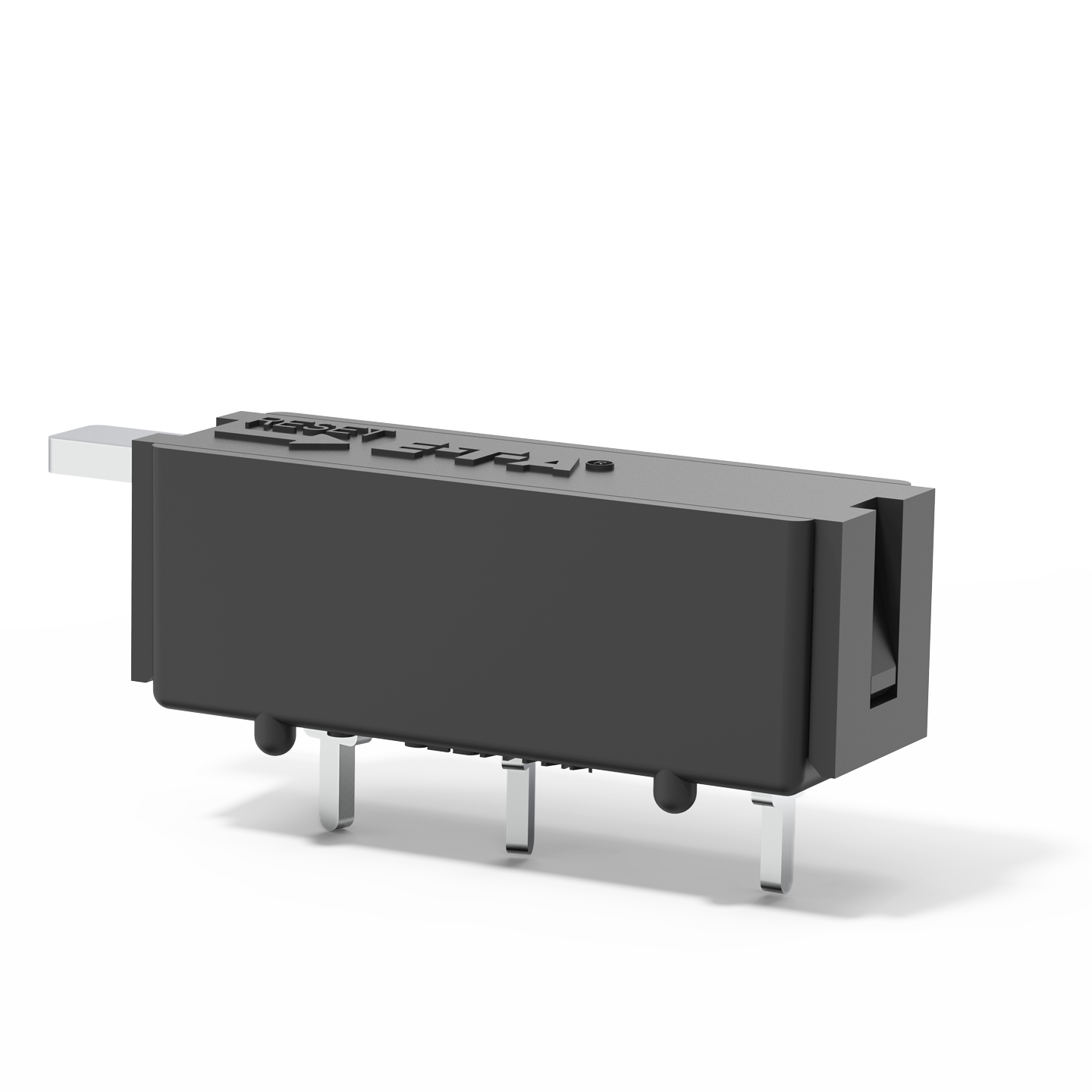

Typ 1410-L2 von E-T-A: Einpoliger Schutzschalter in Kleinbauweise. Sehr flinke Kennlinie durch spezielles Auslösesystem

Descripción

Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934), PCB mounting. Miniaturised construction minimises PCB real estate required. Type 1410-L2 features changeover contacts suitable for providing status output signals. Largely temperature-insensitive.

Datos técnicos

Voltage rating	AC 240 V DC 28 V (DC 50 V a petición) UL/CSA: AC 250 V UL/CSA: AC 50 V
Current ratings	de 0.63 A hasta 10 A
Number of poles	single pole
Mounting method	printed circuit board
Terminal design	solder terminals
Actuation	push button
Auxiliary contacts	without auxiliary contacts
Water splash protection	without water splash protection
Illumination	with illumination
Typical life	500 operations at 2 x I_N, AC, resistive 500 operations at 2 x I_N, DC, inductive
Interrupting capacity I_cn	0.63...2 A: 12 x I_N 2.5...8 A: 8 x I_N AC, max 50 A 10 A: 6 x I_N AC 3.15...10 A: 10 x I_N DC
Certificates	VDE, CSA, UL
