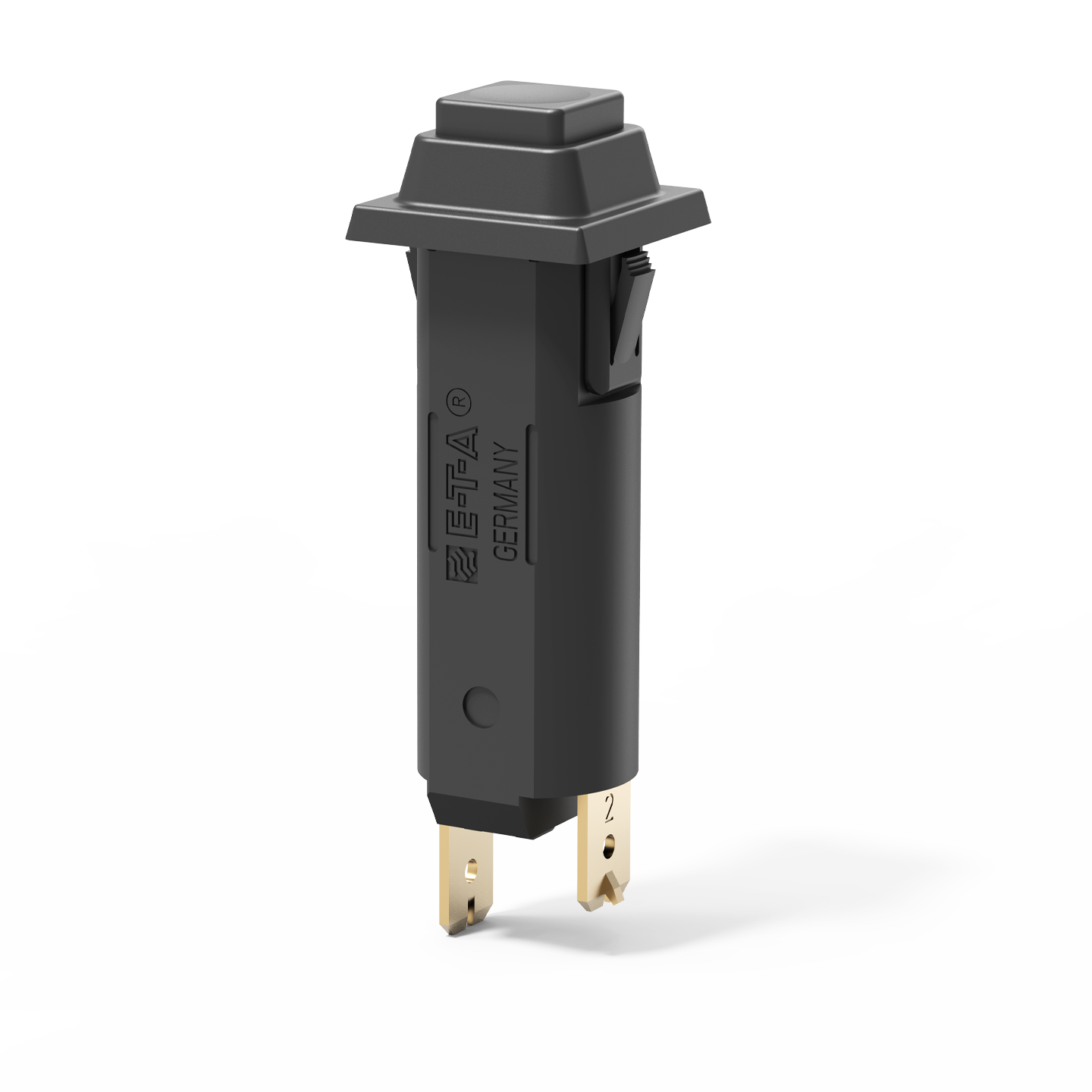

Tipo 1110

~ 66 mm
Typ 1110 von E-T-A: Kombination Schutzschalter/Ein-Aus-Schalter mit Druck/Druck-Be­tä­­tigung oder nur Rückstellung.

Descripción

Single pole switch/thermal circuit breaker (S-type TO CBE to EN 60934) with tease-free, trip-free, snap action mechanism. Designed for snap-in panel mounting utilising round hole or industry standard fuse-holder cut-out dimensions. Featuring an ergonomically styled two colour actuator with indicator band clearly showing the tripped/OFF position.

Approved to CBE standard EN 60934 (IEC 60934).

Datos técnicos

Voltage rating
  • AC 250 V
  • DC 50 V
  • UL/CSA: DC 50 V
Current ratings de 0.05 A hasta 16 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
Typical life AC: 0,05...10 A 10 000 operations

DC: 0,05...10 A 6 000 operations

DC: 12...16 A 2 000 operations
Interrupting capacity Icn AC 250 V:

0.05...10 A: 8 x IN

DC 50 V:

0.05...6,5 A: 65 x IN

7...16 A: 130 A

DC 28 V:

7...10 A: 200 A

Certificates VDE, CSA, UL

Accesorios

Número de pedido Descripción
Y30474501

Cubierta antisalpicaduras transparente

Y30560201

Cubierta antisalpicaduras negra

Aplicaciones

  • Embarcaciones & vehículos
  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
  • Técnica médica
