Tipo: 1620

Descripción

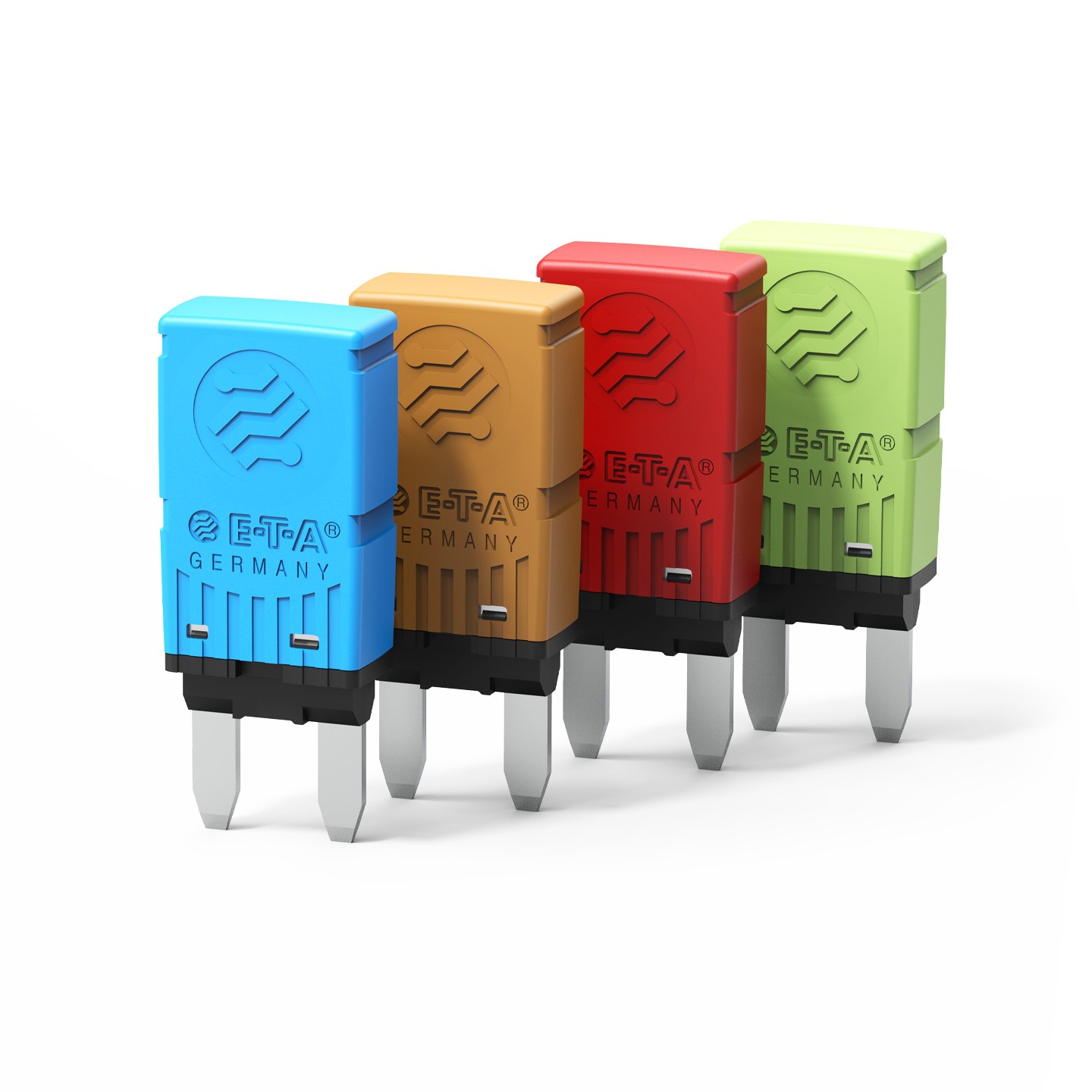

Single pole, thermal miniaturised circuit breaker designed for automotive applications. Fits into fuse blocks designed to ISO 8820-3, Type F.

Automatic reset (for DC 12 V only) and open circuit (modified reset to SAE) version optional. Open circuit version ensures contacts staying open as long as power is on. The circuit breaker will reset after the load is removed. Particularly suitable for installation in inaccessible locations.

Current ratings correspond to those of blade fuses. Clear colour coding of the ratings: blade fuse and circuit breaker of the same colour have the same rating.

Meets the requirements of SAE J553.

Datos técnicos

Datos técnicos

Voltage rating
  • DC 12 V
  • DC 24 V
Current ratings de 5A hasta 30A  DC 12 V
de 5A hasta 25A  DC 24 V
Number of poles single pole
Mounting method socket
Terminal design blade terminals
Actuation manual release
push button
Typical life 300 operations at 2 x IN
Interrupting capacity Icn ≥ 3 break operations at 150 A, or

≥ 1 break operation at 2,000 A

Aplicaciones

Aplicaciones

  • Automóviles
  • Embarcaciones & vehículos
  • Vehículos industriales
