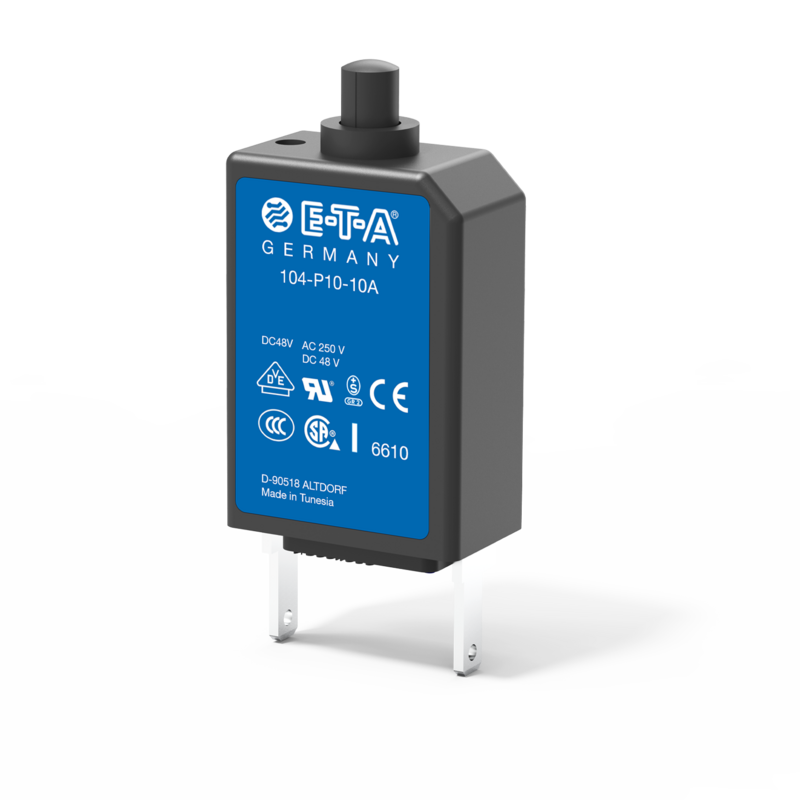

Typ 104 von E-T-A: Einpoliger, thermischer Schutzschalter in Kleinbauweise.

Descripción

Ficha técnica

Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934) integral type.

Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140-E.

Datos técnicos

Voltage rating

AC 240 V
DC 48 V
UL/CSA: AC 250 V
Current ratings de 0.05 A hasta 10 A
Number of poles single pole
Mounting method integral mounting
Terminal design blade terminals
Actuation push button
Auxiliary contacts with auxiliary contacts
without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
Typical life 0.05...5 A: 3,000 operations at 2 x IN, inductive

6...8 A: 500 operations at 2 x IN, inductive

10 A: 50 operations at 2 x IN, inductive
Interrupting capacity Icn 0.05...8 A: 6 x IN (AC)

0.05...10 A: 6 x IN (DC)
Certificates VDE, SEV, CSA, UL

Accesorios

Número de pedido Descripción
X20128501

Cubierta antisalpicaduras transparente
Y30711702

Tuerca moleteada
Y30019201

Tuerca hexagonal

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
  • Técnica médica
