Type: 1410-F1

Descripción

~ 24 mm

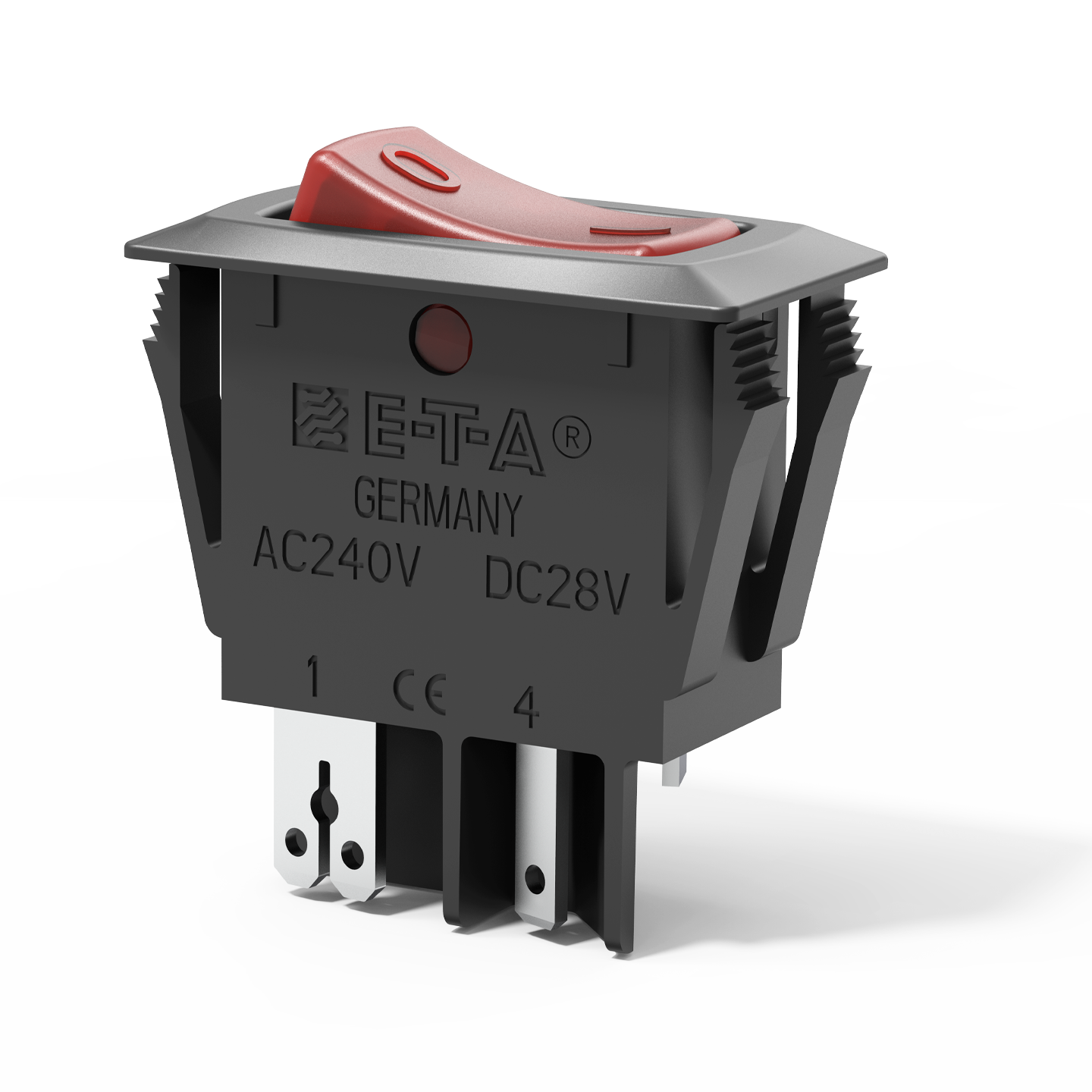

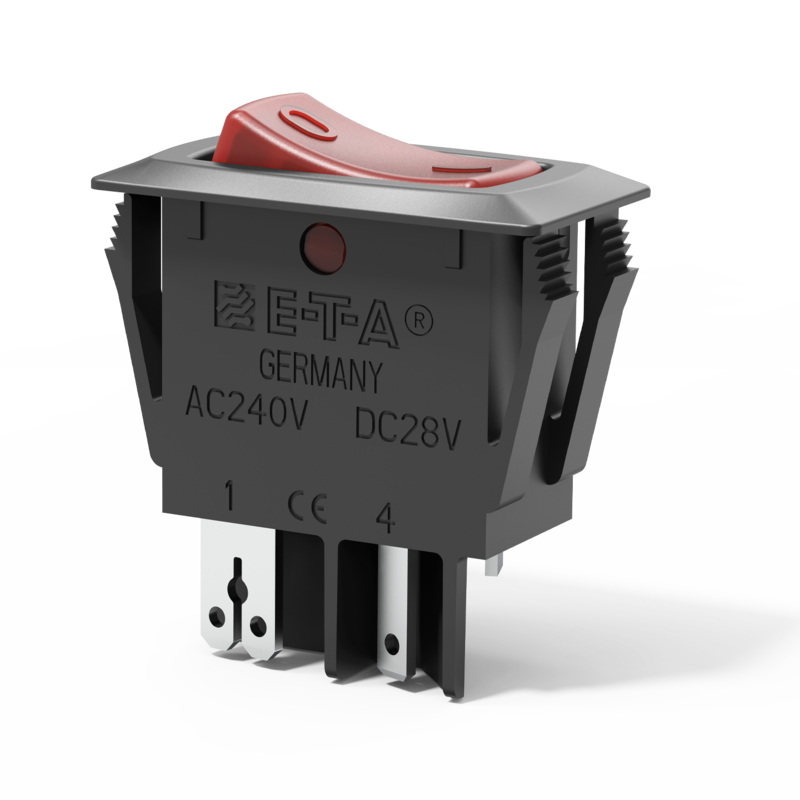

Miniaturised single pole rocker switch/thermal circuit breaker combining ON/OFF switching and extremely fast overload performance in a single component (S-type TO CBE to EN 60934/IEC 934). Under overload conditions an internal neon (filament bulb for low voltages) illuminates to give a clear signal of the tripped status of the mechanism and thereby the cause of power interruption, suffix -B. Alternatively the illumination can be conventionally wired to indicate the ON status of the device, suffix -E. Returning the rocker switch through the OFF position and back ON will reset the mechanism and restore the supply. Largely temperature-insensitive.

Complies with CBE standard EN 60934 (IEC 60934).

Descargas

Datos técnicos

Datos técnicos

Voltage rating
  • AC 240 V
  • DC 28 V (DC 50 V upon request)
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
  • UL DC 60 V
Current ratings  from 0.63 A to 10 A
Typical life 30,000 operations for IN<= 6.3 A AC/DC
10,000 operations for IN > 6.3 A AC
3,000 operations for IN > 6.3 A DC
500 break operations at 2 x IN
Interrupting capacity Icn 0.63...2 A: 12 x IN
2.5...8 A: 8 x IN AC, max 50 A
10 A: 6 x IN AC
3.15...10 A: 10 x IN DC
Number of poles
  • single pole
Mounting method
  • flange
Terminal design
  • blade terminals
Actuation
  • rocker
Auxiliary contacts
  • without auxiliary contacts
Water splash protection
  • without water splash protection
Illumination
  • with illumination
  • with illumination
Approvals CSA, UL
