Tipo 3120-N
Descripción

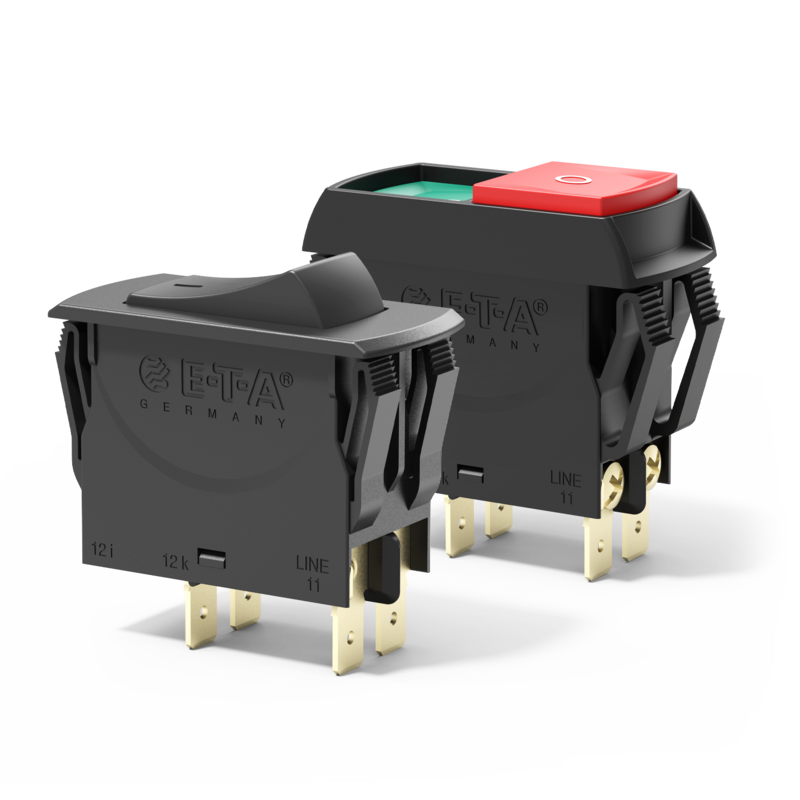

The 3120-N...-...T1-... thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120-N...-...T1-... is ideally suited for overload protection of motors, pumps, transformers and cables. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked.
Type 3120-N is also available with thermal-magnetic trip: Typ 3120-N...-...M1-...
Your benefits:
- Maximum equipment availability is ensured by overload protection perfectly matched with the loads (prevention of nuisance tripping) and quick resettability
- Reduced mounting and wiring time
- Space-saving design
- Reduced disposition and storage costs
- Increased overall reliability
Type 3120-N is also available as a switch in accordance IEC/EN 61058 (see data sheet switch only).
Datos técnicos
Voltage rating |
|
---|---|
Current ratings |
de 0.1 A hasta 20 A (hasta 30 A, bajo pedido, 1 polo) |
Number of poles |
double pole single pole |
Mounting method | flange |
Terminal design |
blade terminals screw terminals |
Actuation |
push button rocker |
Water splash protection |
with water splash protection without water splash protection |
Illumination |
with illumination with illumination |
Typical life |
single pole AC 240 V: 0,1...20 A 30 000 operations at 1 x IN, inductive DC 50 V: 0,1...4 A 30 000 operations at 1 x IN, inductive 4,5...16 A 30 000 operations at 1 x IN, resistive DC 28 V: 0,1...20 A 30 000 operations at 1 x IN, inductive double pole AC 240 V: 0,1...16 A 50 000 operations at 1 x IN, inductive 17...20 A 30 000 operations at 1 x IN, inductive DC 50 V: 0,1...16 A 50 000 operations at 1 x IN, inductive 17...20 A 10 000 operations at 1 x IN, inductive |
Interrupting capacity Icn |
(IEC/EN 60934) 1, 2-pole: IN 0,1 ... 2 A, UN AC 240 V / DC 50 V, Icn 10 x IN 1-pole: IN 2,5 ... 10 A, UN DC 50 V, Icn 50 A 1-pole: IN 2,5 ... 20 A, UN AC 240 V / DC 28 V, Icn 200 A 2-pole: IN 2,5 ... 20 A, UN DC 50 V, Icn 250 A 2-pole: IN 2,5 ... 20 A, UN AC 240 V / DC 28 V, Icn 300 A |
Certificates | VDE, UL, CSA, CCC, KC |
Accesorios
Número de pedido | Descripción | |
---|---|---|
Y30386201 |
Adaptador de bornes |
![]() |
Y30427501 |
Cubierta posterior |
![]() |
Y30367502 |
Espaciador para -F3/N3...
grosor de panel < 4 mm |
![]() |
Y30367601 |
Espaciador para -F5/N5... |
![]() |
Y31214001 |
adaptador de conexion |
![]() |
Aplicaciones
- Herramientas, electrodomésticos y aparatos de jardinería
- Industrial equipment control
- Técnica médica
