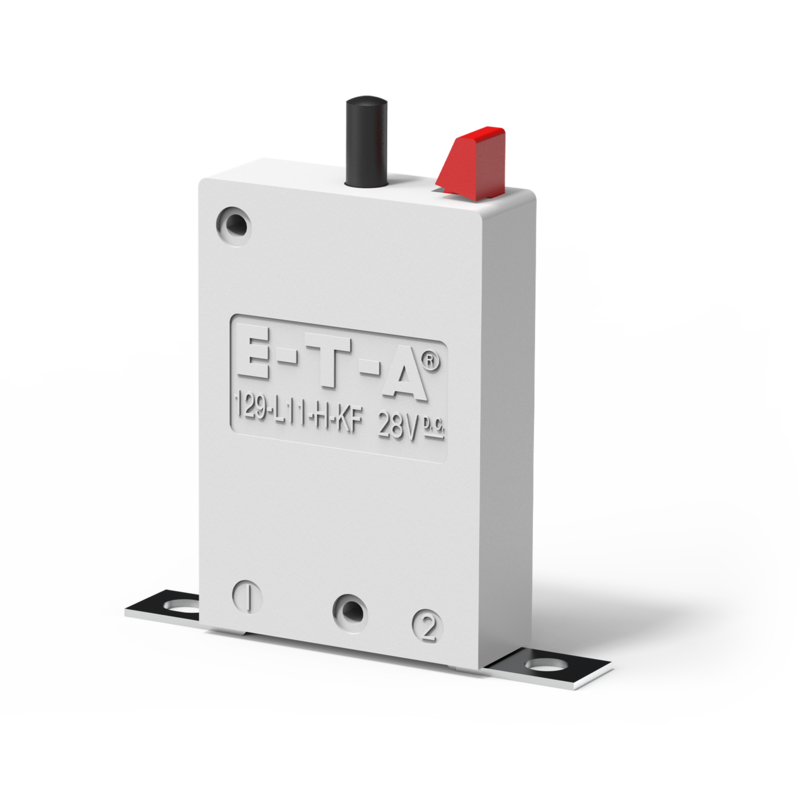

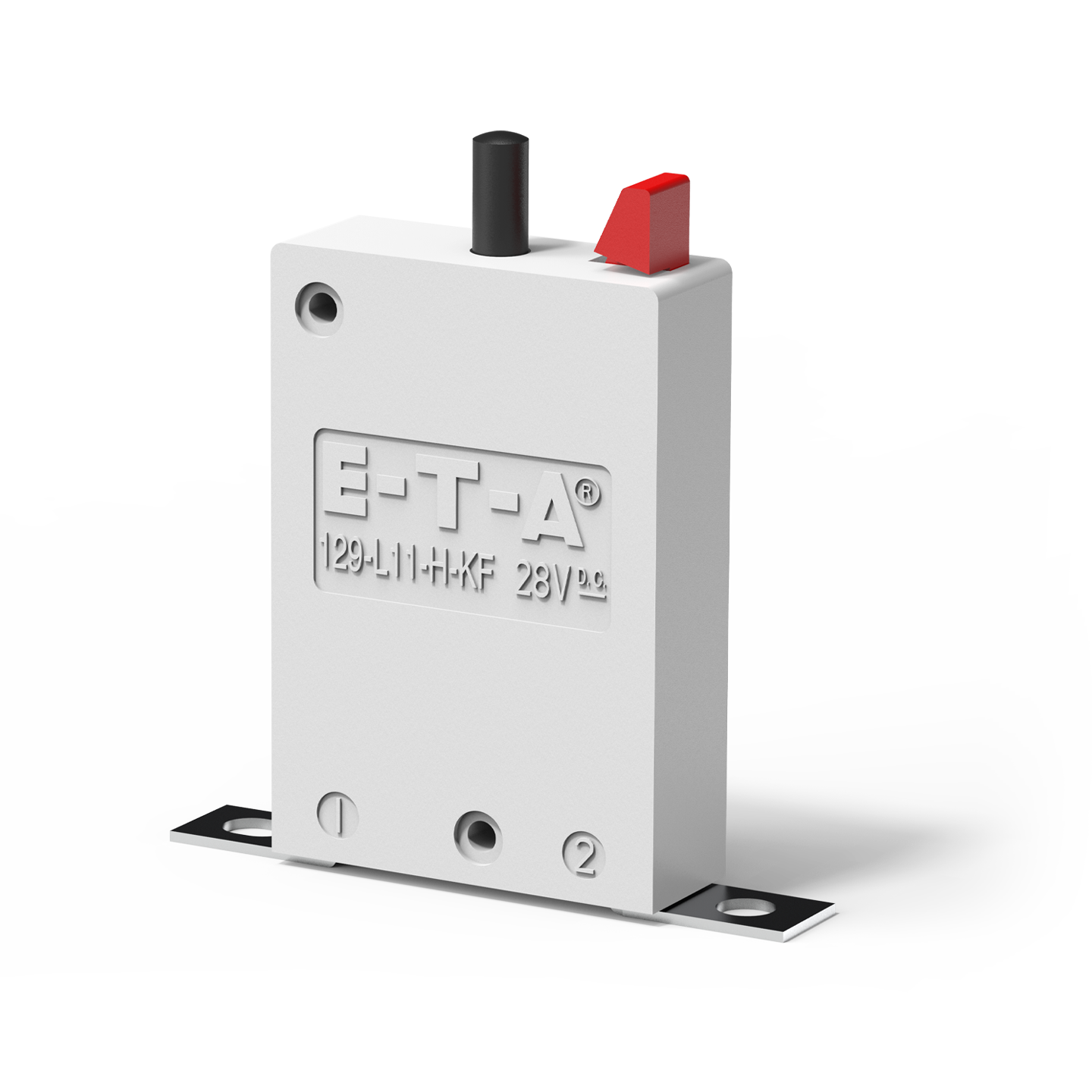

Tipo: 129-L11-H-KF

Descripción

Single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism and separate manual release (M-type TO CBE to EN 60934). Designed for bolt-on mounting with terminal block type 83-P10.

Datos técnicos

Datos técnicos

Voltage rating
  • DC 28 V (AC 250 V upon request)
  • UL: AC 250 V
  • UL: DC 50 V
Current ratings de 3 A hasta 25 A
Number of poles single pole
Mounting method socket
Terminal design screw terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
Typical life 5,000 operations at 2 x IN
Interrupting capacity Icn 3...5 A: 20 x IN

6...25 A: 400 A
Certificates CSA, UL, BWB (VG 95345 part 9)

Aplicaciones

Aplicaciones

  • Automatización
  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
