Tipo 1610-H2

~ 40 mm

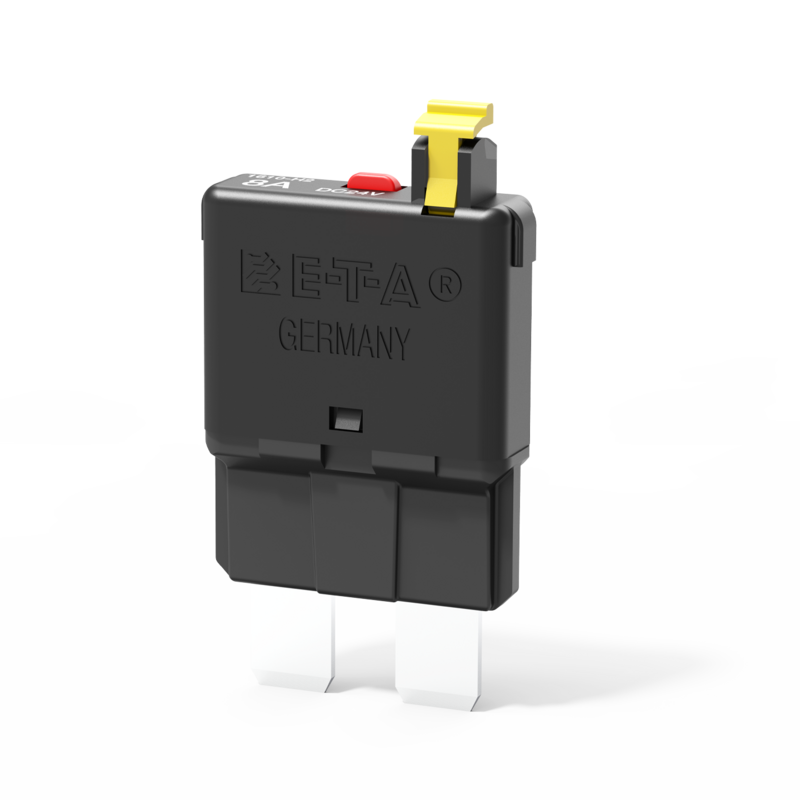

Typ 1610-H2 von E-T-A: Einpoliger, thermischer Kfz-Sicherungsautomat in sehr schmaler Bauform:

Descripción

Miniaturised single pole press-to-reset cycling trip free thermal circuit breaker designed for automotive fuse block installation.

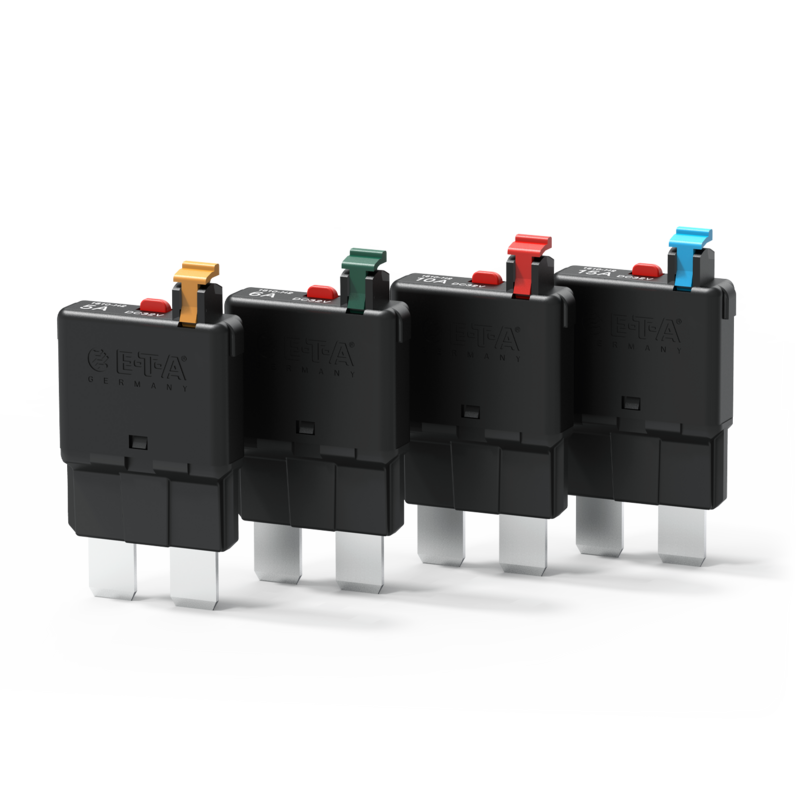

Extends the benefits of circuit breaker performance and convenience to applications which are cost critical. Colour-coded manual release buttons available.

Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses).

Datos técnicos

Voltage rating	DC 32 V
Current ratings	de 5A hasta 30 A
Number of poles	single pole
Mounting method	socket
Terminal design	blade terminals
Actuation	manual release push button
Auxiliary contacts	without auxiliary contacts
Water splash protection	without water splash protection
Illumination	with illumination
Typical life	300 operations at <= 50 A
Interrupting capacity I_cn	>= 3 operaciones de rotura a 150 A, o >= 1 operación de rotura a 2.000 A
Certificates	UL 1500

Accesorios

Número de pedido	Descripción
12-P10/-J20/-A10	Zócalo
X21058801-04	Puentes conectores bus -P10 01 = 1,5 mm² marrón 02 = 2,5 mm² negro 03 = 2,5 mm² rojo 04 = 2,5 mm² azu
X21115701/02	Barra colectora para zócalo de montaje 01 = con borne 02 = sin borne

Número de pedido

Descripción

12-P10/-J20/-A10

Zócalo

X21058801-04

Puentes conectores bus -P10

01 = 1,5 mm² marrón

02 = 2,5 mm² negro

03 = 2,5 mm² rojo

04 = 2,5 mm² azu

X21115701/02

Barra colectora para zócalo de montaje
