Tipo 2-5700

~ 79 mm

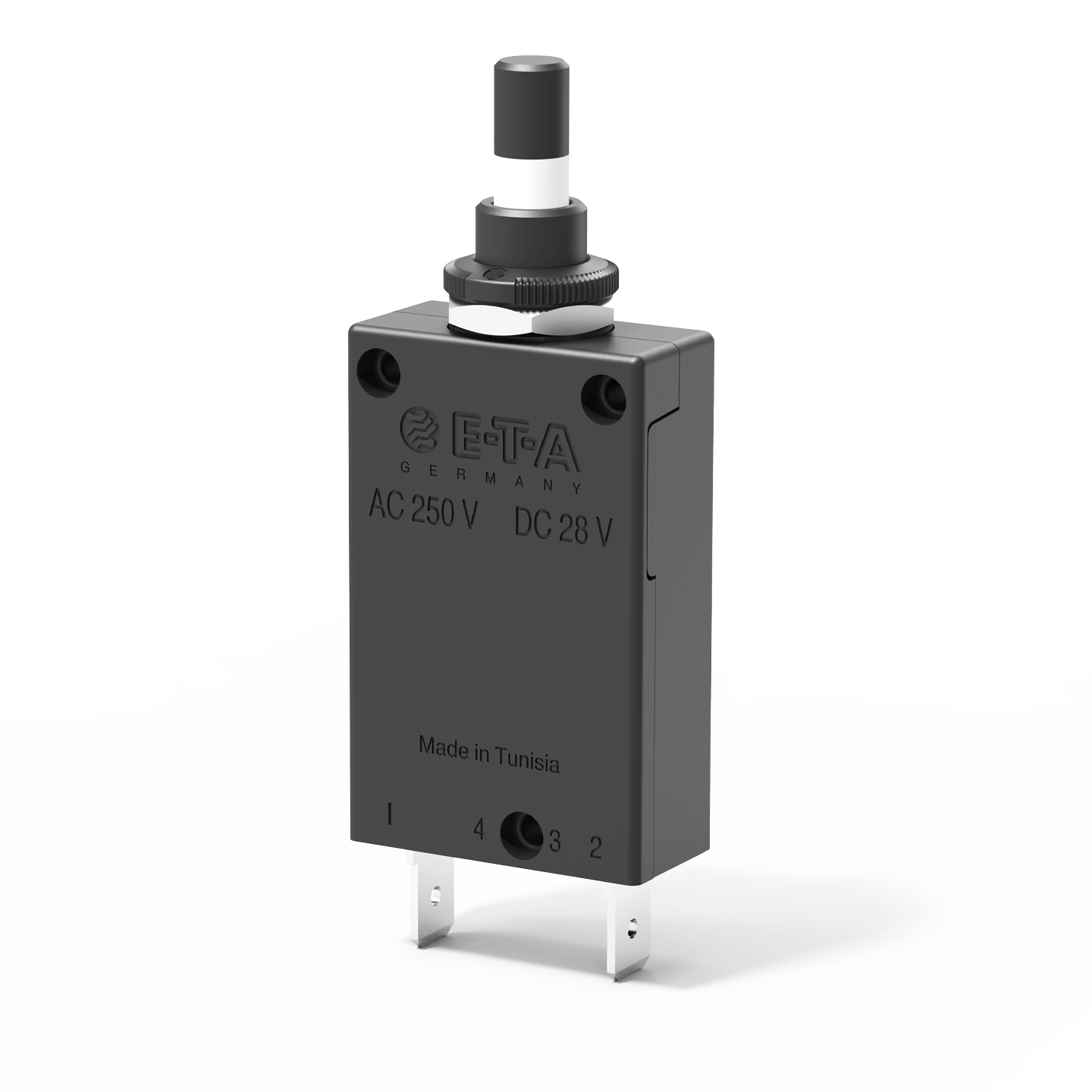

Typ 2-5700 von E-T-A: Einpoliger, thermischer Schutzschalter mit verschiedenen Montagemöglichkeiten.

Descripción

Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism. Type 2-5700 can be supplied as a push-push switch/circuit breaker (R-type TO CBE to EN 60934 in press-to-reset configuration; S-type with push-push operation), threadneck panel mounting. Options include an additional unprotected circuit tap (-A3).

Approved to CBE standard EN 60934 (IEC 60934).

Datos técnicos

Voltage rating	AC 250 V DC 28 V UL/CSA: DC 50 V
Current ratings	de 0.05 A hasta 25 A
Number of poles	single pole
Mounting method	threadneck
Terminal design	blade terminals screw terminals
Actuation	push button
Auxiliary contacts	without auxiliary contacts
Water splash protection	with water splash protection without water splash protection
Illumination	with illumination
Typical life	0.05...16 A 5,000 operations at 2 x I_N, inductive 17...25 A 5,000 operations at 2 x I_N, resistive
Interrupting capacity I_cn	0.05...2.5 A: 8 x I_N 3...5 A: 20 x I_N 6...12 A: 200 A (higher interrupting capacity available to special order) 13...25 A: 400 A
Certificates	VDE, CSA, UL, SEV, CCC

Accesorios

Número de pedido	Descripción
X20079802	Cubierta antisalpicaduras, transparente
X20079901	Cubierta antisalpicaduras, transparente
X20080103	Cubierta antisalpicaduras negra con junta tórica
X20080108	Cubierta antisalpicaduras transparente con junta tórica
X20129601	Cubierta antisalpicaduras negra sin junta tórica
X20129603	Cubierta antisalpicaduras negra con junta tórica
X21066305	Cubierta antisaplicaduras transparente con tuerca moleteada
X21073901	Cubierta antisalpicaduras con tuerca hexagonal
Y30011602	Tuerca hexagonal
Y30019201	Tuerca hexagonal
Y30206501	Tuerca moleteada
Y30356301	Barra colectora
Y30711702	Tuerca moleteada
