Tipo 105

~ 47 mm

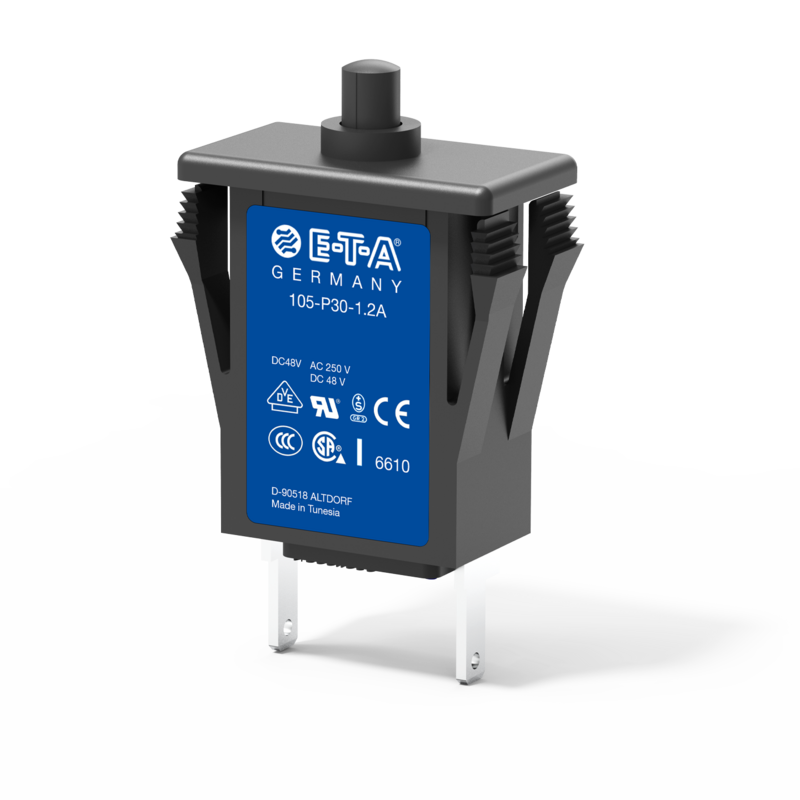

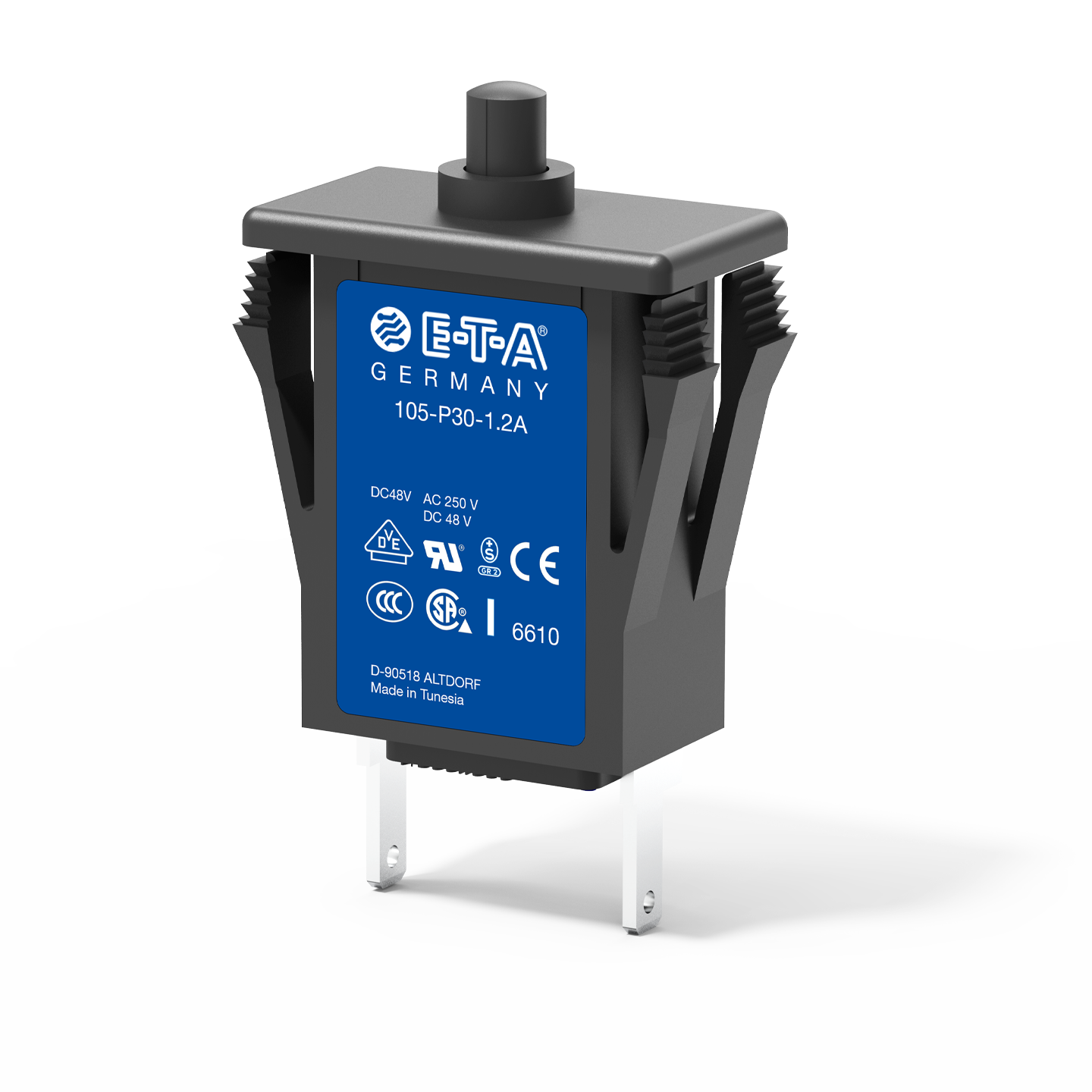

Typ 105 von E-T-A: Einpoliger, thermischer Schutzschalter in Kleinbauweise, wahlweise mit Handauslöser.

Descripción

Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934) snap-in type. Manual release facility optional.

Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140-F.

Datos técnicos

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
Current ratings de 0.05 A hasta 10 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
Typical life 0.05...5 A: 3,000 operations at 2 x IN, inductive

with -H: 2,000 operations at 1 x IN, inductive

6...8 A: 500 operations at 2 x IN, inductive

10 A: 50 operations at 2 x IN, inductive
Interrupting capacity Icn 0.05...8 A: 6 x IN (AC)

0.05...10 A: 6 x IN (DC)
Certificates VDE, SEV, CSA, UL

Accesorios

Número de pedido Descripción
X20128501

Cubierta antisalpicaduras transparente

Y30711702

Tuerca moleteada

Y30019201

Tuerca hexagonal

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
  • Técnica médica
