Tipo 1410-L1

~ 25 mm

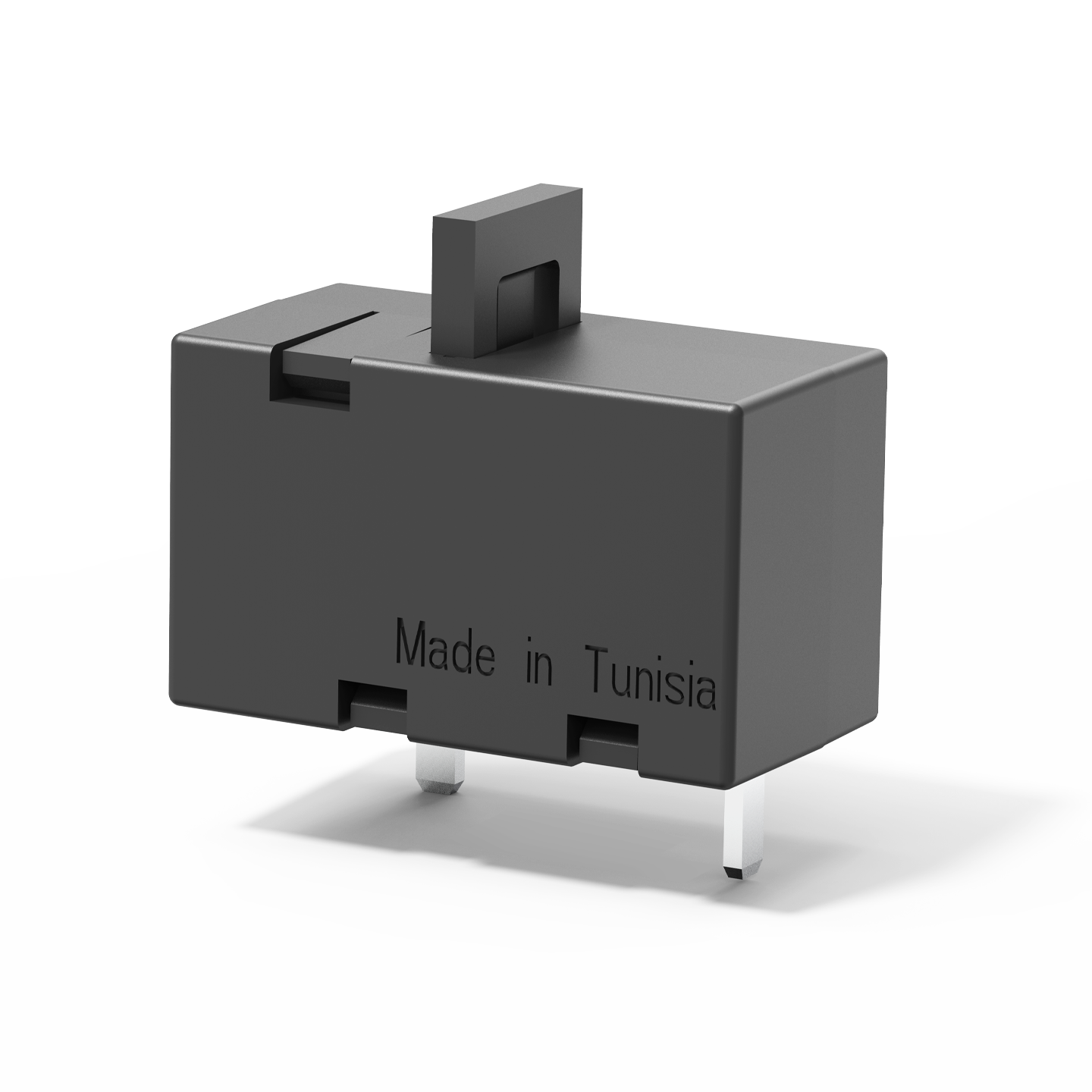

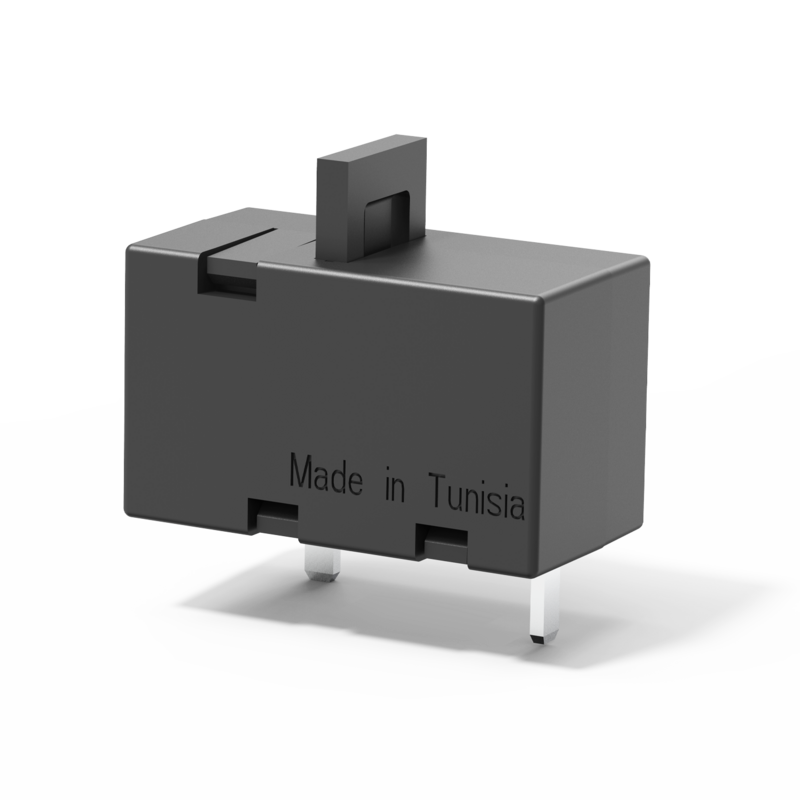

Typ 1410-L1 von E-T-A: Einpoliger Schutzschalter in Kleinbauweise. Sehr flinke Kennlinie durch spezielles Auslösesystem

Descripción

Ficha técnica

Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934). Miniaturised construction minimises PCB real estate required. Largely temperature-insensitive.

Datos técnicos

Voltage rating
  • AC 240 V
  • DC 28 V (DC 50 V a petición)
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings de 0.63 A hasta 10 A
Number of poles single pole
Mounting method integral mounting
printed circuit board
Terminal design solder terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
Typical life 500 operations at 2 x IN, AC, resistive

500 operations at 2 x IN, DC, inductive
Interrupting capacity Icn 0.63...2 A: 12 x IN

2.5...8 A: 8 x IN AC, max 50 A

10 A: 6 x IN AC

3.15...10 A: 10 x IN DC
Certificates VDE, CSA, UL

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
  • Técnica médica
