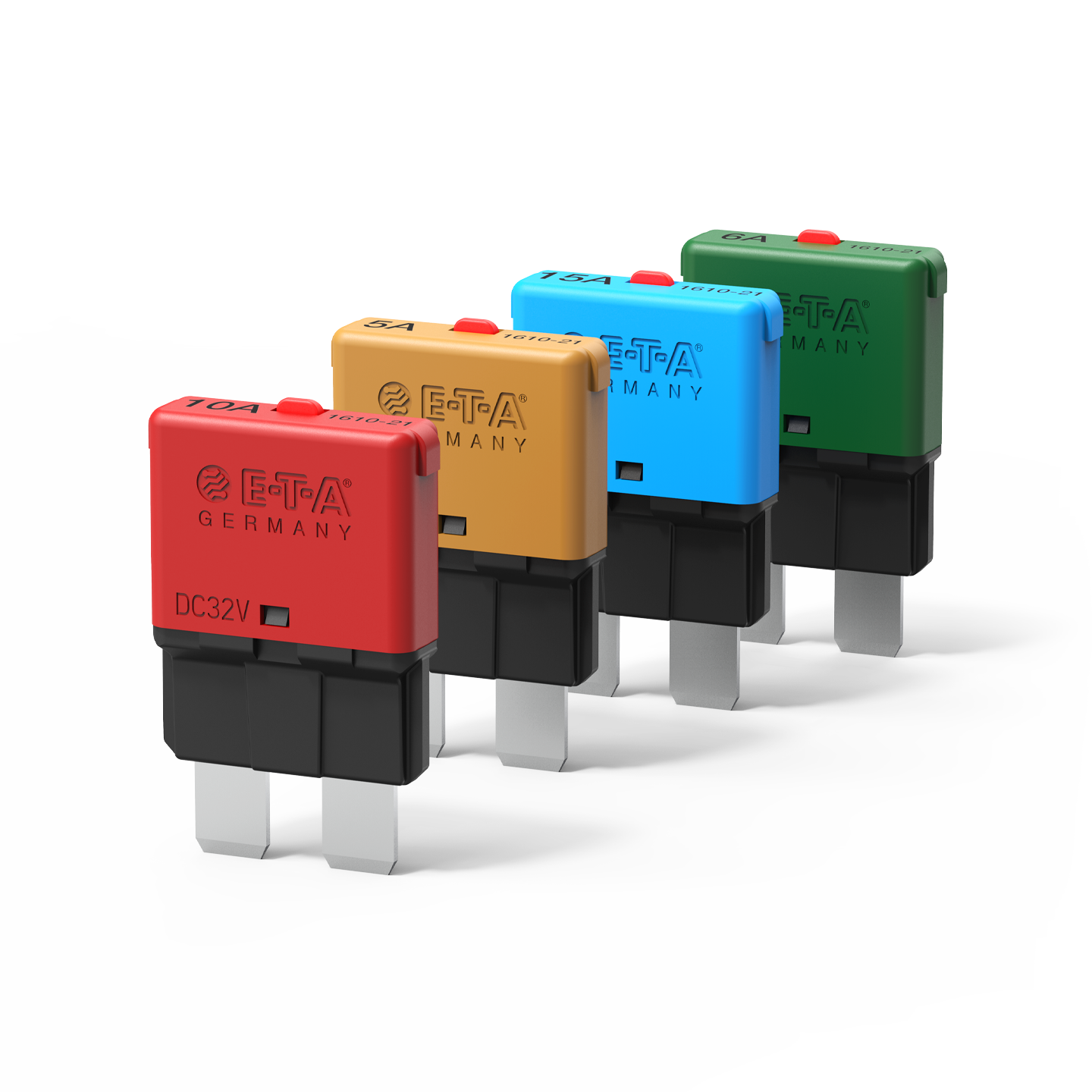

Single pole, thermal miniaturised circuit breaker designed for automotive applications
Miniaturised single pole press-to-reset cycling trip free thermal circuit breaker designed for automotive fuse block installation.
Extends the benefits of circuit breaker performance and convenience to applications which are cost critical. Colour-coded housing caps available.
Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses).
Voltage rating |
|
---|---|
Current ratings |
de 5 A hasta 30A |
Number of poles | single pole |
Mounting method | socket |
Terminal design | blade terminals |
Actuation | push button |
Auxiliary contacts | without auxiliary contacts |
Water splash protection | without water splash protection |
Illumination | with illumination |
Typical life | 300 operations at <= 50 A |
Interrupting capacity Icn |
>= 3 break operations at 150 A, or >= 1 break operation at 2,000 A |
Certificates | UL 1500 |
Número de pedido | Descripción | |
---|---|---|
12-P10/-J20/-A10 |
Zócalo |
|
X21058801-04 |
Puentes conectores bus -P10 01 = 1,5 mm2 marrón
02 = 2,5 mm2 negro
03 = 2,5 mm2 rojo
04 = 2,5 mm2 azu |
|
X21115701/02 |
Barra colectora para zócalo de montaje
01 = con borne
02 = sin borne |
Datasheet & Explanations
