Tipo: 1140-G15

Descripción

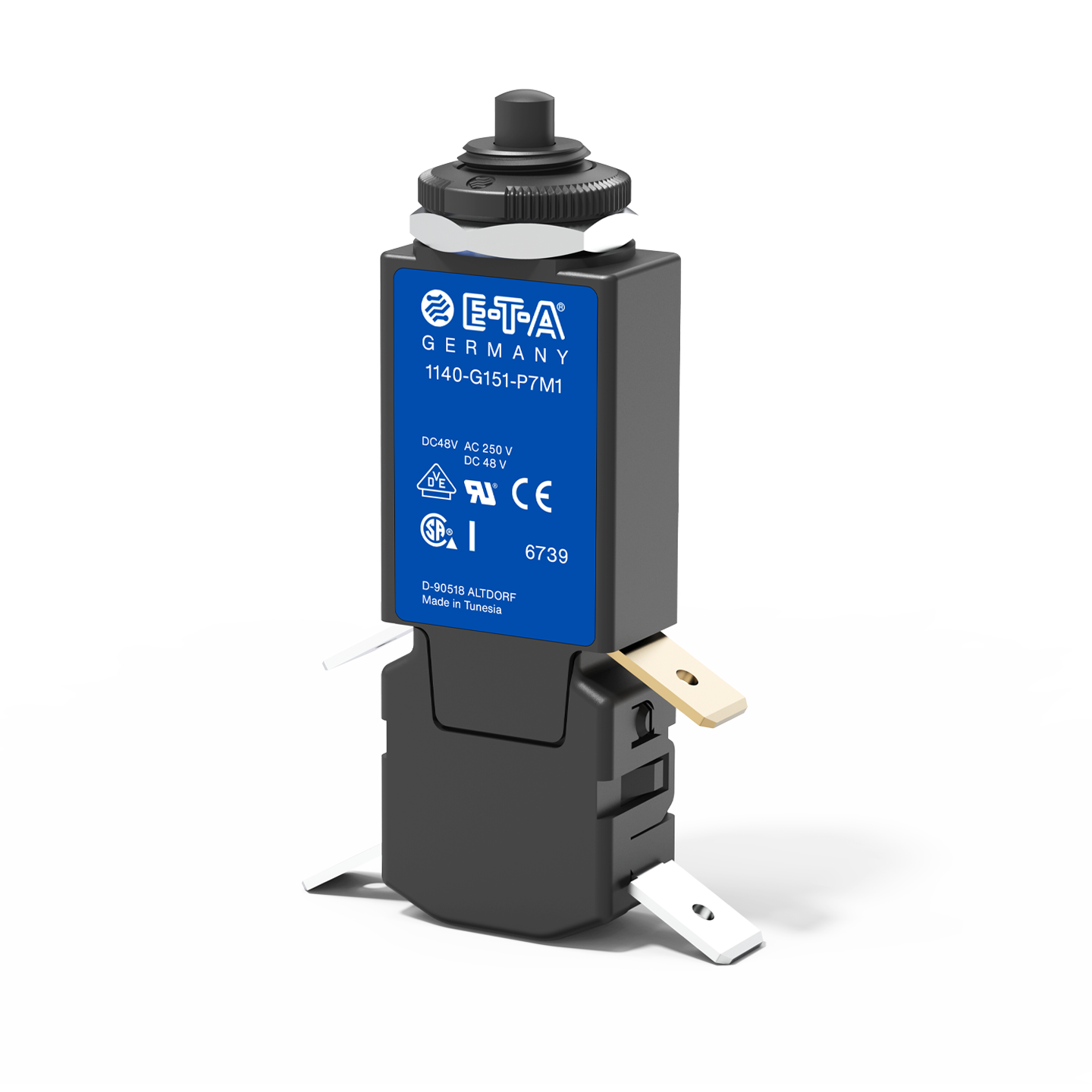

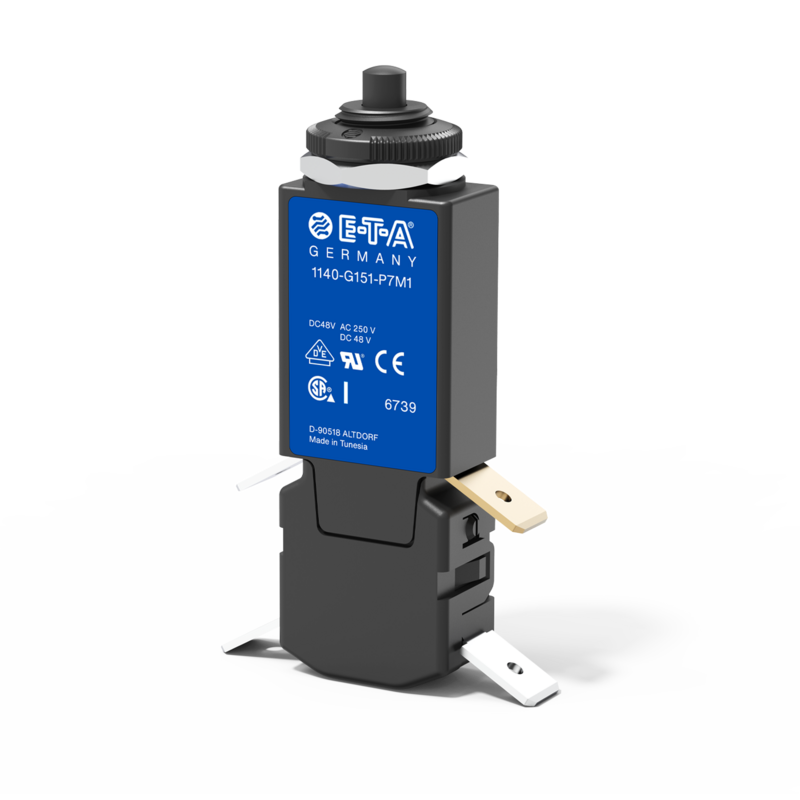

Miniaturised double pole thermal circuit breaker with push-to-reset tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934). Threadneck panel mounting. Suitable for line and neutral switching - the thermal actuator operating on one pole simultaneously opens both poles under overload conditions.

Approved to CBE standard EN 60934 (IEC 60934).

Datos técnicos

Datos técnicos

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings de 0.05 A hasta 16 A
Number of poles double pole
Mounting method threadneck
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
Typical life 0.05...3 A: 3,000 operations at 2 x IN, resistive

3.5...8 A: 1,000 operations at 2 x IN, resistive

10...16 A: 100 operations at 2 x IN, inductive
Interrupting capacity Icn 0.05...3 A: 6 x IN

3.5...8 A: 8 x IN

9...16 A: 120 A
Certificates VDE, CSA, UL

Accesorios

Accesorios

Número de pedido Descripción
X 201 285 01 Cubierta antisalpicaduras transparente
Y 300 192 01 Tuerca hexagonal
Y 307 117 02 Tuerca moleteada

Aplicaciones

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Técnica médica
