Type: EPR10

Descripción

162,4 mm

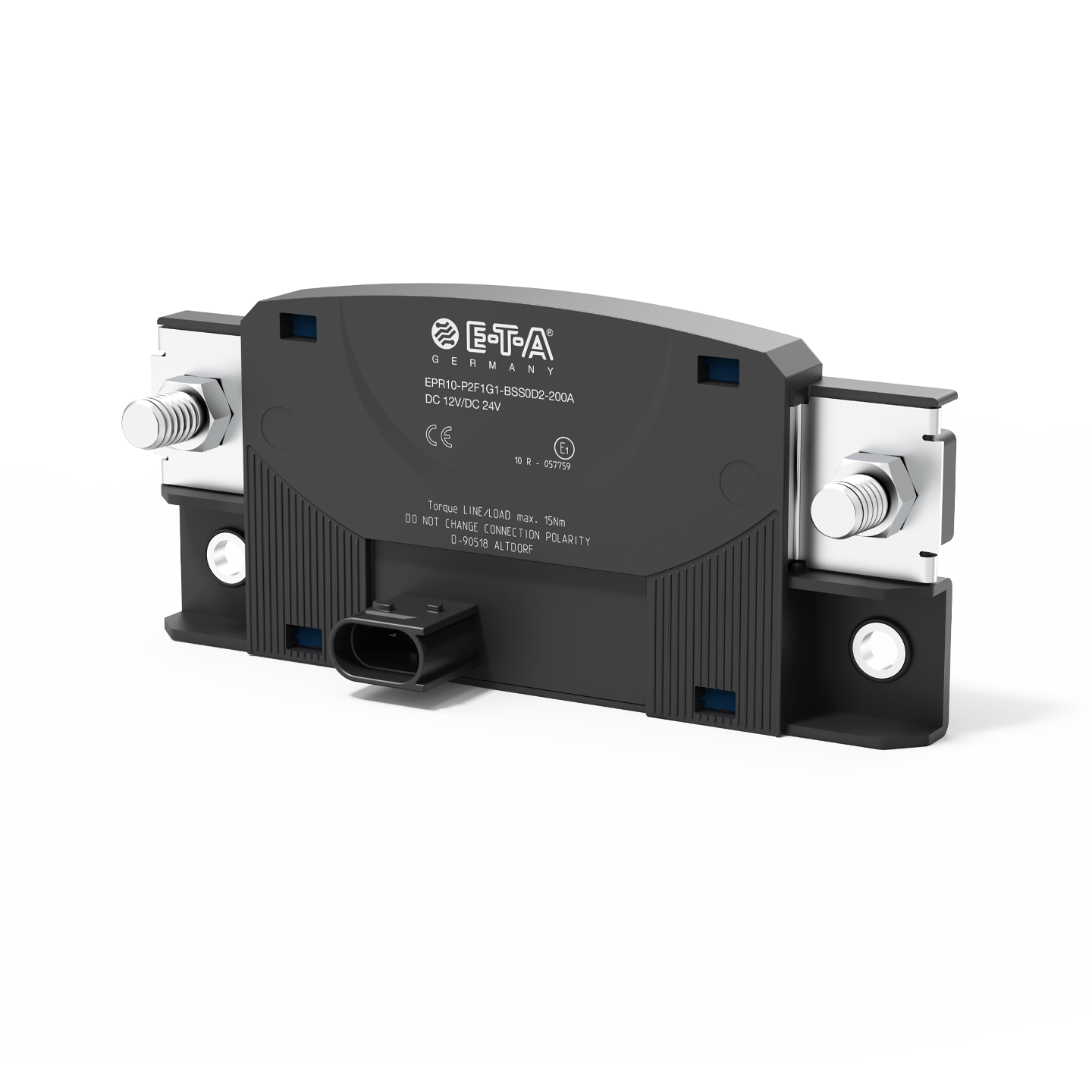

The electronic power relay EPR10 is a solid state relay for high continuous currents. It is suitable for use in utility vehicles and special vehicles where reliability and functional safety are at a premium. At DC 24 V, the EPR10 allows a continuous load of up to 200 A.

The EPR10 is available in two different versions: EPR10-N is a relay and has no protective function. Two performance classes are available (up to 100 A and up to 200 A). EPR10-P is a protective relay and monitors both the load current and the thermal load. In the event of a critical condition, the device will automatically interrupt the circuit and will issue a group fault signal.

Note: We are preparing a separate version for applications where the current can flow in both directions. The present EPR10 design only allows one current direction.

Descargas

Datos técnicos

Datos técnicos

Signal outputs Reverse polarity
protection without
Switch type "low side switch”
Voltage 0 ... 32 V DC
Max. leakage current 20 µA
Max. load current 2 A
Terminal design LOAD:
M8 studs

Control circuit:
Tyco HDSCS 3-pole part number 1-1418448-1
Pin assignment:
1 = GND (chassis)
2 = SF (output group fault)
3 = IN (control input)
Voltage rating of load
  • DC 12 V/ DC 24 V
  • DC 24 V
Number of poles
  • 1-pole
Approvals The electronic power relay for high continuous currents
