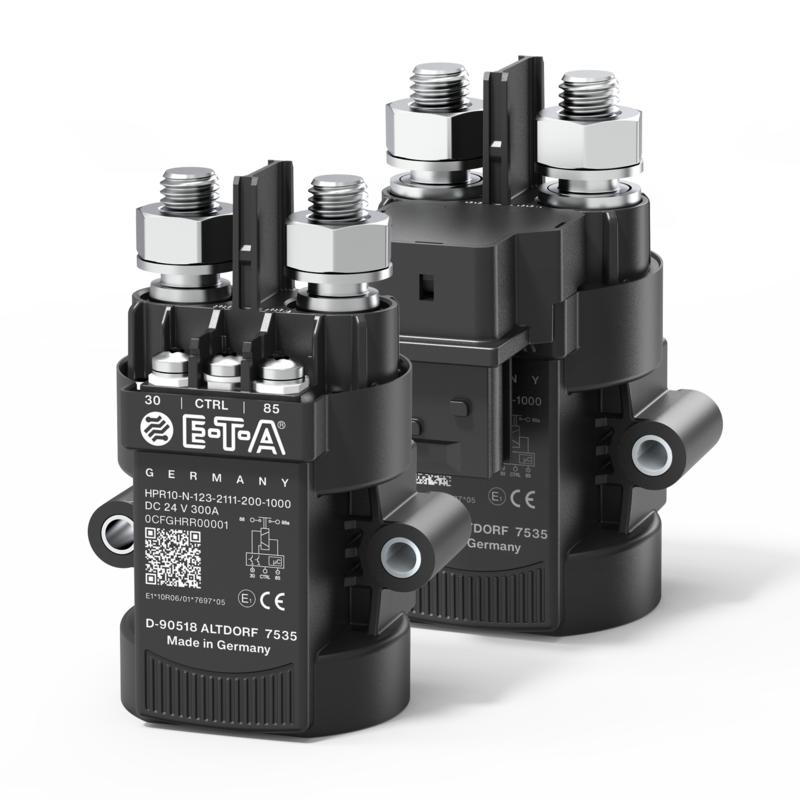

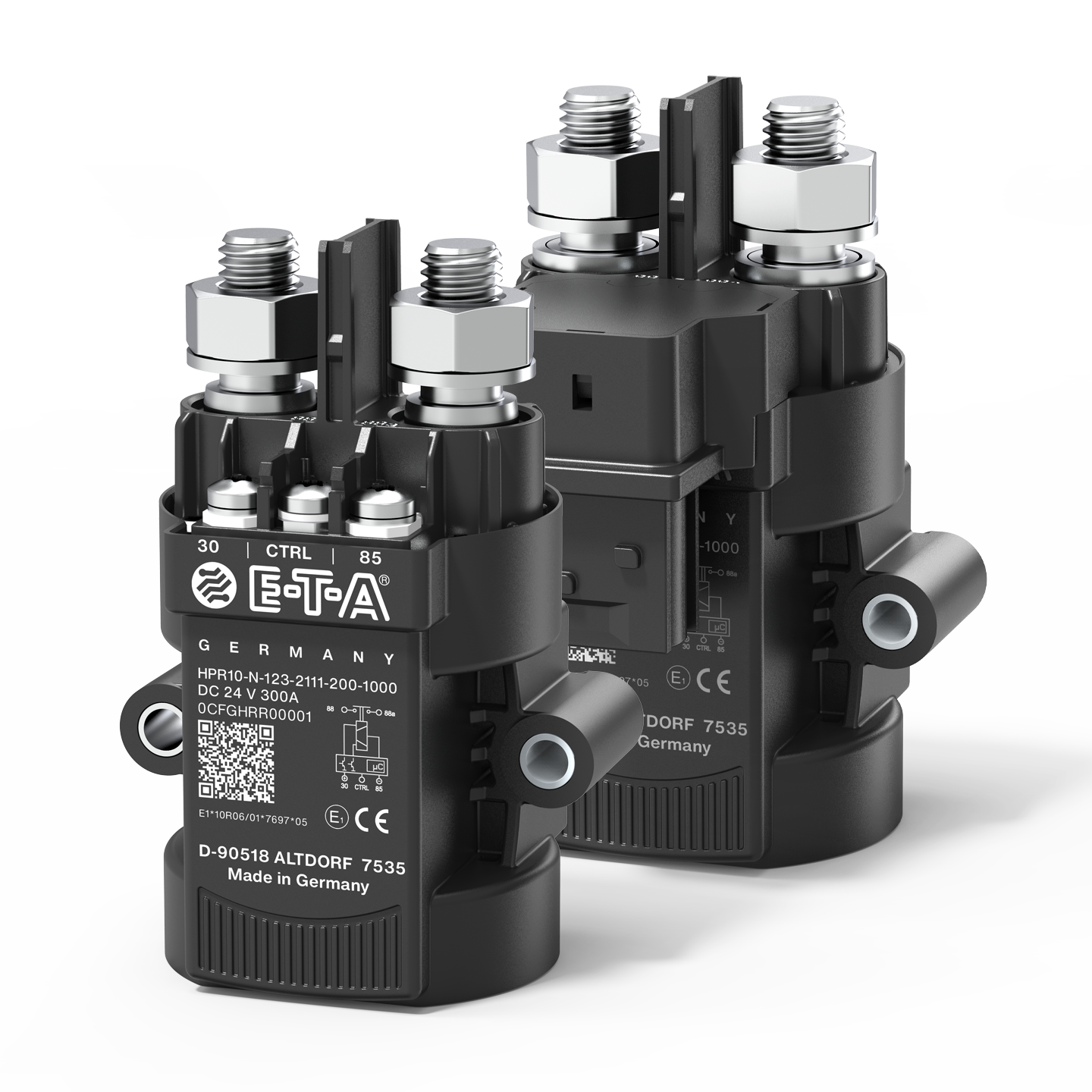

Tipo: HPR10

Descripción

91,3 mm

The new HPR10 power relay was designed for the use in trucks, buses and commercial vehicles. We are exploring new horizons by combining an electro-mechanical switching system with the intelligence of a micro-controller in the same space and offer our customers the smartest power relay yet on the market.

Functions such as follow-up control, ON delay, variable control signal recognition and automatic load disconnection, e.g. in the event of undervoltage, make the HPR10 a high-end relay. Many functions which, up to now, had only been possible by means of accessing the vehicle’s control gear are now covered by the HPR10.

As the HPR10 features the same enclosure design as the MPR10, the benefits of this product group materialise.

Datos técnicos

Datos técnicos

Voltage rating of load DC 24 V
Operating voltage of SSRPC DC 18...36 V
Current rating of load
Number of poles 1-pole
Physical isolation of load circuit (after electronic overload disconnection)
Temperature range
Certificates KBA: E1 to ECE R10

Aplicaciones

Aplicaciones

  • Automatización
  • Automóviles
  • Embarcaciones & vehículos
  • Sector de automoción
  • Vehículos ferroviarios
  • Vehículos industriales

Downloads

Flyer 312.8 KB
