Tipo E-1048-S6xx
Descripción

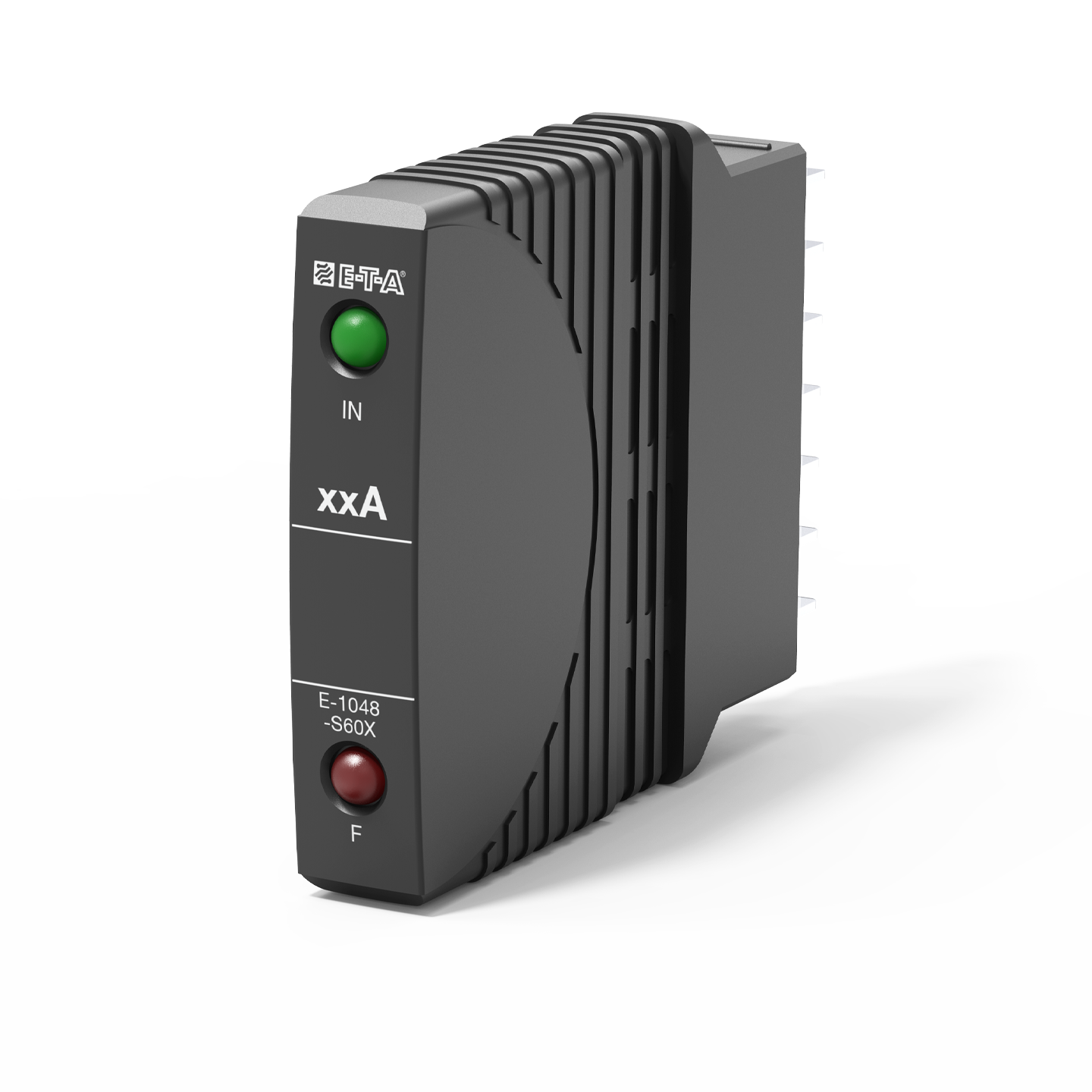

The E-T-A Solid State Remote Power Controller (SSRPC) E-1048-S6xx is an opto decoupled transistorised switching device providing both protection and signalisation.
It may be used wherever safe switching and protection of resistive, inductive or lamp loads in DC voltage systems is required.
Datos técnicos
Voltage rating of load | DC 24 V |
---|---|
Operating voltage of SSRPC | DC 18...36 V |
Number of poles | 1-pole |
Signal outputs | fault indication via opto coupler (N/O contact) |
Display |
ON indication fault indication |
Mounting method |
rail to EN 50 022-35x7.5 when used with socket 17-P10-Si (accessory) |
Accesorios
Número de pedido | Descripción | |
---|---|---|
17-P10-Si/-20025 |
Zócalos |
|
17-P70-Si/-20025 |
Zócalos |
|
23-P10-Si |
Zócalos |
|
63-P10-Si |
Zócalo |
|
X20040901 |
Adaptador de zócalo 16 para montaje en carril normalizado |
|
X21058801-04 |
Puentes conectores bus -P10 01 = 1,5 mm2 marrón
02 = 2,5 mm2 negro
03 = 2,5 mm2 rojo
04 = 2,5 mm2 azu |
|
X21115701/02 |
Barra colectora para zócalo de montaje
01 = con borne
02 = sin borne |
|
Y30382401 |
Tubo flexible aislante para barra colectora |
|
Y30872901 |
Clip de fijación |
Aplicaciones
- (Industria siderúrgica)
- Automatización
- Construcción de máquinas
- Vehículos industriales
