XR38
El módulo de conectores IEC de potencia C14 (con/sin filtro de línea) para interruptores automáticos reajustables

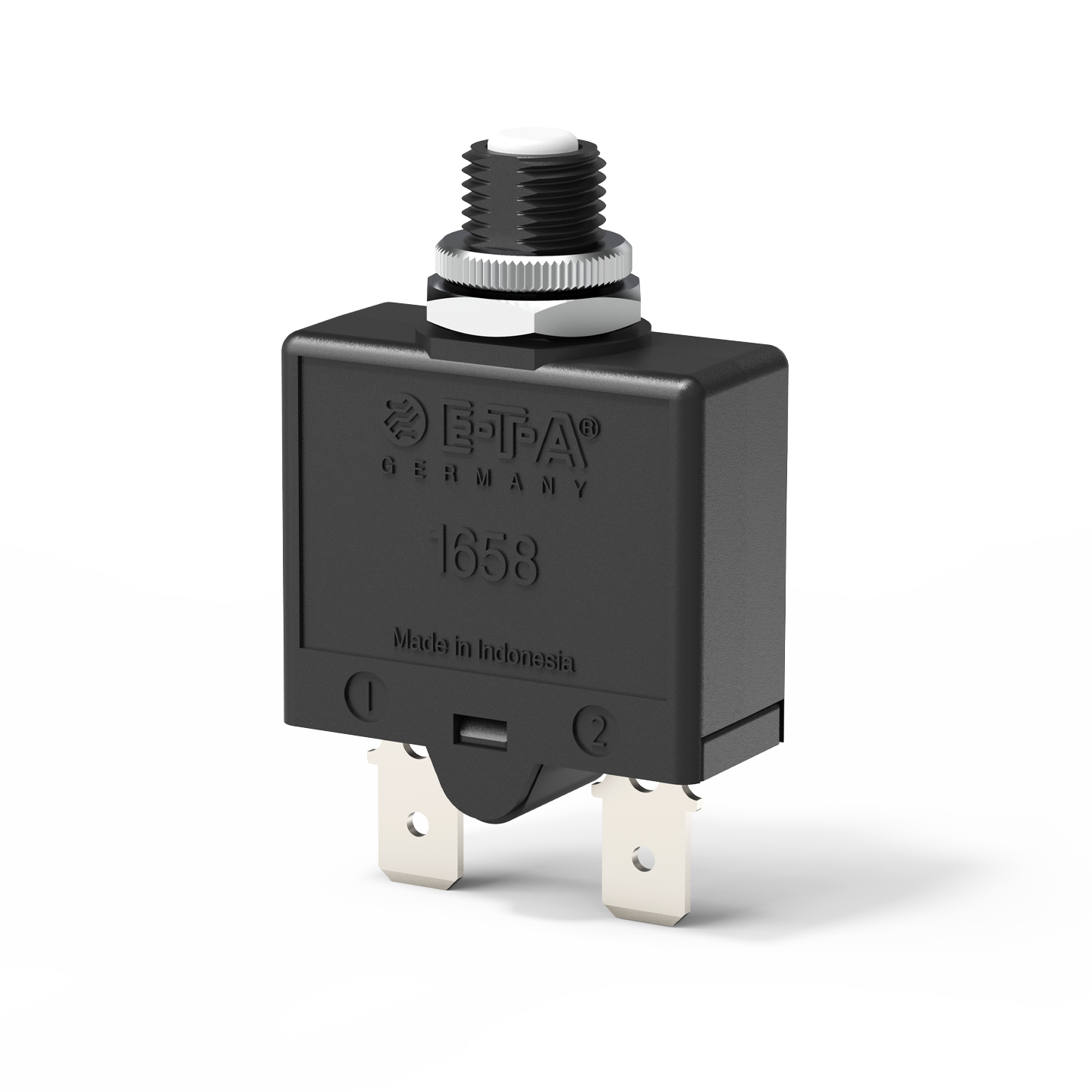

Tipo 1658
~ 58 mm
Descripción
Very cost effective design to meet international requirements. No exposed metal parts which are, or could become, current-carrying except for terminals. R-type TO CBE to EN 60934.
- Manual reset, cycling trip free mechanism
- Extremely small and lightweight
- UL, CSA, VDE and EN 60934 (IEC 60934) approved
Datos técnicos
| Voltage rating |
|
|---|---|
| Current ratings |
de 5 A hasta 30 A |
| Number of poles | single pole |
| Mounting method |
flange threadneck |
| Terminal design |
blade terminals screw terminals |
| Actuation | push button |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination | with illumination |
| Typical life |
5...16 A 1,000 operations at 2 x IN, inductive 17...25 A 1,000 operations at 2 x IN, resistive |
| Interrupting capacity Icn |
5...7 A: 180 A 8...30 A: 200 A |
| Certificates | VDE, UL |
Accesorios
| Número de pedido | Descripción | |
|---|---|---|
| X20079901 |
Cubierta antisalpicaduras, transparente |
|
| X20128501 |
Cubierta antisalpicaduras transparente |
|
| X22211901/02 |
Cubierta antisalpicaduras transparente 01 = corta
02 = larga |
|
| Y30019201 |
Tuerca hexagonal |
|
| Y30105902 |
Presionar para liberar placa |
|
| Y30229403 |
Tuerca moleteada |
|
| Y30229501 |
Tuerca hexagonal |
|
| Y30273201 |
Presionar para liberar placa |
|
| Y30320001 |
Tuerca de montaje |
|
| Y30667101 |
Tuerca de montaje |
|
| Y30711702 |
Tuerca moleteada |
Aplicaciones
- Embarcaciones & vehículos
- Herramientas, electrodomésticos y aparatos de jardinería
- Luminotecnia
- Rango de tensión Minus DC 28 V
- Técnica médica
