Tipo 1180
Descripción

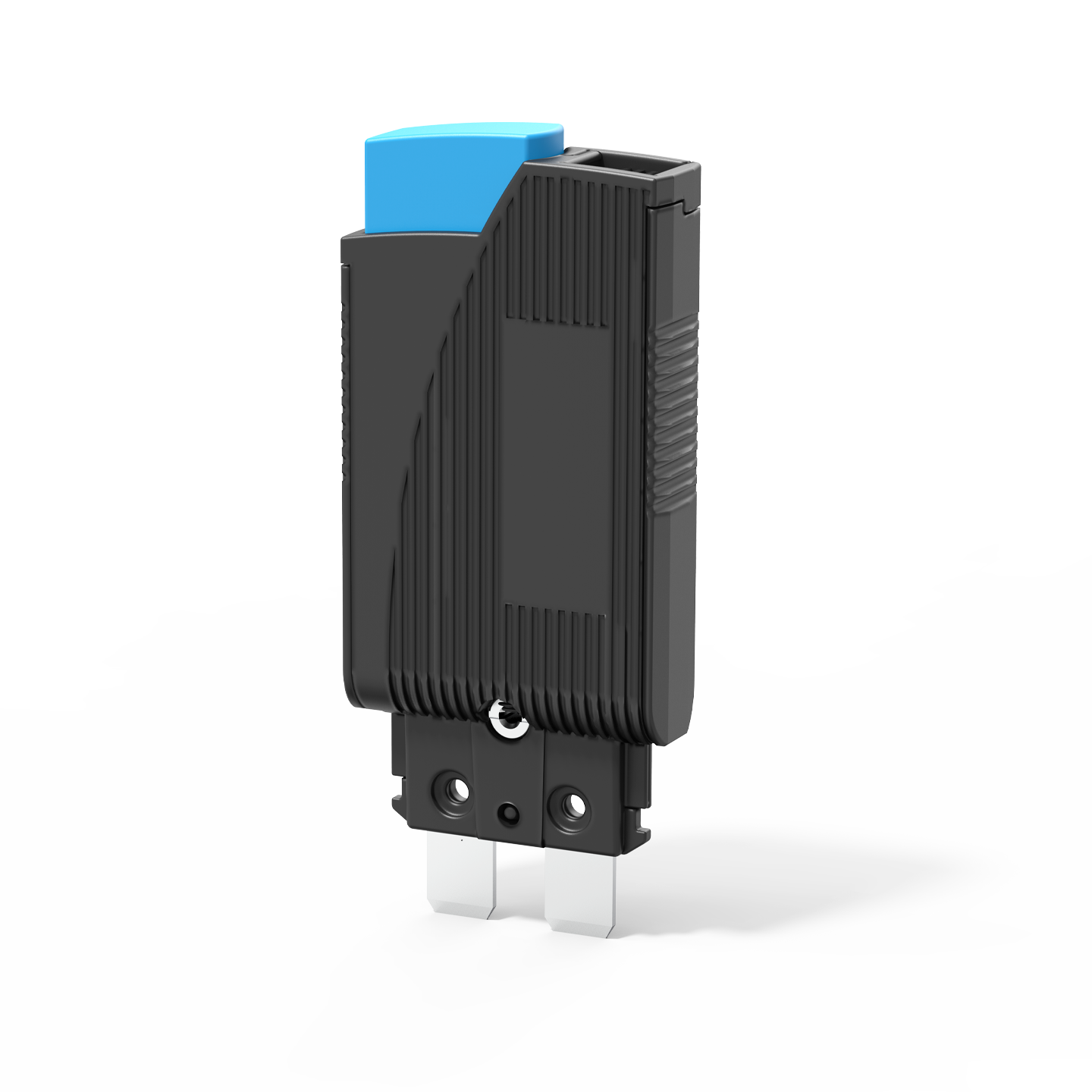

Miniaturised single pole thermal circuit breaker with switching function optional (push-push actuation). Reliable snap-acting and trip-free mechanism. Approved to CBE standard EN/IEC 60934. S type, TO.
Blade terminals fitting into sockets for rail mounting.
Datos técnicos
Voltage rating |
|
---|---|
Current ratings |
de 0.1 A hasta 10 A |
Number of poles | single pole |
Mounting method |
rail mounting socket |
Terminal design | blade terminals |
Actuation | push button |
Auxiliary contacts | without auxiliary contacts |
Water splash protection | without water splash protection |
Illumination | with illumination |
Typical life |
6,000 operations at 1 x IN (resistive) 3,000 opeations at 1 x IN (inductive) 500 operations at 2 x IN inductive) |
Interrupting capacity Icn |
0.1…5 A 6 x IN AC 250 V, DC 65 V 6…10 A 8 x IN AC 250 V, DC 65 V 0.1…0,7 A 25 x IN DC 30 V 0.8…6 A 10 x IN DC 30 V 7…10 A 20 x IN DC 30 V |
Certificates | VDE, UL, CSA |
Accesorios
Número de pedido | Descripción | |
---|---|---|
X22223201 |
Bus |
|
X22223301 |
Bloque de bornes para montaje en carril normalizado (DIN) |
|
X22223302 |
Bloque de bornes para montaje en carril normalizado DIN con LED DC 24 V |
|
X22231502 |
Bloque de bornes para montaje en carril normalizado DIN con LED DC 24 V |
|
X22231601 |
Bloque de bornes para montaje en carril normalizado (DIN) |
|
X22231701 |
Borne de alimentación con bornes de resorte |
|
X22231801/02 |
Puente (jumper)
01 = bipolar
02 = tripolar |
|
Y30737301 |
Barreras aislantes |
|
Y30737401 |
Etiqueta |
|
Y30737501 |
Etiqueta |
|
Y30750701 |
Cubierta |
|
Y30750801 |
Etiqueta |
Aplicaciones
- Aeronáutica
- Automatización
- Construcción de máquinas
- Industria alimentaria y farmacéutica
- Industria química, petroquímica y del gas
- Luminotecnia
- Rango de tensión Minus DC 28 V
- Rango de tensión Minus DC 48 V
- Rango de tensión Minus DC 72 V
- Telecomunicaciones
