Tipo 1410-G1

~ 28 mm

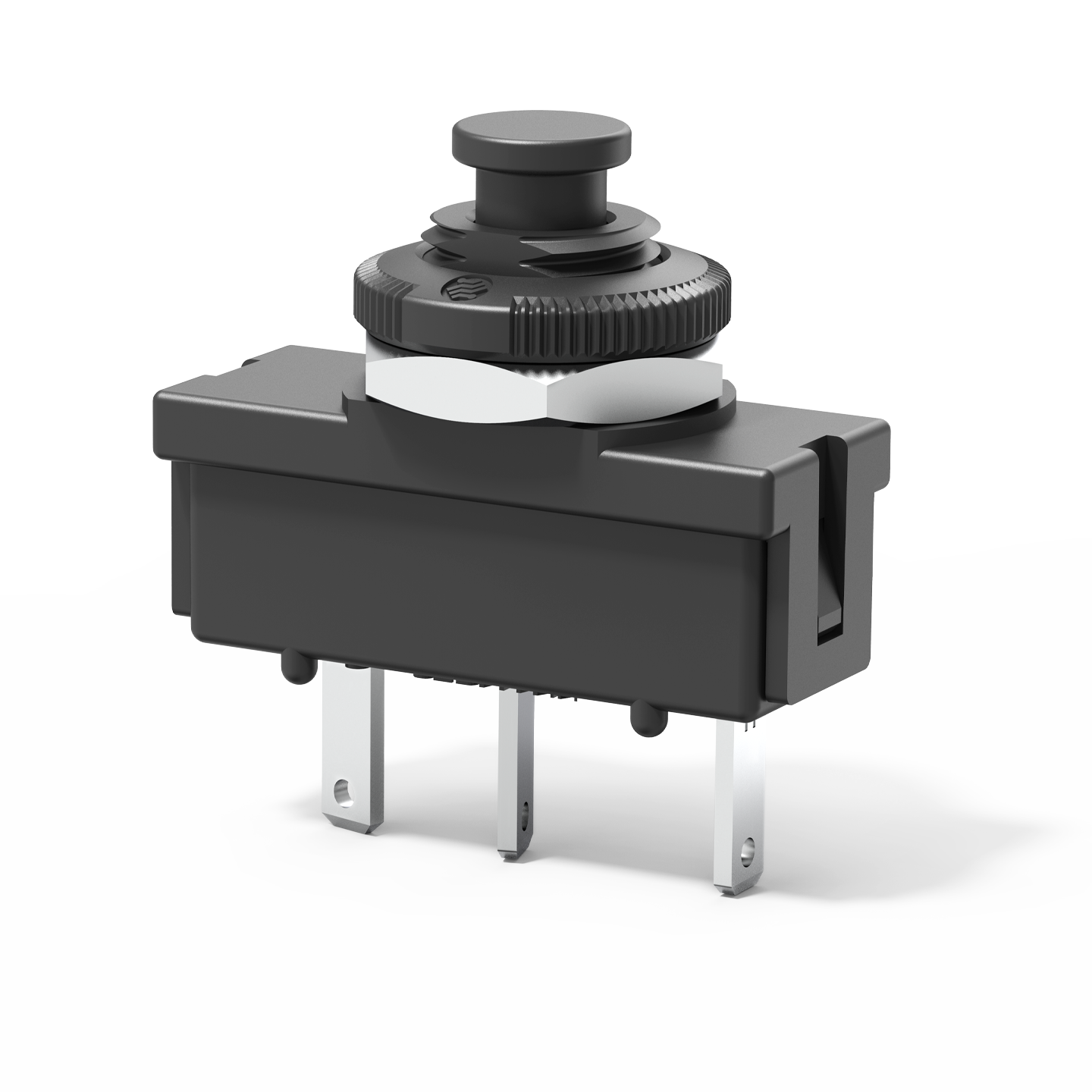

Typ 1410-G1 von E-T-A: Einpoliger Schutzschalter in Kleinbauweise. Sehr flinke Kennlinie durch spezielles Auslösesystem.

Descripción

Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934). Single hole threadneck mounting. Type 1410-G1 features changeover contacts suitable for providing status output signals. Largely temperature-insensitive.

Datos técnicos

Voltage rating
  • AC 240 V
  • DC 28 V (DC 50 V upon request)
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings de 0.63 A hasta 10 A
Number of poles single pole
Mounting method threadneck
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
Typical life 500 operations at 2 x IN, AC, resistive

500 operations at 2 x IN, DC, inductive
Interrupting capacity Icn 0.63...2 A: 12 x IN

2.5...8 A: 8 x IN AC, max 50 A

10 A: 6 x IN AC

3.15...10 A: 10 x IN DC
Certificates VDE, CSA, UL

Accesorios

Número de pedido Descripción
Y30711702

Tuerca moleteada

Y30019201

Tuerca hexagonal

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
  • Técnica médica
