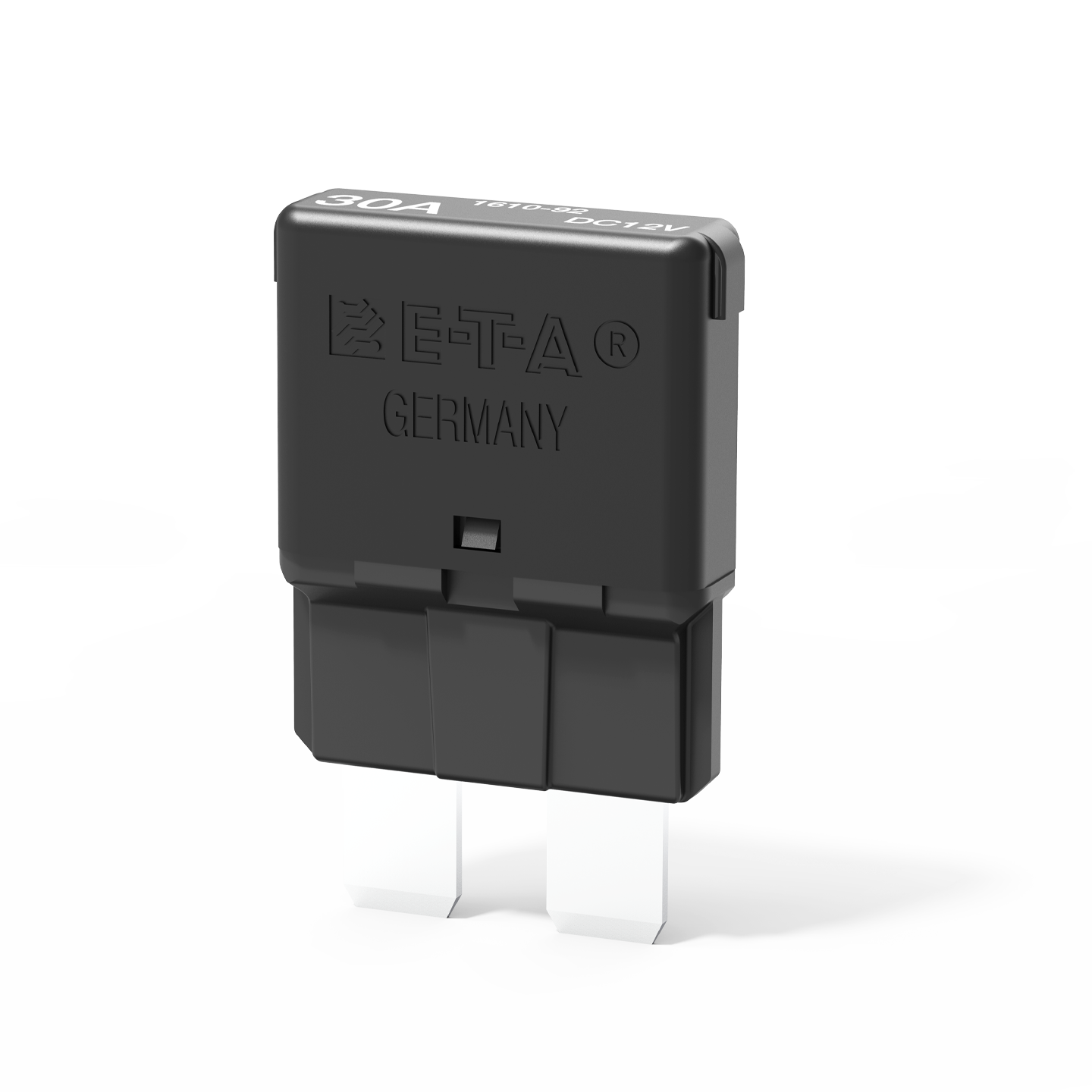

Tipo 1610-92

~ 30 mm
Typ 1610-92 von E-T-A: Einpoliger, thermischer Kfz-Sicherungsautomat in sehr schmaler Bauform.

Descripción

Miniaturised single pole autoreset cycling trip free thermal circuit breaker designed for automotive fuse block installation.

Extends the benefits of circuit breaker performance and convenience to applications which are cost critical.

Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses).

Datos técnicos

Voltage rating
  • DC 12 V
Current ratings de 5 A hasta 30A
Number of poles single pole
Mounting method socket
Terminal design blade terminals
Actuation without actuation
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
Typical life 300 operations at <= 50 A
Interrupting capacity Icn >= 3 break operations at 150 A, or

>= 1 break operation at 2,000 A
Certificates UL 1500

Accesorios

Número de pedido Descripción
12-P10/-J20/-A10

Zócalo

X21058801-04

Puentes conectores bus -P10

01 = 1,5 mm2 marrón



02 = 2,5 mm2 negro



03 = 2,5 mm2 rojo



04 = 2,5 mm2 azu

X21115701/02

Barra colectora para zócalo de montaje



01 = con borne



02 = sin borne

Aplicaciones

  • Automóviles
  • Embarcaciones & vehículos
  • Luminotecnia
  • Vehículos industriales
