Tipo 3140

~ 62 mm

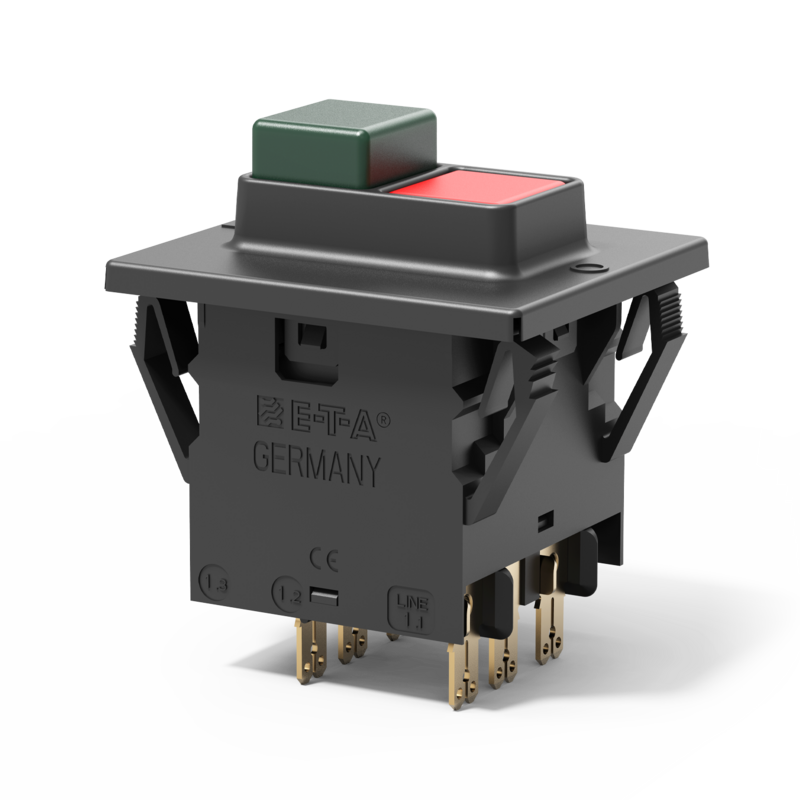

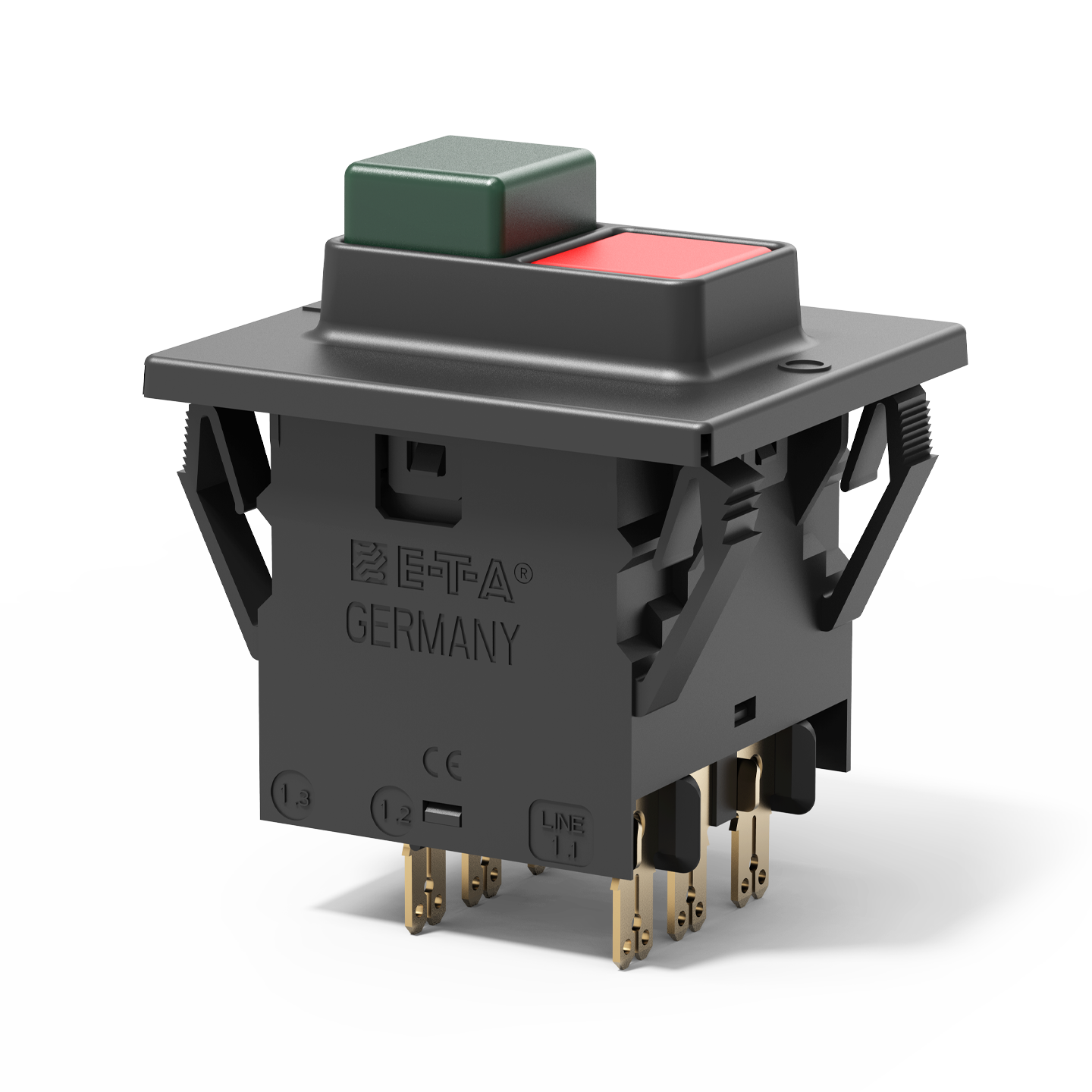

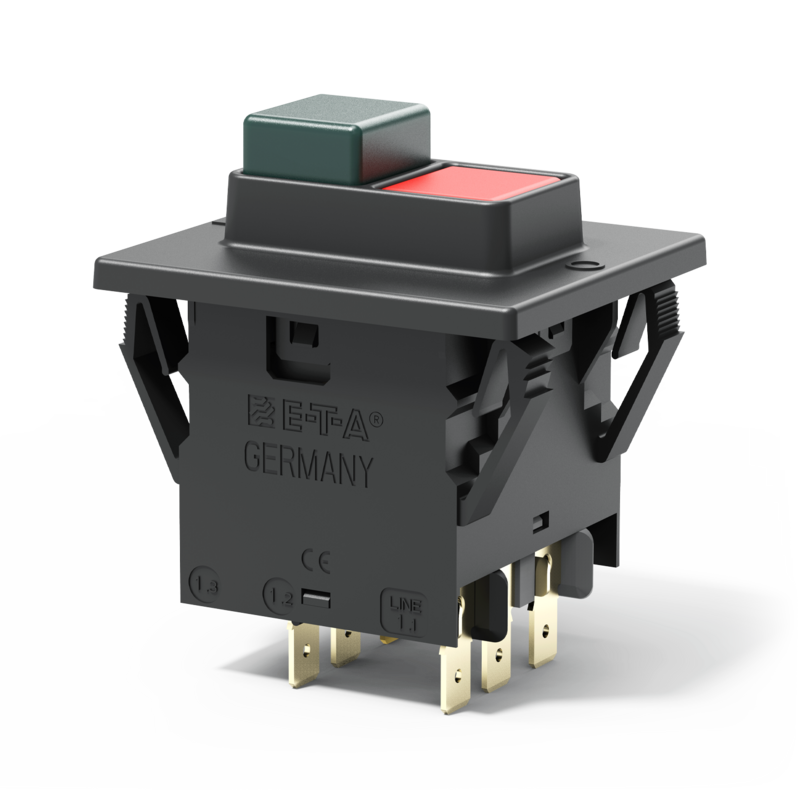

Typ 3140 von E-T-A: Kombination 3-poliger Schutzschalter/Ein-Aus-Schalter mit Druckknöpfen, Frontmontage.

Descripción

Ficha técnica

Four pole switch or three pole switch/thermal circuit breaker (S-type TO CBE to EN 60934) with trip-free mechanism and red/green two button operation. Designed for snap-in panel mounting. Integral splash water protection to meet protection degree IP 66 in the operating area (option).

Optional with undervoltage release module.

Complies with CBE standard EN 60934 (IEC 60934).

Datos técnicos

Voltage rating
  • 3 AC 415 V
Current ratings de 0.1 A hasta 16 A
Number of poles three pole
Mounting method flange
Terminal design blade terminals
screw terminals
Actuation push button
Auxiliary contacts with auxiliary contacts
without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
Typical life 0.1...14 A 10,000 operations at 1 x IN, inductive

15...16 A 10,000 operations at 1 x IN, resistive
Interrupting capacity Icn 0.1...2 A: 10 x IN

2.5...16 A: 150 A
Certificates VDE, UL, CCC

Accesorios

Número de pedido Descripción
X3120-S

Módulo de contacto auxiliar
X3140-U

Módulo de desconexión de baja tensión

Aplicaciones

  • Herramientas, electrodomésticos y aparatos de jardinería
  • Luminotecnia
  • Telecomunicaciones
