Thermal circuit breaker for threadneck
panel mounting, push-push actuation

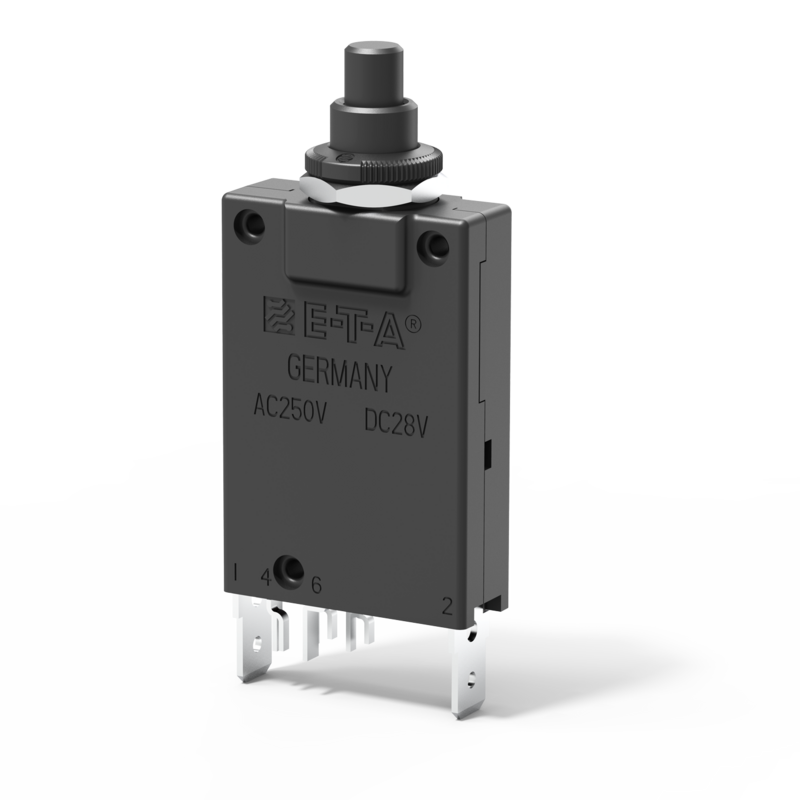

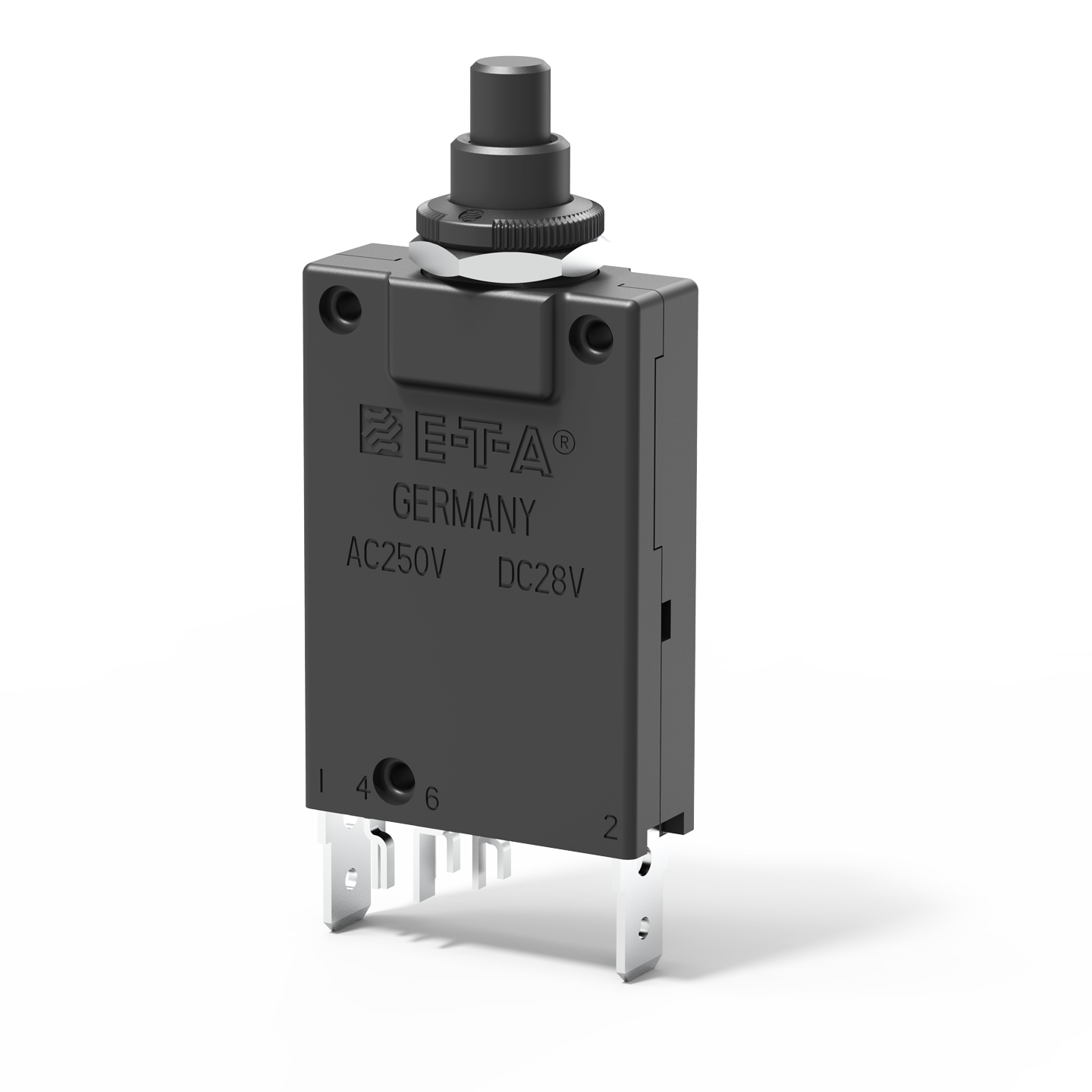

Tipo 2-6400
~ 80 mm
Descripción
Single pole thermal circuit breakers with push-to-reset, tease-free, trip-free, snap action mechanism (R type TO CBE to EN 60934). Featuring auxiliary contacts (1 x N/C; 1 x N/O) as standard. Options include an additional unprotected circuit tap (-A3).
Approved to CBE standard EN 60934 (IEC 60934).
Datos técnicos
| Voltage rating |
|
|---|---|
| Current ratings |
de 0.05 A hasta 16 A |
| Number of poles | single pole |
| Mounting method | threadneck |
| Terminal design |
blade terminals solder terminals |
| Actuation | push button |
| Auxiliary contacts | with auxiliary contacts |
| Water splash protection |
with water splash protection without water splash protection |
| Illumination | with illumination |
| Typical life | 5,000 operations at 2 x IN, inductive |
| Interrupting capacity Icn | 10 x IN |
| Certificates | VDE, CSA, UL |
Accesorios
| Número de pedido | Descripción | |
|---|---|---|
| X20079802 |
Cubierta antisalpicaduras, transparente |
|
| X20079901 |
Cubierta antisalpicaduras, transparente |
|
| X20080103 |
Cubierta antisalpicaduras negra con junta tórica |
|
| X20080108 |
Cubierta antisalpicaduras transparente con junta tórica |
|
| X20129601 |
Cubierta antisalpicaduras negra sin junta tórica |
|
| X20129603 |
Cubierta antisalpicaduras negra con junta tórica |
|
| X21066301 |
Cubierta antisaplicaduras transparente con tuerca moleteada |
|
| X21073901 |
Cubierta antisalpicaduras con tuerca hexagonal |
|
| Y30011602 |
Tuerca hexagonal |
|
| Y30019201 |
Tuerca hexagonal |
|
| Y30206501 |
Tuerca moleteada |
|
| Y30711702 |
Tuerca moleteada |
Aplicaciones
- Herramientas, electrodomésticos y aparatos de jardinería
