Tipo 127

~ 68 mm

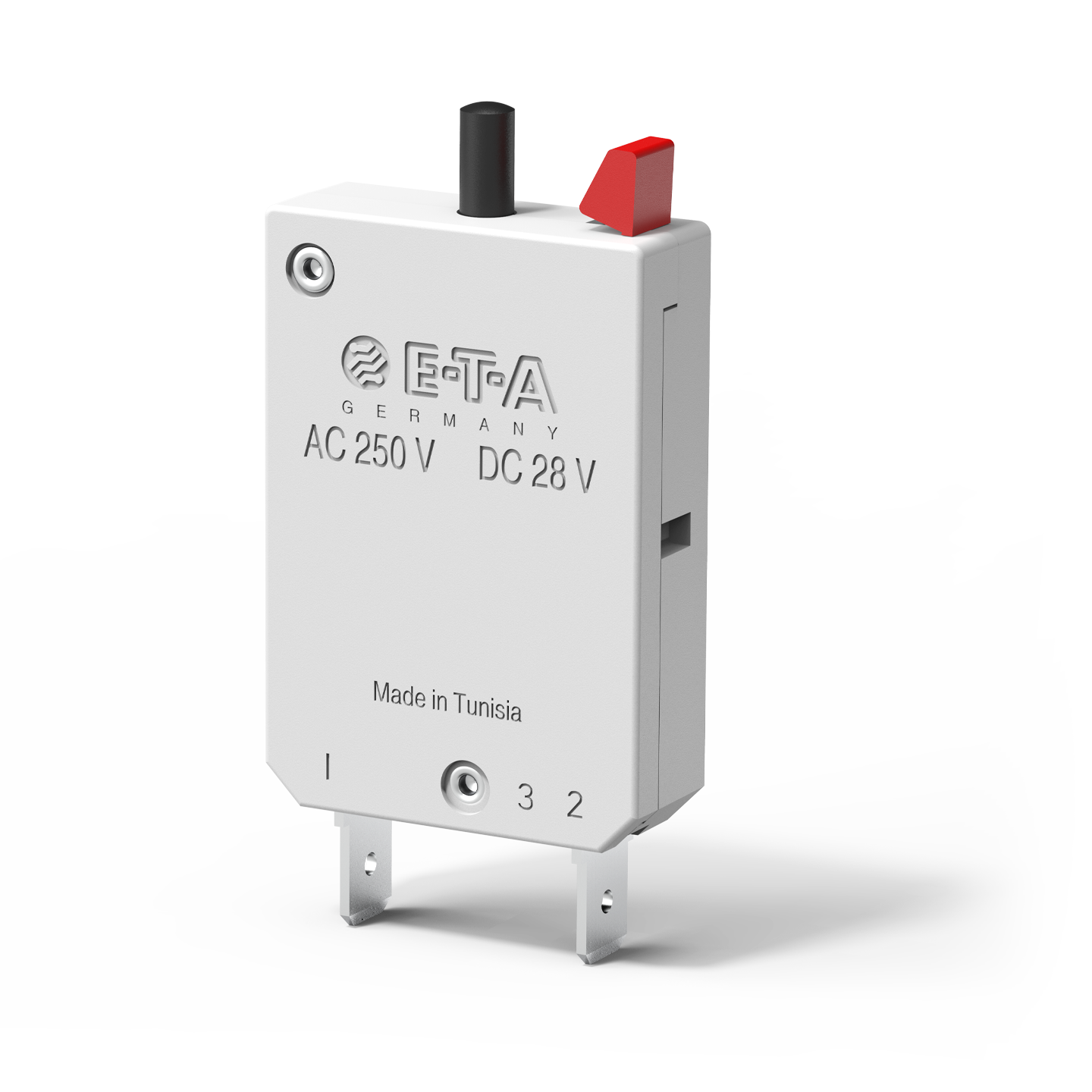

Typ 127 von E-T-A: Einpoliger, thermischer Schutzschalter mit verschiedenen Befestigungsarten.

Descripción

Single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934; M-type when fitted with optional manual release feature). Available in versions for plug-in or integral mounting, track mounting, or with a frame for snap-in panel mounting. The optional KF housing is particularly suited to high humidity and other damp conditions.

Approved to CBE standard EN 60934 (IEC 60934).

Datos técnicos

Voltage rating
  • AC 250 V
  • DC 28 V
  • UL: DC 50 V
Current ratings de 0.05 A hasta 25 A
Number of poles single pole
Mounting method flange
rail mounting
socket
Terminal design blade terminals
screw terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination with illumination
Typical life 0.05...16 A 5,000 operations at 2 x IN, inductive

17...25 A 5,000 operations at 2 x IN, resistive
Interrupting capacity Icn 0.05...2.5 A. 8 x IN

3...5 A: 20 x IN

6...12 A: 200 A

13...25 A: 400 A
Certificates VDE, CSA, UL, CCC (Type 127-T.. approvals N/A)

Accesorios

Número de pedido Descripción
10F-P10/-K10/-A10

Zócalos de montaje

X21058801-04

Puentes conectores bus -P10

01 = 1,5 mm2 marrón



02 = 2,5 mm2 negro



03 = 2,5 mm2 rojo



04 = 2,5 mm2 azu

X21058901/02

Puentes conectores bus -K10

01 = 2,5 mm2 negro



02 = 1,5 mm2 marrón

Y30116601/02

Barra colectora



01 = 4vías



02 = 2vías

Aplicaciones

  • Rango de tensión Minus DC 48 V
  • Telecomunicaciones
