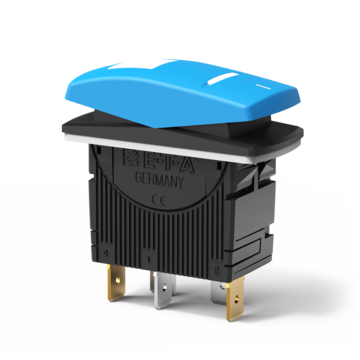

3131-B
Single pole three-position switch, water splash protected (IP66)

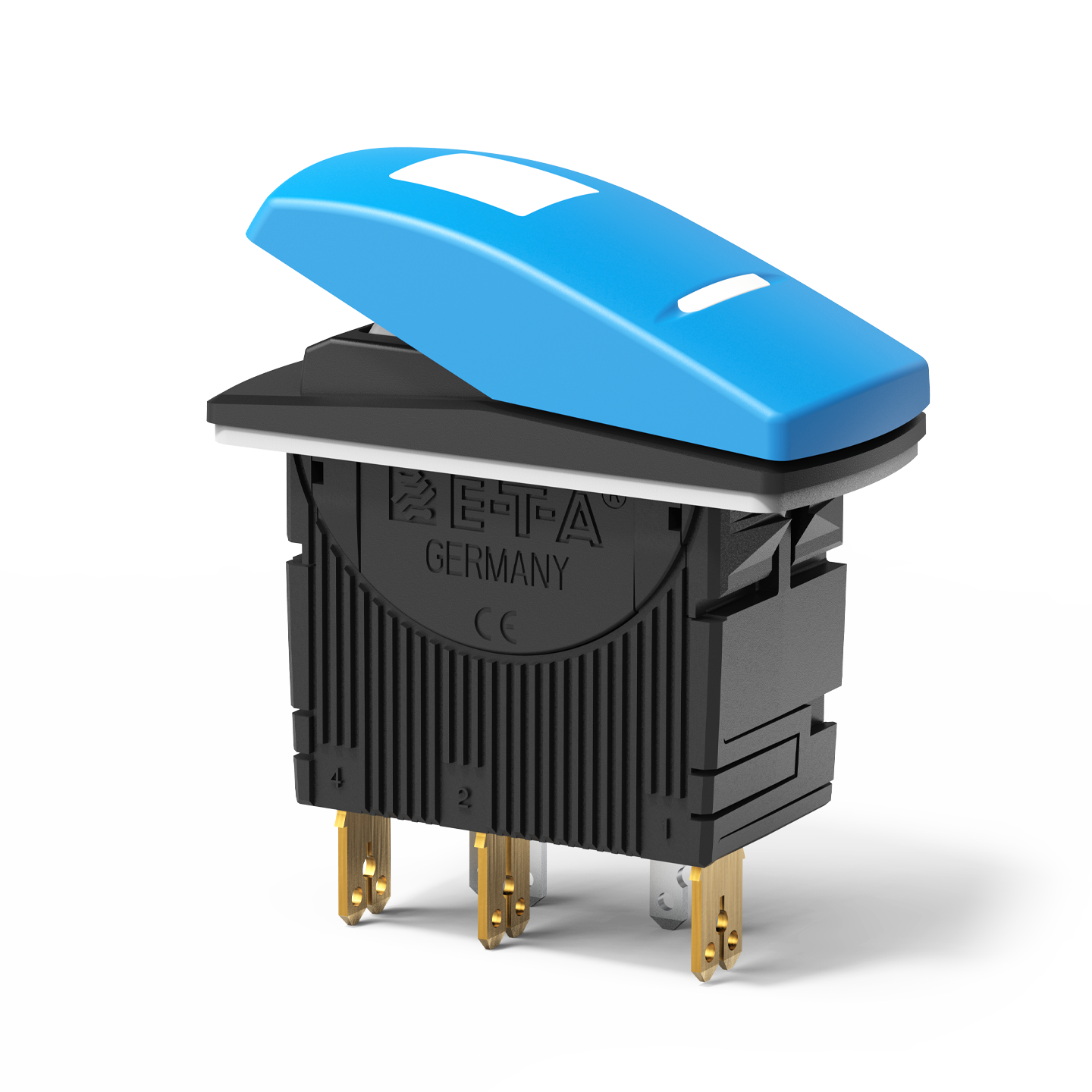

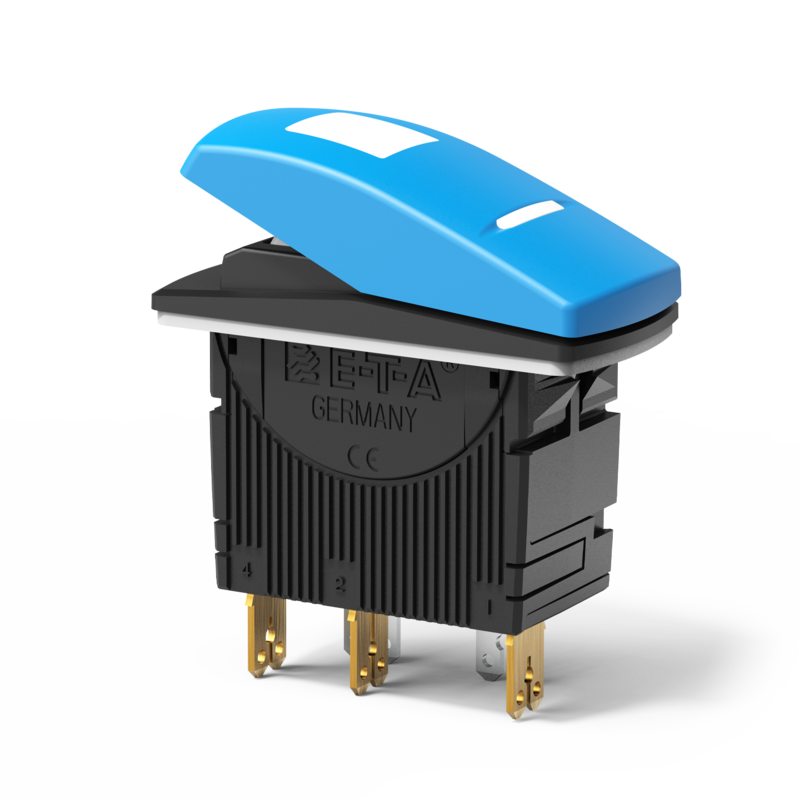

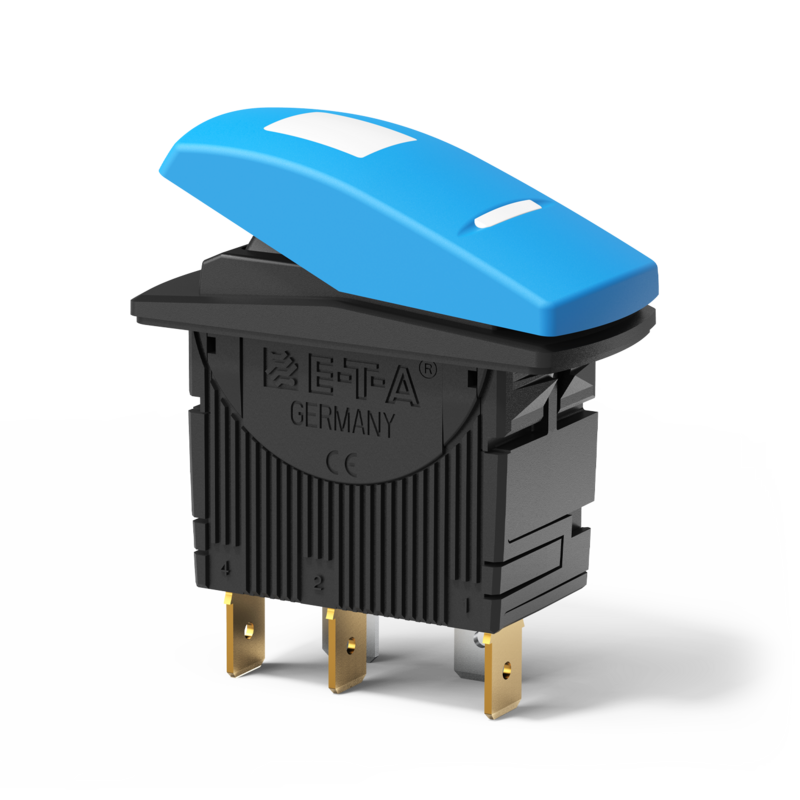

Tipo 3131-A
~ 51 mm
Descripción
Combination of single pole circuit breaker and ON/OFF switch with soft-touch rocker actuation. Contoured rockers are available with a choice of colours and legends, with optional illumination. The 3131 is sealed to provide IP66 rated front of panel water splash protection.
It meets the requirements of circuit breaker standard EN 60934 (IEC 60934): S type, TO.
Datos técnicos
| Voltage rating |
|
|---|---|
| Current ratings |
de 0.1 A hasta 20 A |
| Number of poles | single pole |
| Mounting method | flange |
| Terminal design |
blade terminals screw terminals |
| Actuation | rocker |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination |
with illumination with illumination |
| Typical life | 30,000 operations at 1 x IN, inductive |
| Interrupting capacity Icn |
0.1...2 A: 10 x IN 2.5...20 A: 200 A |
| Certificates | UL 1500 Ignition Protected UL 1077 VDE (EN 60934) |
Accesorios
| Número de pedido | Descripción | |
|---|---|---|
| X3131 |
Elemento de mando para tipo 3131 con diferentes marcas |
|
| Y30879001 |
Pieza lateral bastidor de montaje |
|
| Y30879101 |
Pieza central bastidor de montaje |
Aplicaciones
- Embarcaciones & vehículos
- Herramientas, electrodomésticos y aparatos de jardinería
- Luminotecnia
- Técnica médica
