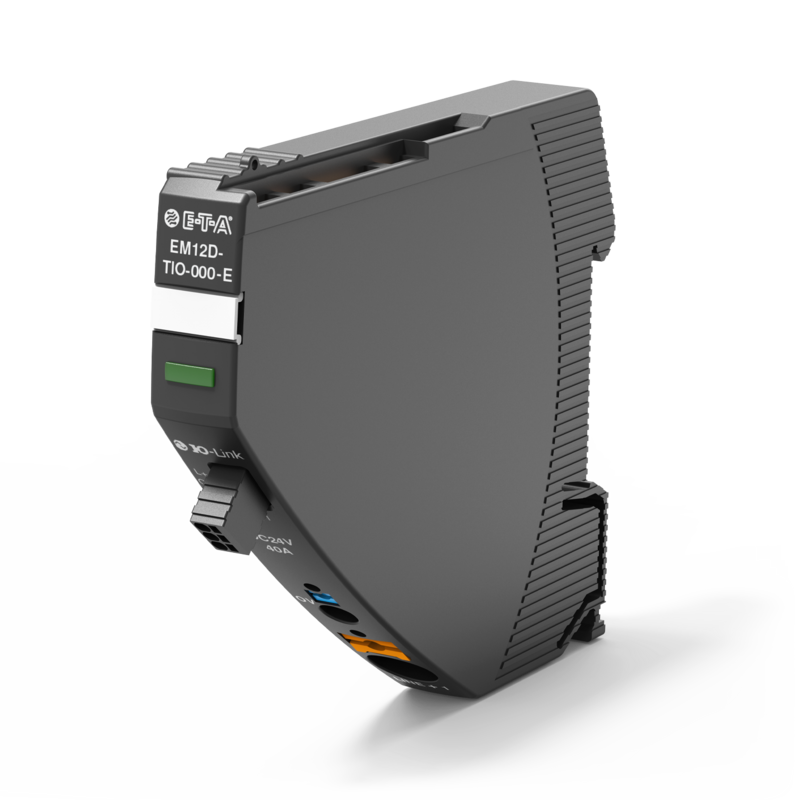

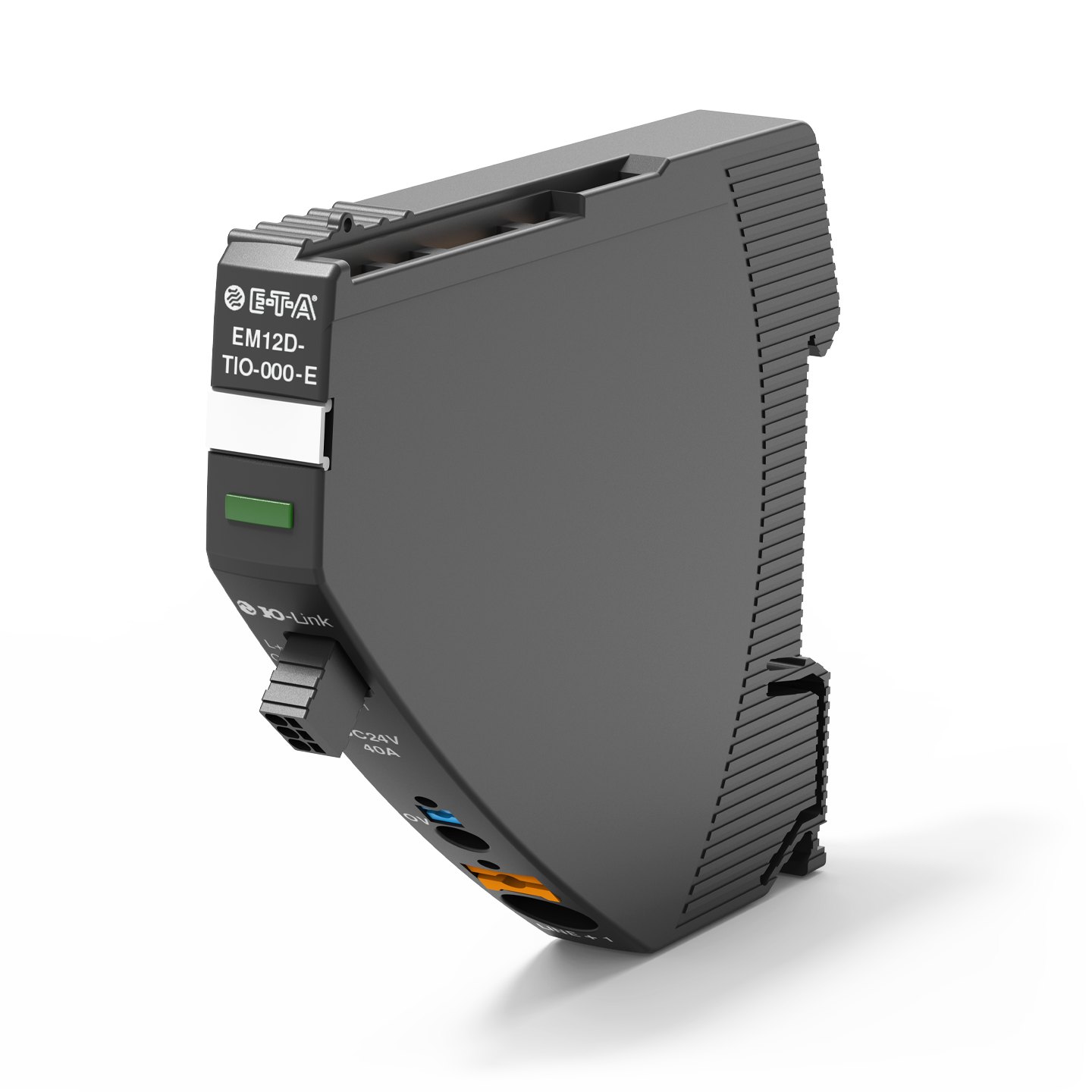

Tipo EM12D-TIO
Descripción
The EM12D-TIO supply module receives the DC 24 V supply voltage, e.g. from a pulsed switch mode power supply unit, and distributes it to the installed intelligent circuit protectors via the integral connector arm of the REX12D/REX22D. The communication interface of the EM12D-TIO, which is designed as IO link interface, allows many diagnosis and control commands to be sent to a superordinate IO link master of the control level.
Applications
- Mechanical engineering
- Automation
- Process industry
Datos técnicos
| Bemessungsspannung | DC 24 V (18…30 V) |
|---|---|
| Bemessungsstrom | 40 A |
| Ambient temperature | -30 °C ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 2367, UL 1310 NEC Class2, UL 508 listed, CSA C22.2 No. 14, CSA C22.2 No. 107.1, UL 121201 (Class I, Division 2, Groups A, B, C, D), CSA C22.2 No. 213, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
