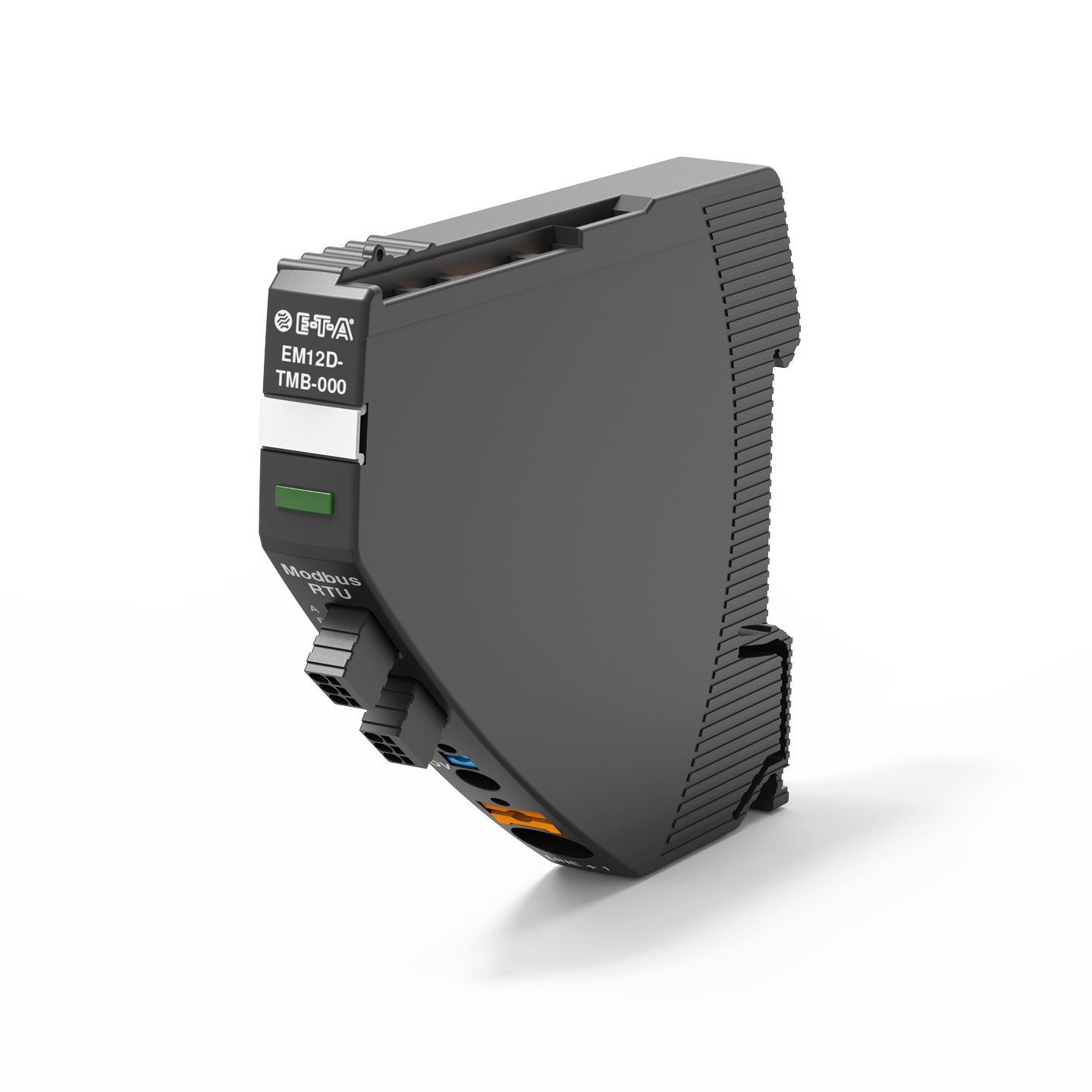

Tipo EM12D-TMB
Descripción
The EM12D-T supply module receives the DC 24 V supply voltage, e.g. from a switch mode power supply, and distributes it to the intelligent circuit protectors installed side by side via the integral connector arm of the REX12D-T. The communication interface of the EM12D-T, which is designed as an Modbus RTU device, enables many diagnosis and control commands to be sent to a superordinate Modbus RTU master of the control level.
Applications
- Mechanical engineering
- Automation
- Process industry
Datos técnicos
| Bemessungsspannung | DC 24 V (18…30 V) |
|---|---|
| Bemessungsstrom | 40 A |
| Ambient temperature | -30 °C ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 2367, UL 1310 NEC Class2, UL 508 listed, CSA C22.2 No. 14, CSA C22.2 No. 107.1, UL 121201 (Class I, Division 2, Groups A, B, C, D), CSA C22.2 No. 213, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
Descargas
- Ficha técnica 4.3 MB
Declaraciones de conformidad | 11
- EU Declaration of Comformity 409.8 KB
- EU Declaration of Conformity (ATEX) 157.1 KB
- ATEX Declaration of Comformity 932.4 KB
- UKEX Declaration of Conformity 168.6 KB
- Statement on California Proposition 65 262.6 KB
- RMI CMRT 1.7 MB
- RMI EMRT 1.8 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- Statement on Persistent Organic Pollutants (POPs) 248.4 KB
- REACH 310.1 KB
- TSCA Letter of Confirmation 244.1 KB
Datos CAD | 1
- EM12D-TMB 1.9 MB
