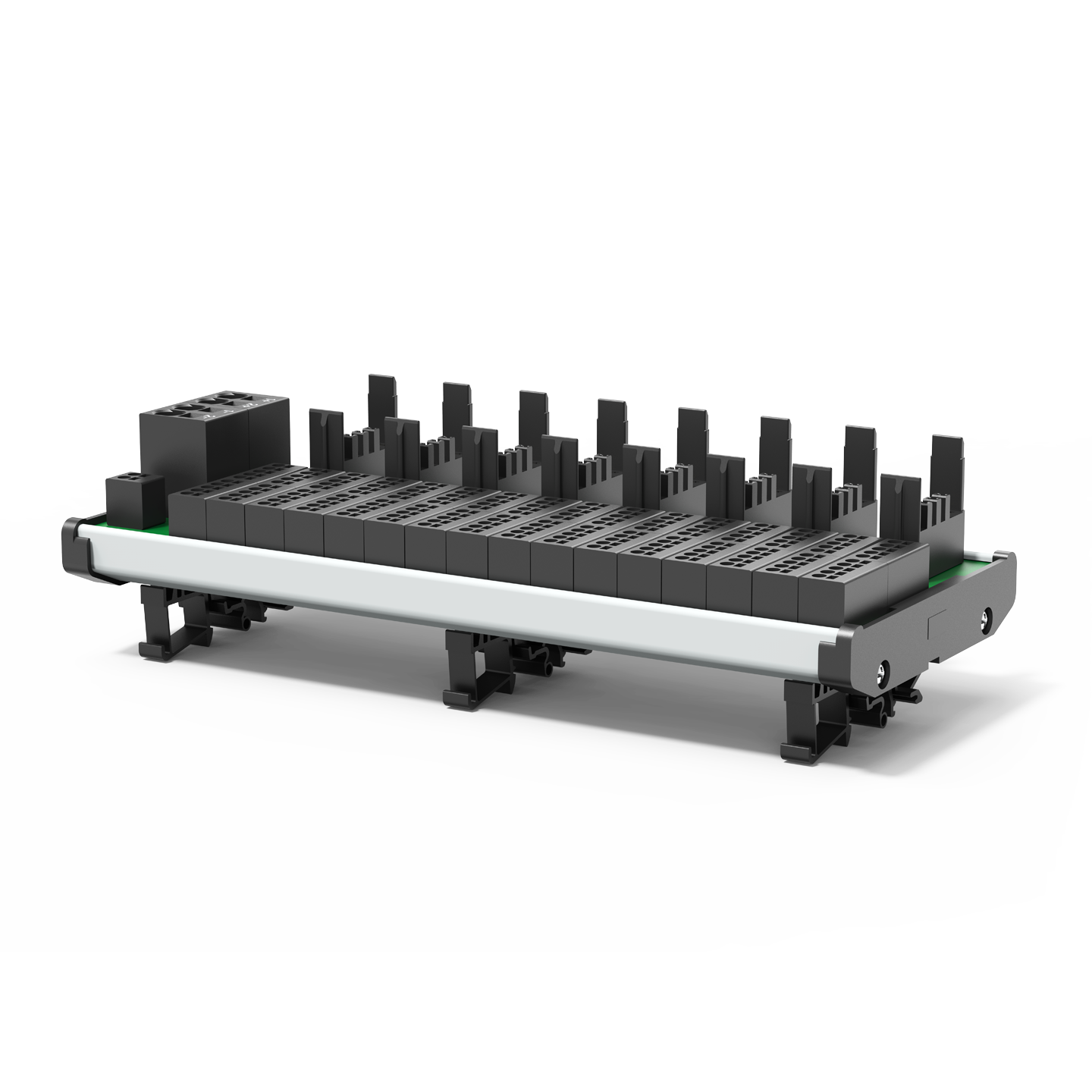

Tipo SVS25
260 mm
Descripción
The new power distribution system type SVS25 meets all requirements of the automation technology with regard to reliably overcurrent protection and optimised current distribution.
The track-mountable power distribution system SVS25 distributes the voltage potentials supplied by a DC 24 V switch-mode power supply to 8 slots and selectively protects the connected loads by means of the plugged in circuit protector type REF16-S101-DC24V. The SVS25 simplifies wiring and distribution with a load current of 10 A per way and a max. total current of 40 A in short-circuit-limited DC 24 V applications. 10 protected »+« load outputs and 10 minus terminals per slot help significantly reduce wiring time.
Datos técnicos
| Mounting method | DIN rail |
|---|---|
| Circuit breaker type | electronics |
| Tensión nominal máx. | DC +24 V |
| Para interruptores de protección del tipo | REF16 |
| Rango de temperatura de servicio | 0 … +50 °C |
Aplicaciones
- (Industria siderúrgica)
- Automatización
- Construcción de máquinas
- Industria alimentaria y farmacéutica
- Industria química, petroquímica y del gas
- Sector de automoción
- Técnica de centrales eléctricas DC 24 V
