Tipo SVS21
Descripción

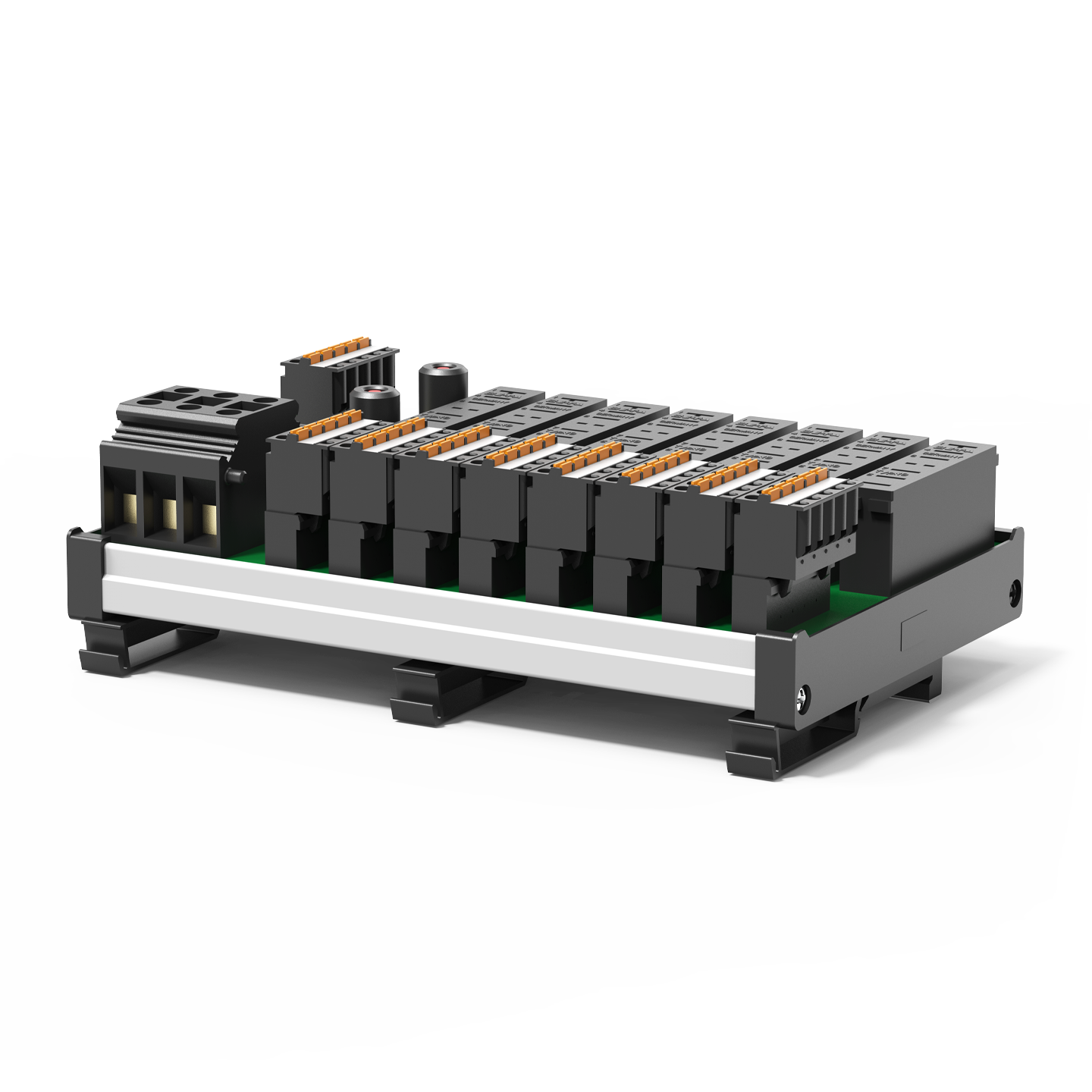

The power distribution system SVS21 for DIN rail mounting distributes all voltage potentials supplied by a 24 V power supply (SMPS) onto 8 ways and selectively protects the connected loads by means of the circuit breaker fitted. With a max. load current of 8 A per way and a max. total current of 40 A the SVS21 provides ease of distribution and sub-distribution in short-circuit-limited DC 24 V applications. The protected »L+« load outputs per way allow direct connection of 0 V return conductor or functional earth (FE) and help to significantly reduce wiring time.
Suitable for the following E-T-A circuit breaker types:
electronic circuit breaker ESS30..
electronic circuit protector ESX10-103..
Datos técnicos
Mounting method | DIN rail |
---|---|
Circuit breaker type | electronics |
Accesorios
Número de pedido | Descripción | |
---|---|---|
Y30388108 |
Puente de conductor aislado |
Aplicaciones
- Automatización
- Industria alimentaria y farmacéutica
- Industria química, petroquímica y del gas
- Técnica de centrales eléctricas DC 24 V
