Tipo SVS20
210 mm
Descripción

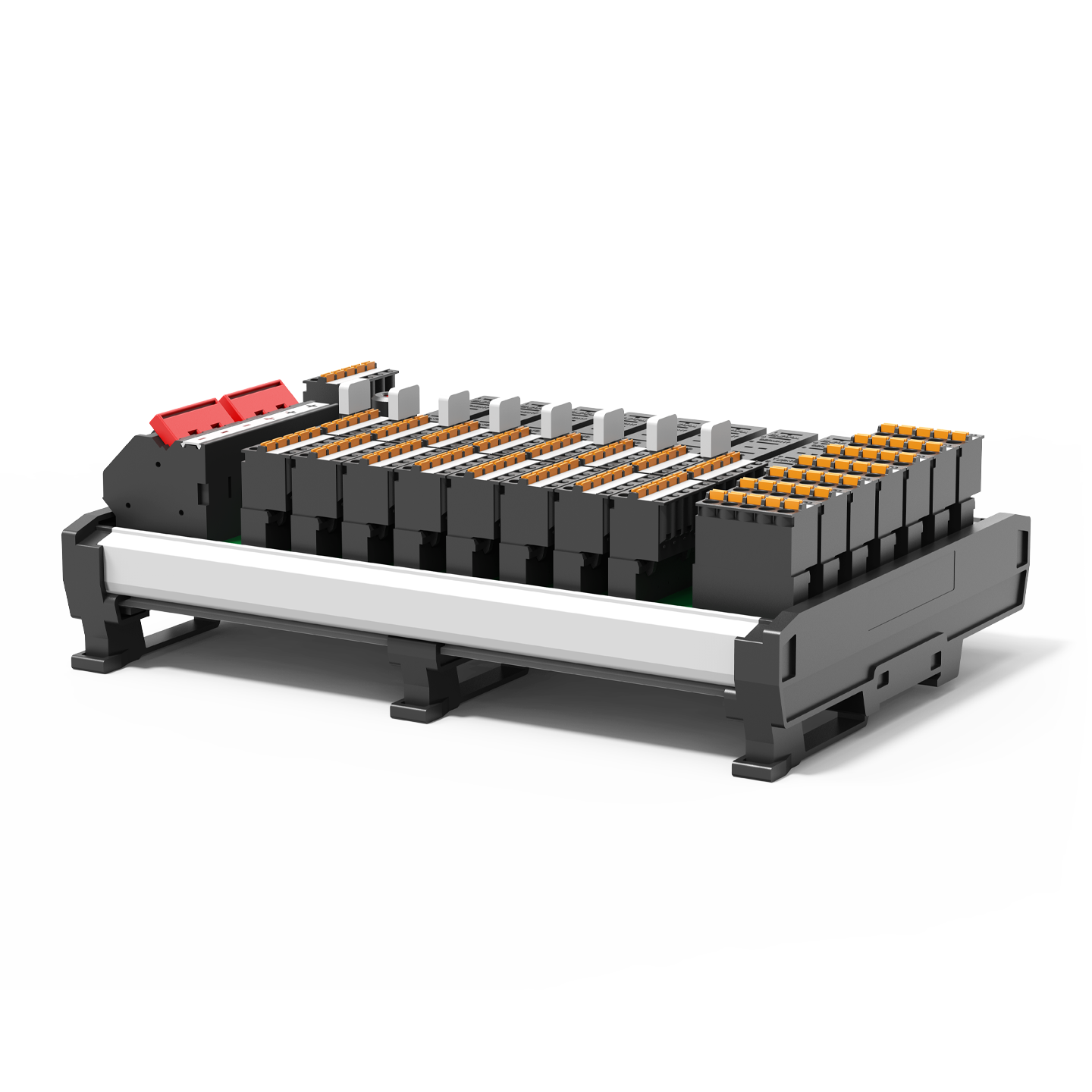

The power distribution system SVS20 for rail mounting distributes the current supplied by a DC 24 V switch-mode power supply to 8 channels and selectively protects the connected loads by means of the inserted circuit breakers. With a max. load current of 8 A per channel and a max. total current of 40 A the SVS20 provides ease of wiring in short-circuit limited DC 24 V applications. Eight protected "L+” load outputs per channel and 35 minus terminals help to reduce wiring time significantly.
Datos técnicos
| Mounting method | DIN rail |
|---|---|
| Circuit breaker type | electronics |
Accesorios
| Número de pedido | Descripción | |
|---|---|---|
| SB-S11-P1-01-1-1A |
Puente (jumper) |
|
| Y30388108 |
Puente de conductor aislado |
|
Aplicaciones
- Automatización
- Industria alimentaria y farmacéutica
- Industria química, petroquímica y del gas
- Técnica de centrales eléctricas DC 24 V
Descargas
- Ficha técnica 3.0 MB
Declaraciones de conformidad | 5
- RMI CMRT 1.5 MB
- RMI EMRT 1.7 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- REACH 267.2 KB
- TSCA Letter of Confirmation 244.1 KB
