Tipo SVS04
Descripción

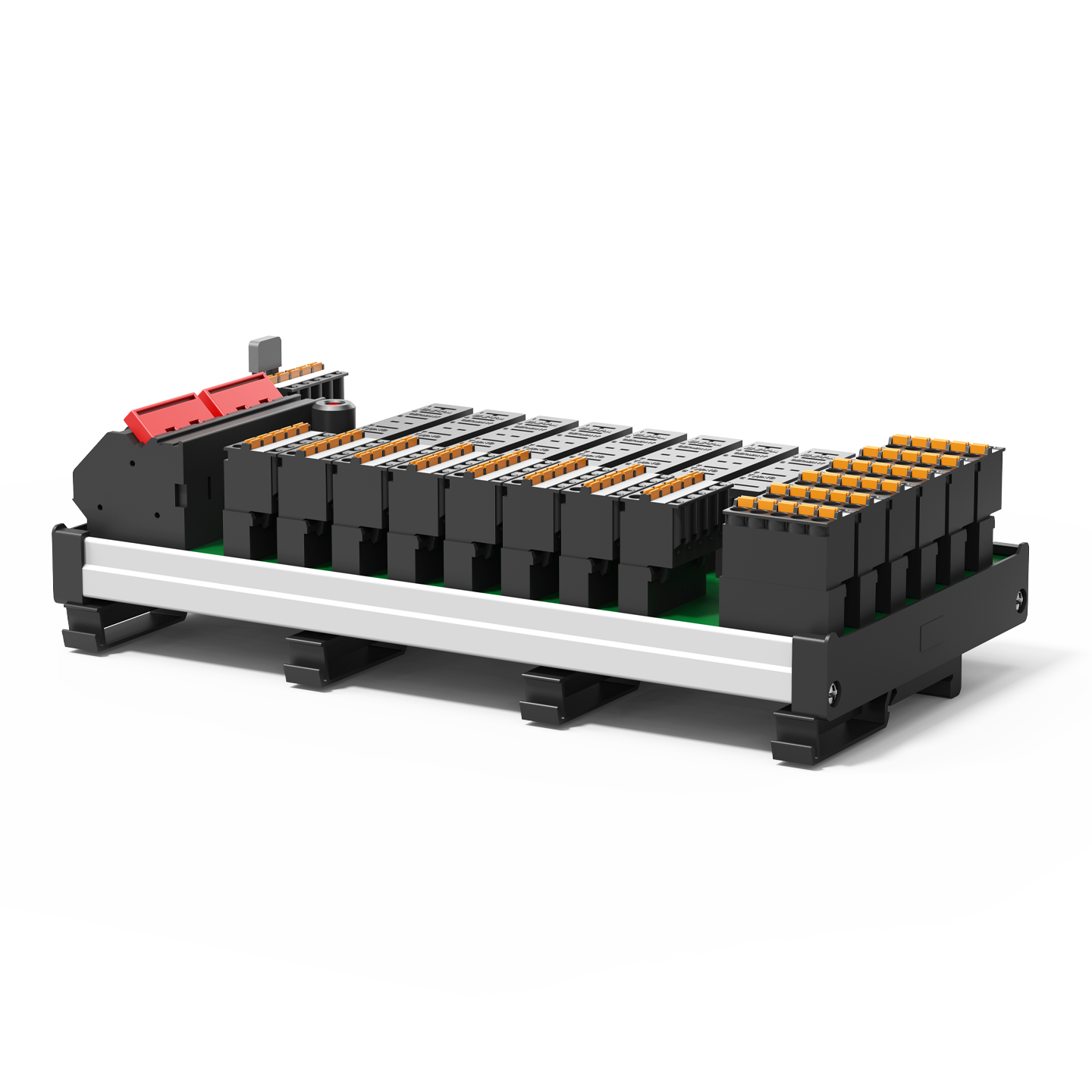

The power distribution system SVS04 for DIN hat rail mounting is designed to distribute the current supplied by a switch mode power supply to 4 or 8 positions and selectively protects the connected loads by means of the plugged in circuit breakers. With a max. load current of 8 A per channel and a max. total current of 40 A the power distribution system SVS04 provides ease of wiring in short circuit current limited DC24V applications. Five protected "L+” load outputs per position and 15 or 30 minus terminals reduce wiring time enormously.
The 4 or 8 positions accommodate the electronic circuit breaker ESS30, the electronic circuit protector ESX10-103, the thermal-magnetic circuit breakers 2210-S21. and 3600 as well as the adapter P10.
Datos técnicos
Mounting method | DIN rail |
---|---|
Circuit breaker type |
electronics thermal-magnetic |
Accesorios
Número de pedido | Descripción | |
---|---|---|
SB-S11-P1-01-1-1A |
Puente (jumper) |
|
Y30388108 |
Puente de conductor aislado |
Aplicaciones
- (Industria siderúrgica)
- Automatización
- Construcción de máquinas
- Industria alimentaria y farmacéutica
- Industria química, petroquímica y del gas
- Sector de automoción
- Técnica de centrales eléctricas DC 24 V
Downloads
Datasheet & Explanations
- Ficha técnica 2.2 MB
- SVS04_04_B10_stp.zip 2.9 MB
- SVS04_08_B10_stp.zip 4.4 MB
- SVS04_08_B10_K01_stp.zip 4.9 MB
