Tipo SVS02

~ 110 mm
Typ SVS02 von E-T-A: Der E-T-A Stromverteiler SVS02 ist für die Aufnahme der elektronischen Schutzschalter ESS30 konzipiert.

Descripción

Ficha técnica

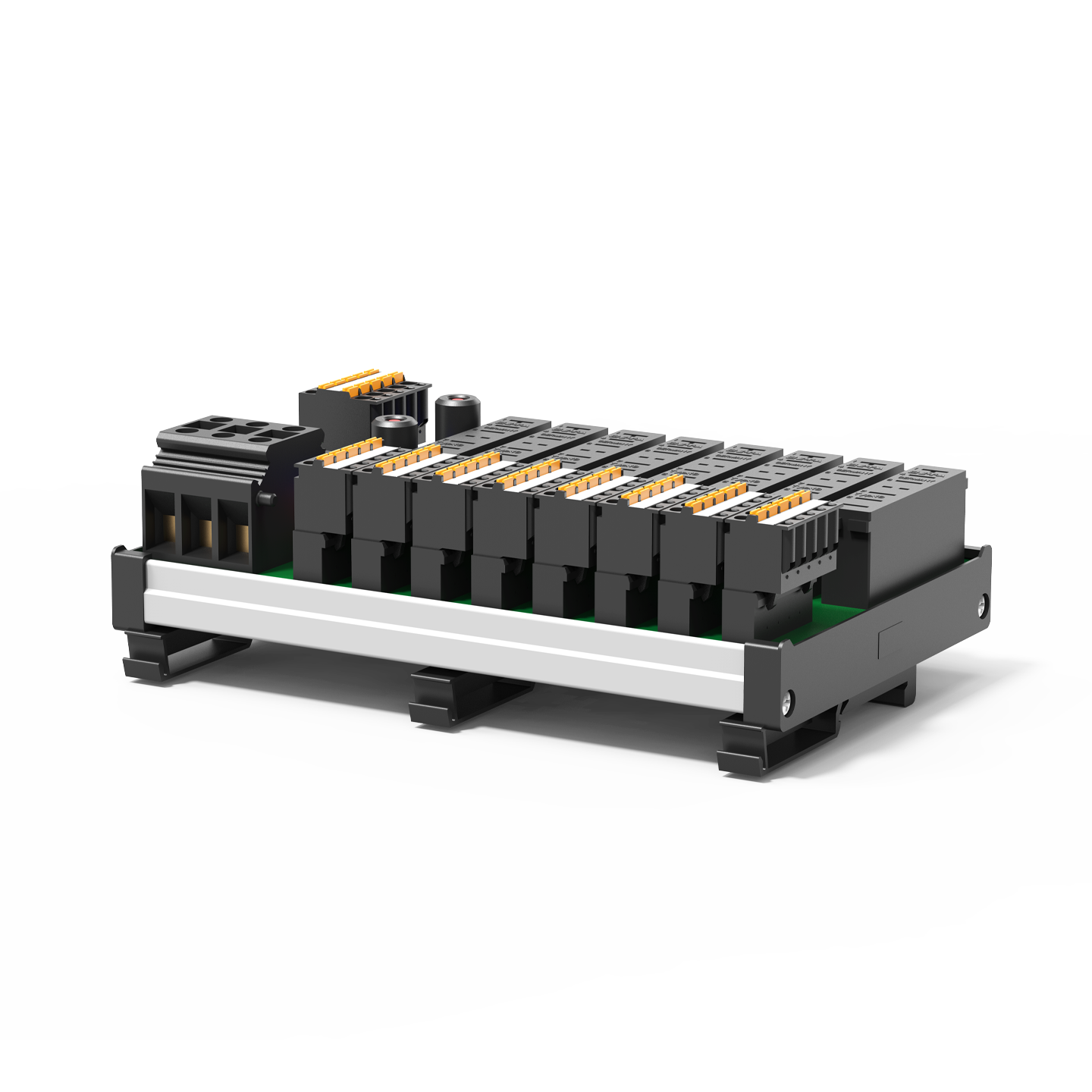

The E-T-A power distribution system SVS02 is designed to accommodate the electronic circuit breaker series ESS30. It distributes the current supplied by a switch mode power supply up to 40 A to 4, 8, 12 or 16 channels. Mains connection is via screw terminals. The individual circuit breakers can be plugged in. Loads are connected via spring-loaded screwless terminals. The power distribution includes integral wiring of the signalisation of the individual channels which can be combined to a group signal. The SVS02 can be snapped onto a DIN symmetrical rail.

Suitable for:
ESS22
ESX10-103
2210-S21.
3600

Datos técnicos

Mounting method DIN rail
Circuit breaker type electronics
thermal-magnetic

Accesorios

Número de pedido Descripción
Y30388108

Puente de conductor aislado

Aplicaciones

  • (Industria siderúrgica)
  • Automatización
  • Construcción de máquinas
  • Industria alimentaria y farmacéutica
  • Industria química, petroquímica y del gas
  • Sector de automoción
