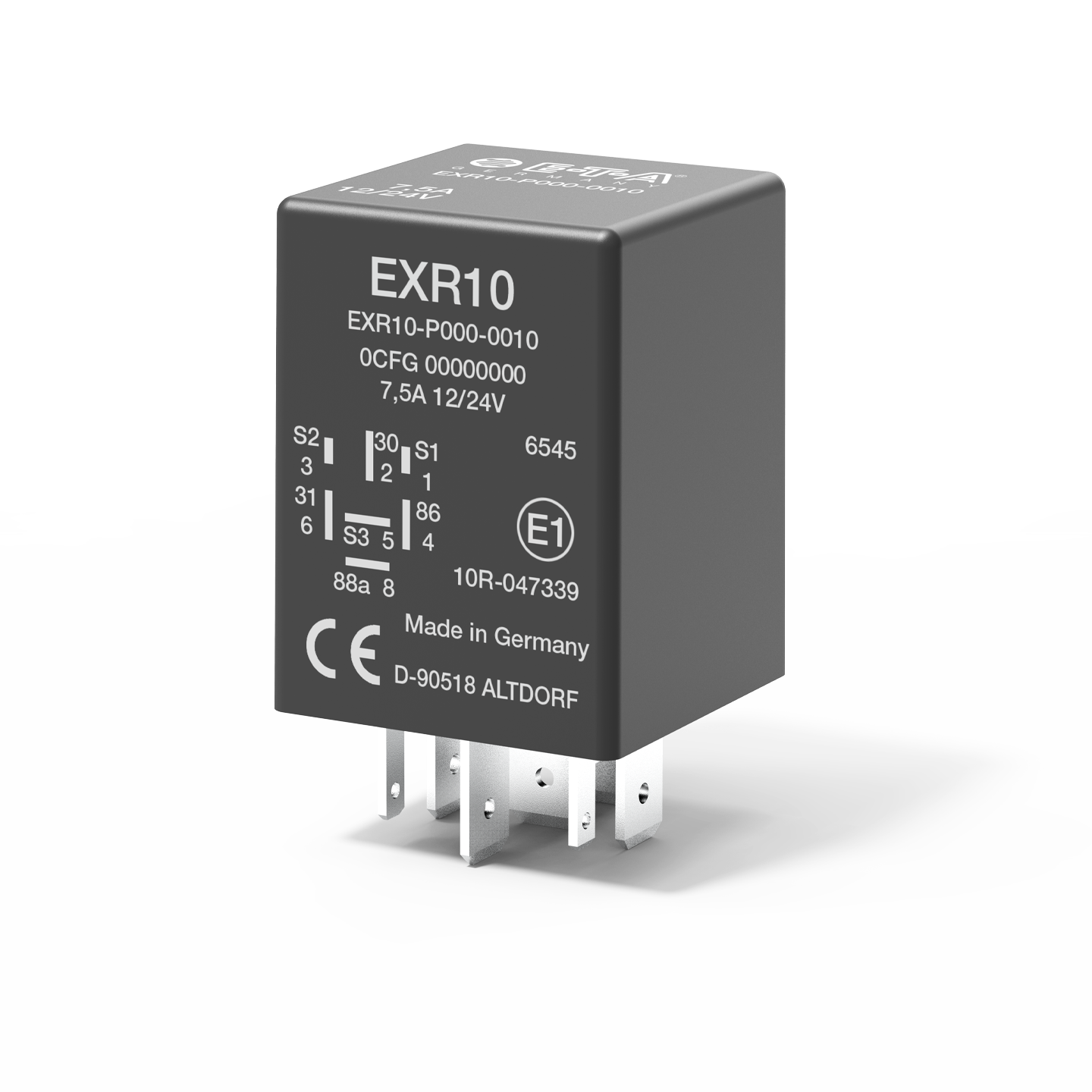

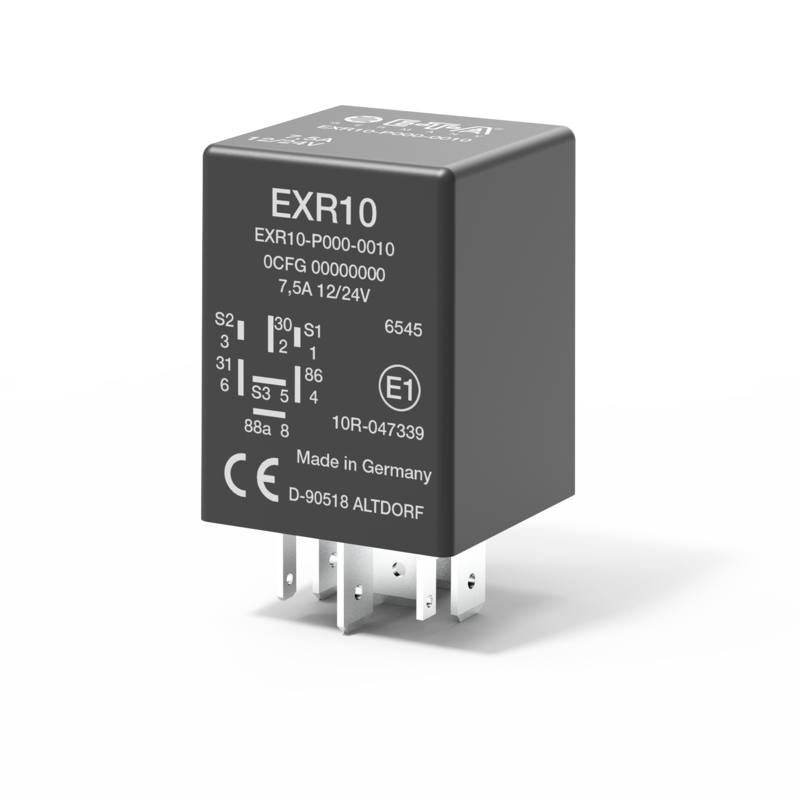

Tipo EXR10

~ 80 mm

Descripción

The EXR10 special solid state relay holds a number of special functionalities in a single device, including:

  • Diagnostic functions (e.g. undervoltage detection)
  • Timer function
  • Relay function
  • Protective function

Main functionalities such as overcurrent protection of the EXR10 can be custom designed with a configurator. You will receive a product which is tailor-made to the needs of your application. For specification please use our relay configurator.

  • Reduction of complexity through integral overcurrent protection.
  • Flexible use in the vehicle through customised adaptation of the devices.
  • Extremely durable and wear-free design through an electronic contact system.

The EXR10 special relay is available for DC 12 V and DC 24 V applications and is suitable for standard automotive relay sockets to ISO 7588.

Datos técnicos

Voltage rating of load DC 12 V/DC 24 V
Continuous current 1 A
2 A
3 A
5 A
7.5 A
10 A
Number of poles 1-pole
Temperature range -40° C … +85° C
Terminal design ISO 7588 MINI socket
Mounting method standard automotive relay socket
Design Cubic enclosure dimensions 30 mm x 30 mm x 40 mm
Feature Solid state relay with microcontroller and a large functionality library plus undervoltage detection.

The customer-specific configuration can be selected on the E-T-A website.
Contact system type electronic

Aplicaciones

  • Agricultural and forestry machinery
  • Automotive
  • Bus: transit and school
  • Construction machinery
  • Heavy truck
  • Marine
  • Specialty vehicles

Scopes of applications

  • Alternative for applications requiring intelligent additional functionalities. A control unit is not required.
