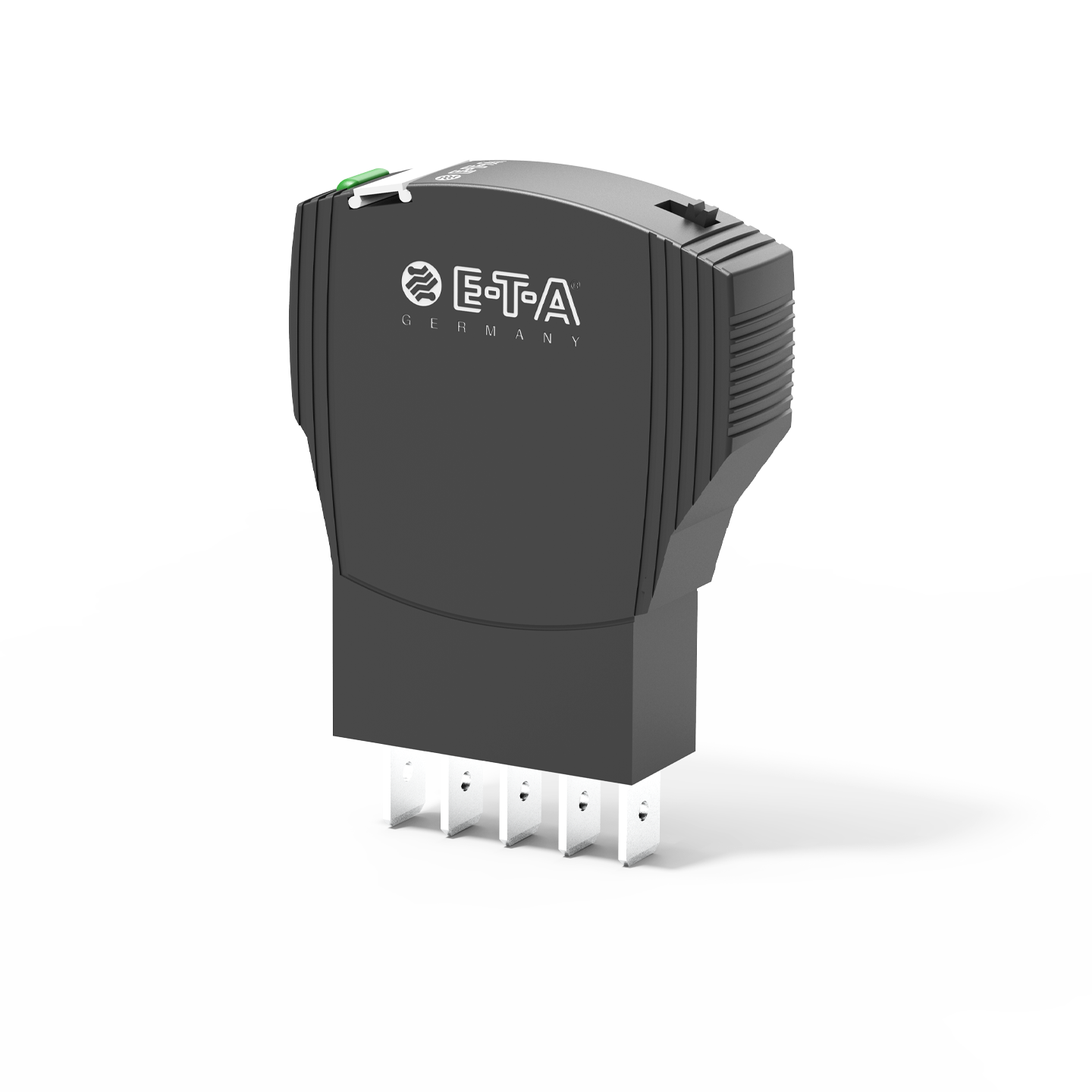

Type: REF16-S

Descripción

~ 61 mm

It provides selective protection for all DC 24 V load circuits at a width of only 12.5 mm. This is achieved by a combination of active electronic current limitation in the event of a short circuit and overload disconnection at typically 1.25 times rated current. Plugged into an E-T-A socket, which is available with screw terminals or screwless terminals, the REF16-S provides ease of installation. The sockets allow power distribution and signalling via plug-in type jumpers. In addition the REF16-S latches on when plugged into the socket and by means of coding pins a clear assignment to current ratings or slots is possible. Dimensions are in compliance with the standard DIN 43880 for the installation of built-in units.

Descargas

Datos técnicos

Datos técnicos

Voltage rating  DC 24 V (18...30 V)
Current ratings  0.5 A
1 A
2 A
3 A
4 A
6 A
8 A
10 A
Signal output  potential-free signal contact max. DC 30 V / 0.5 A, min. 10 V / 10 mA (make or break contact), Plus-switching signal output (+ 24 V))
Mounting method on socket 80/81plus
Rated voltage
  • DC 24 V
Number of poles
  • 1-pole
Current limitation
  • typically 1.25 x IN
Status indication
  • 1 LED green/orange/red: status/fault
Temperature range  0...+50 °C
Terminal design
  • blade terminals 6.3 mm
Approvals CE-logo

Accesorios

Accesorios

Order numberDescription
X 222 977 50Etiqueta
80PLUS-PT01Base 80plus
81PLUS-UT01Base 81plus
Y 310 625 02Puente, azul, 4 polos
Y 310 625 01Puente, rojo, 4 polos
Y 310 624 03Puente, gris, 2 polos
Y 310 624 02Puente, azul, 2 polos
Y 310 624 01Puente, rojo, 2 polos
Y 308 823 13Puente, gris, 10 polos
Y 308 823 12Puente, azul, 10 polos
Y 308 823 11Puente, rojo, 10 polos
Y 310 626 01coding star, red, 4 coding pins

Aplicaciones

Aplicaciones

  • Sector de automoción
  • Industria química, petroquímica y del gas
  • Técnica de centrales eléctricas DC 24 V
  • Construcción de máquinas
  • Industria alimentaria y farmacéutica
  • Automatización
