Type: ESX50D-S

Descripción

60 mm

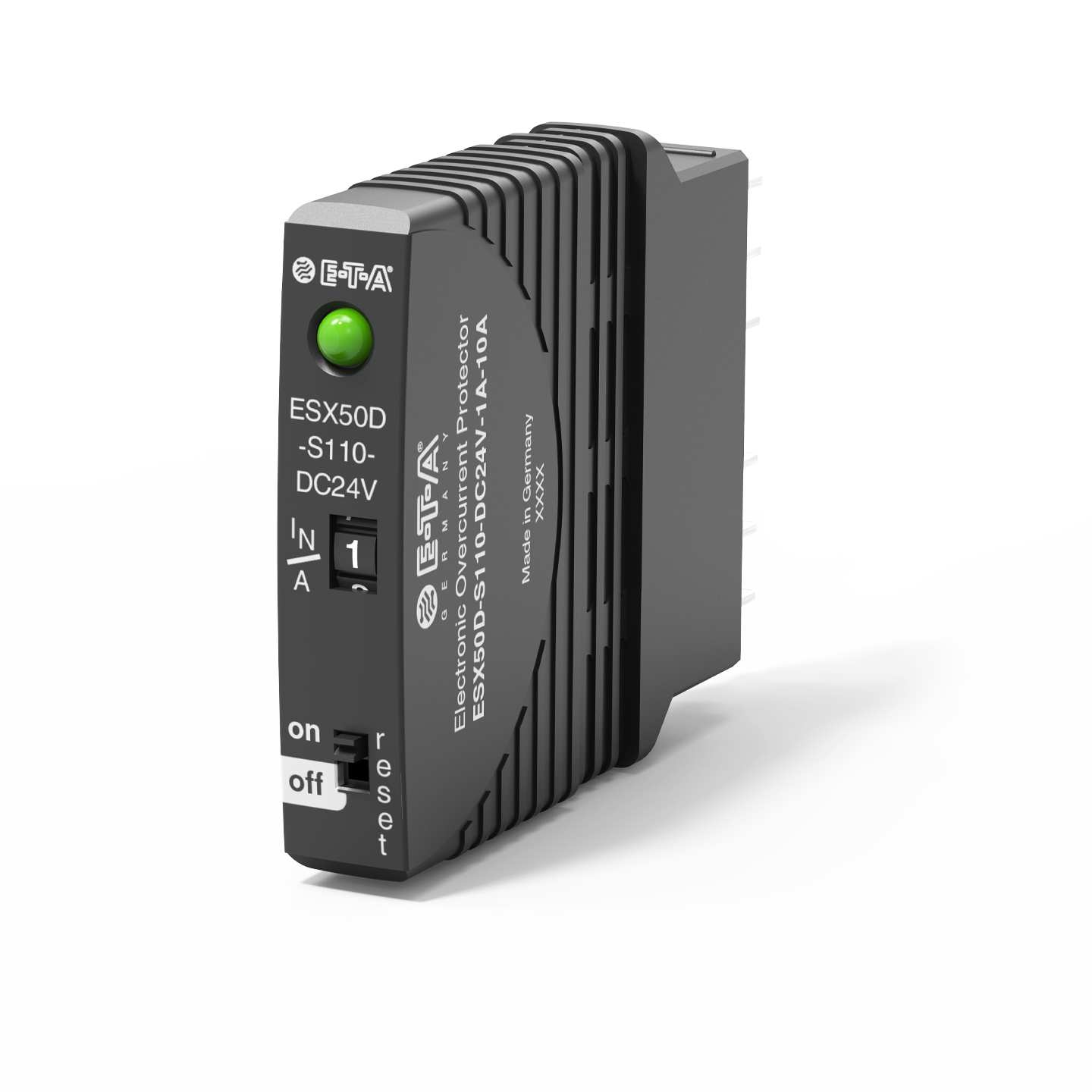

The type ESX50D-Sxx is an electronic circuit protector capable of communication, which forms the intelligent power distribution system ControlPlex® type SVS201-CP together with the bus terminal controller CPC10 and the power distribution board SVS201-PWR.

By means of its communication interface, the measuring values recorded by the ESX50D-Sxx will be forwarded to the CPC10 via the proprietary device bus ELBus® and then to a superordinate programmable control unit. This allows flexible adjustment of the current rating and its parameters to the requirements of the system and its direct controllability. So the user can import the relevant information regarding his DC 24 V voltage supply and process it accordingly.

The ESX50D-S is available in two different versions. The first version has a rotary switch to allow current rating adjustment directly on the circuit protector in a range from 1 A to 10 A. The second version offers this adjustment feature via a field bus system or a USB service interface.

Descargas

Datos técnicos

Datos técnicos

Voltage rating  DC 24 V 18...32 V
Rated voltage
  • DC / 24 V
Current ratings  1 A
2 A
3 A
4 A
5 A
6 A
7 A
8 A
9 A
10 A
Mounting method Mounting of enclosure plug-in type, suitable for SVS201-PWR-xx
Number of poles
  • 1-pole
Load disconnection
  • short circuit: typically 100 ms
    overload: typically 220 ms
  • short circuit: typically 100 ms
    overload: typically 3 s
  • without physical isolation at short circuit/overload
    trip times:
    short circuit: typically 100 ms
    overload: typically 3 s
Current limitation
  • typically 1,2 x IN
Status indication
  • 1 LED green/orange/red: status/fault
Temperature range  0...+40 °C
Terminal design
  • blade terminals 6.3 mm

Accesorios

Accesorios

Aplicaciones

Aplicaciones

  • Sector de automoción
  • Industria química, petroquímica y del gas
  • Energías renovables
  • Construcción de máquinas
  • Industria alimentaria y farmacéutica
  • Industria siderúrgica
  • Automatización
