Tipo ESX300-S plus

78 mm

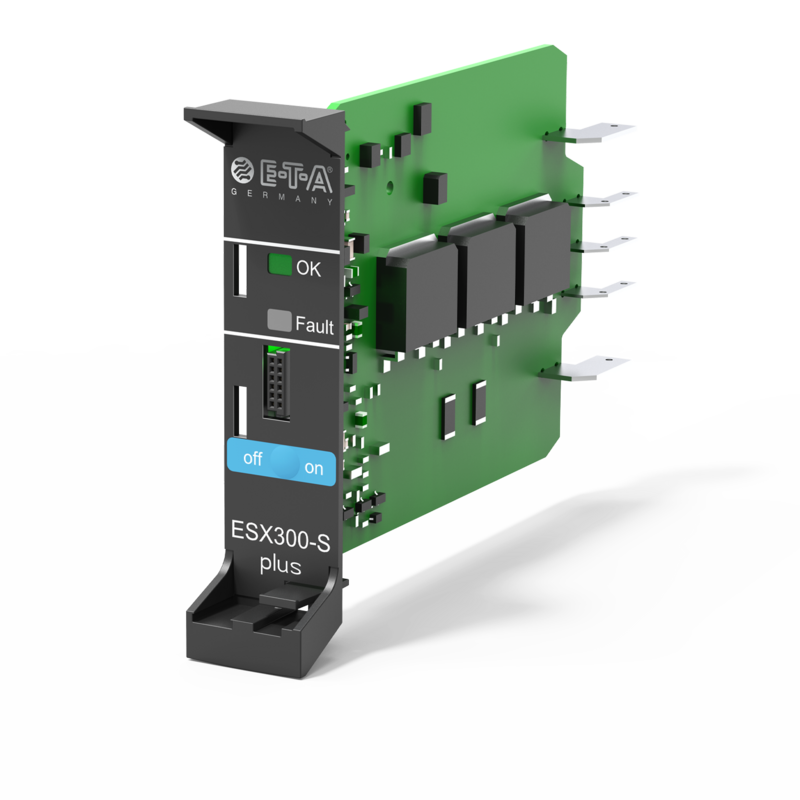

Typ ESX300-S plus von E-T-A: Gewährleistet mittels elektr. Strombegrenzung und -Lastabschaltung den sicheren Überstromschutz.

Descripción

The electronic circuit protector ESX300-S plus has been designed for protection and monitoring systems in telecommunications. Focus application of this device is the minus switching of loads widely used in telecommunications in power supply systems with rated voltage DC +24 V, DC +48 V and DC +60 V. The additionally available overcurrent protection, realised by means of electronic current limitation and electronic disconnection, reliably prevents the destruction of electronic sub-assemblies or load lines by overload or short circuit. In addition, the electronic current limitation helps to prevent high currents flowing in the event of a short circuit, which could cause undesired voltage dips and lead to system crashes.

Datos técnicos

Voltage rating

DC +24 V, DC +48 V, DC +60 V

Rated voltage 2 A
5 A
8 A
12 A
16 A
Status LEDs rojo, verde
Ambient temperature -20 °C ... +55 °C sin condensación ver EN60204-1

Accesorios

Número de pedido Descripción
X22385301

Herramienta de extracción ESX300-S

X22387411

Conexión paralela de varios ESX300-S para dos ESX300-S

X22387401

Conexión paralela de varios ESX300-S para tres ESX300-S

Aplicaciones

  • Automatización
  • Infrastructure & Signalling technology
