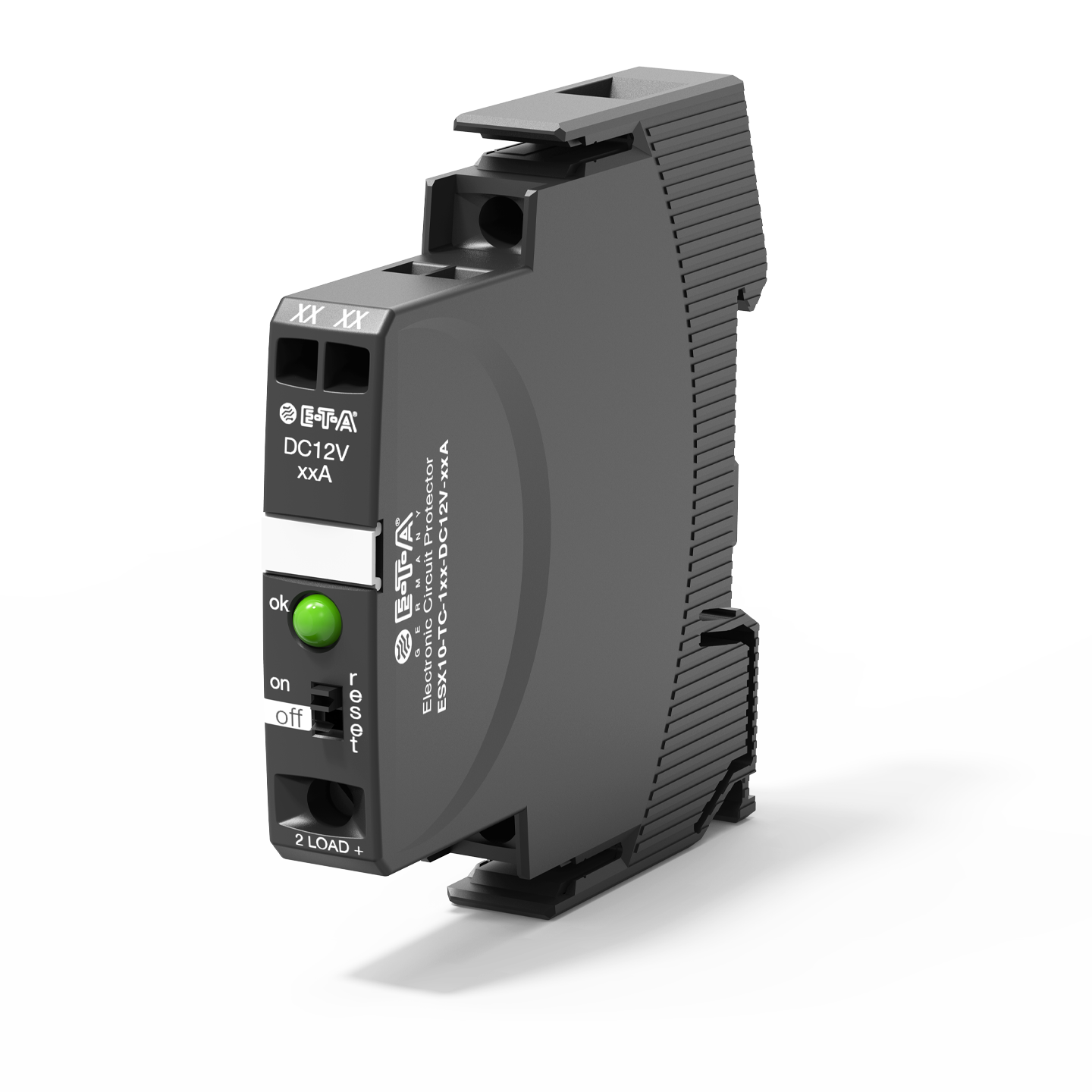

Type: ESX10-TC DC 12 V

Descripción

80 mm

Electronic circuit protector type ESX10-TC is designed to ensure selective disconnection of DC 12 V load systems.

DC 12 V power supplies, which are widely used in industry today, will shut down the output in the event of an overload with the result that one faulty load in the system can lead to complete disconnection of all loads. As well as an unidentified failure this also means stoppage of the whole system.

Through selective disconnection the ESX10-TC responds much faster to overload or short circuit conditions than the switch-mode power supply. This is achieved by active current limitation. The ESX10-T limits the highest possible current to 1.3 to 1.8 times the selected rated current of the circuit protector. Thus it is possible to switch on capacitive loads of up to 20,000 μF, but they are disconnected only in the event of an overload or short circuit.

Descargas

Datos técnicos

Datos técnicos

Voltage rating  DC 12 V (9...18 V)
Current ratings  1 A
2 A
3 A
4 A
6 A
10 A
Signal output  status output, plus-switching (DC 12 V)
short circuit-proof, max. 0.2 A
Number of poles
  • 1-pole
Load disconnection
  • short circuit: typically 50 ms
    overload: typically 3 s
Current limitation
  • typically 1.8 / 1.5 x IN
Status indication
  • 1 LED green/orange/red: status/fault
Temperature range  -25...+60 °C
Terminal design
  • screw terminals
Approvals UL 2367
UL 508
UL 2367
UL 508
UL 1604 (class Ι, div.2, groups A,B,C,D)
TÜV Süd/ATEX - approval
IEC/EN 60079-0/-14/-15

Accesorios

Accesorios

Order numberDescription
AD-TX-EM01Módulo de alimentación
X 222 611 97Borne de salida de carga
X 222 611 59Barra colectora bloque 5 unidades
X 222 611 47Barra colectora bloque 4 unidades
X 222 611 34Barra colectora bloque 3 unidades
X 222 611 01Barra colectora
rojo
X 222 611 12Barra colectora bloque 10 unidades
X 210 589 01/02Puentes conectores bus -K10
01 = 2,5 mm2 negro
02 = 1,5 mm2 marrón

Aplicaciones

Aplicaciones

  • Sector de automoción
  • Construcción de máquinas
  • Técnica médica
  • Industria alimentaria y farmacéutica
  • Automatización
