Type: ESX10-S

Descripción

60 mm

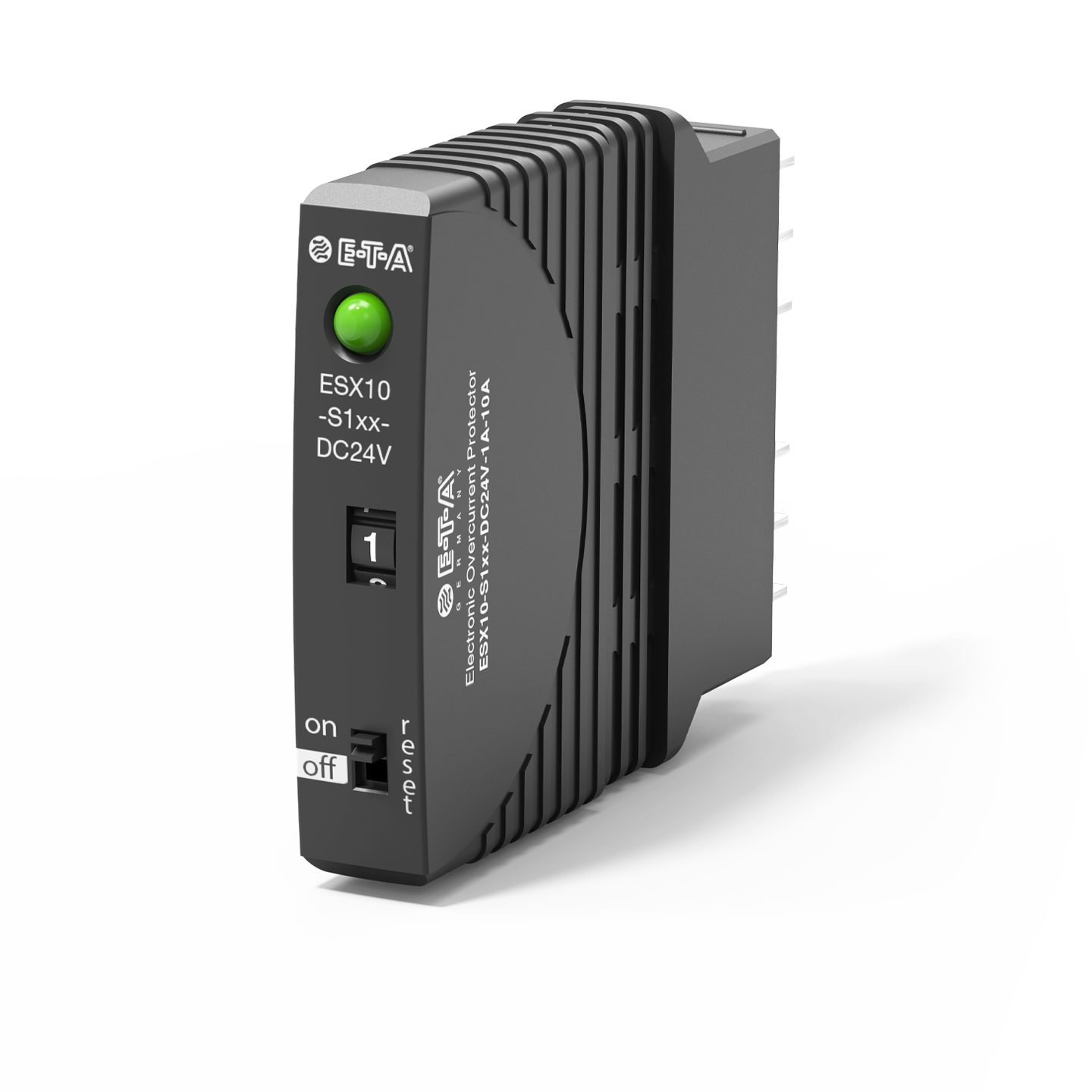

The model ESX10-Sxxx extends our product group of electronic overcurrent protection devices for DC 24 V applications. At a width of only 12.5mm it provides selective protection for all DC 24 V load circuits. This is achieved by a combination of active electronic current limitation in the event of a short circuit and overload disconnection typically from 1.2 times rated current. The ESX10-S is a plug-in type and thus allows quick and easy installation for groups of devices with several circuits on the power distribution systems Module 17plus and SVSxx.

Descargas

Datos técnicos

Datos técnicos

Voltage rating  DC 24 V
Current ratings  1 A
2 A
3 A
4 A
5 A
6 A
7 A
8 A
9 A
10 A
Number of poles
  • 1-pole
Load disconnection
  • short circuit: typically 100 ms
    overload: typically 3 s
  • without physical isolation at short circuit/overload
    trip times:
    short circuit: typically 100 ms
    overload: typically 3 s
Current limitation
  • typically 1.4 x IN
Signal output  Meldeausgang F, Statusausgang SF
Status indication
  • 1 LED green/orange/red: status/fault
Temperature range  0...+50 °C
Terminal design
  • blade terminals 6.3 mm
Approvals UL 2367 DC 24 V 1...10 A
UL 508 DC 24 V 1...10 A

Accesorios

Accesorios

Aplicaciones

Aplicaciones

  • Sector de automoción
  • Industria química, petroquímica y del gas
  • Técnica de centrales eléctricas DC 24 V
  • Construcción de máquinas
  • Industria alimentaria y farmacéutica
  • Automatización
