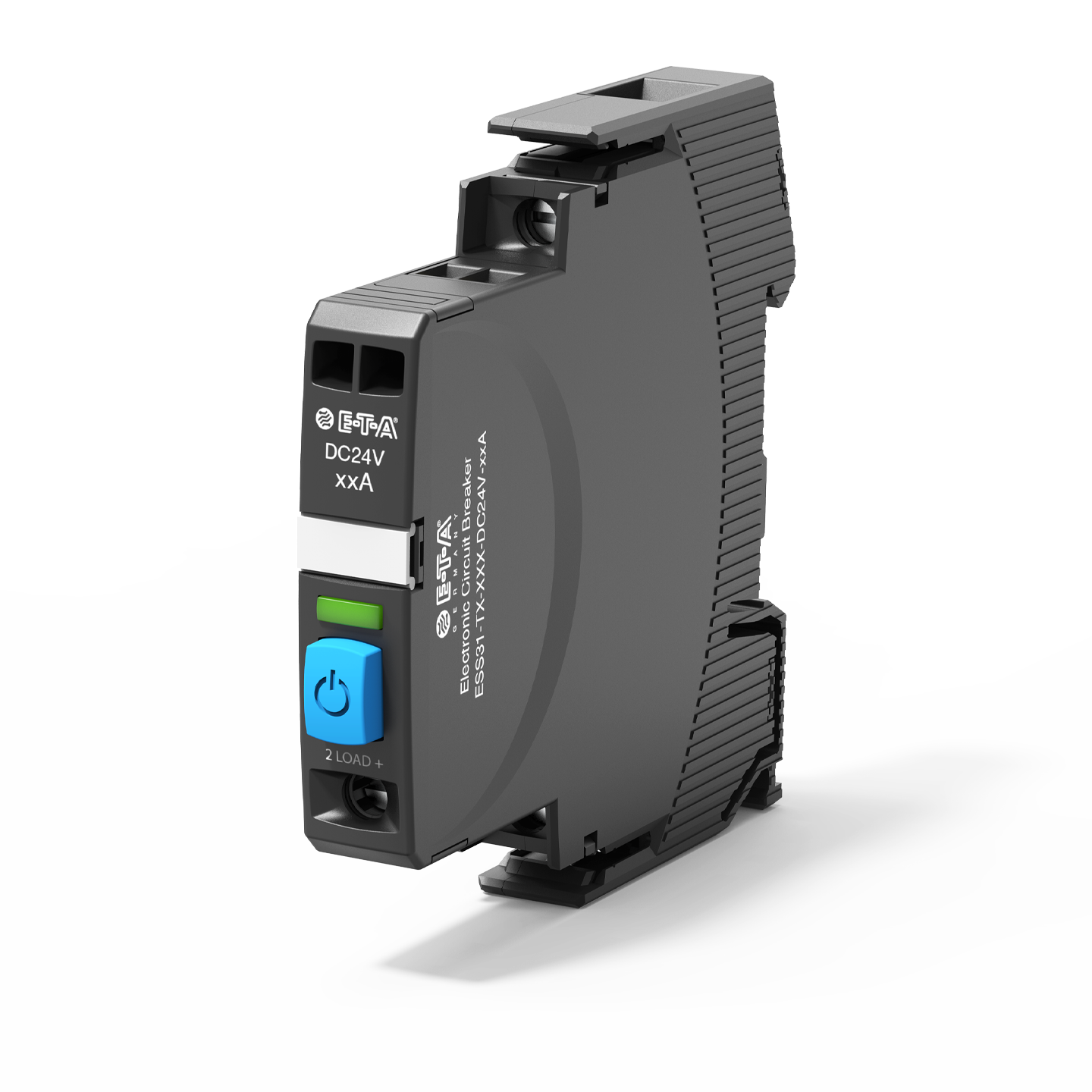

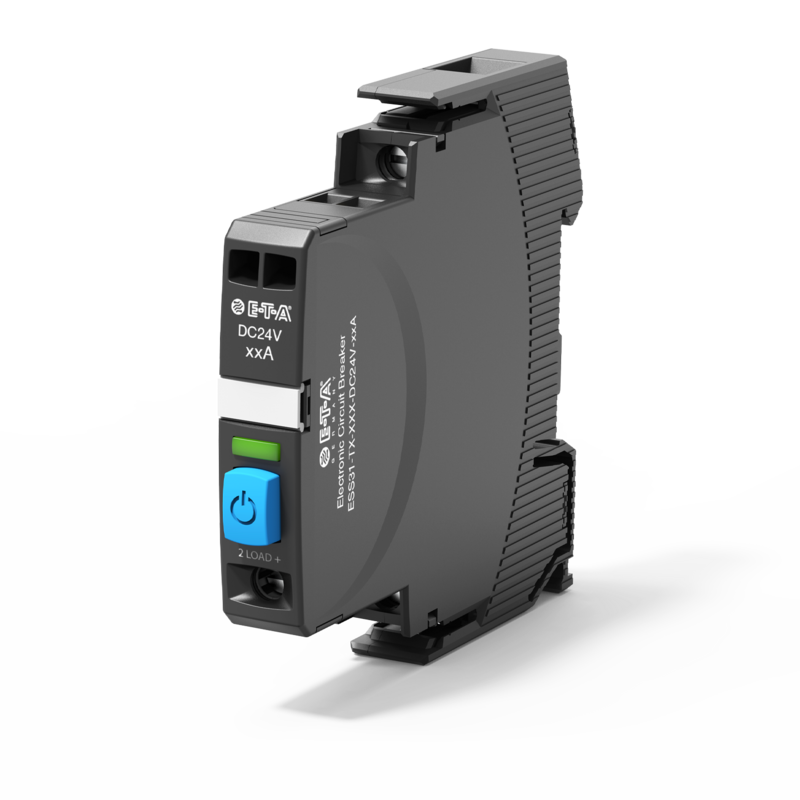

Type: ESS31-T

Descripción

80 mm

The model ESS31-T extends our product group of electronic overcurrent protection devices for DC 24 V applications. At a width of only 12.5 mm it provides selective protection for all DC 24 V load circuits. This is achieved by a combination of active electronic current limitation in the event of a short circuit and overload disconnection at typically 1.2 times rated current. The ESS31-T is track-mountable and provides ease of installation for groups of devices with several circuits.

Descargas

Datos técnicos

Datos técnicos

Voltage rating  DC 24 V 18 V...30 V
Current ratings  0.5 A
1 A
2 A
3 A
3,6 A
4 A
6 A
8 A
10 A
12 A
Rated voltage
  • DC 24 V
Number of poles
  • 1-pole
Load disconnection
  • with physical isolation
    trip times:
    short circuit: typically 100 ms
    overload: typically 500 ms
Current limitation
  • typically 1,2 x IN
Status indication
  • 1 LED green/orange/red: status/fault
Temperature range  0...+50 °C
Terminal design
  • screw terminals
Approvals UL UL 1077 DC 24 V 0,5...12 A
VDE IEC/EN 60934 DC 24 V 0,5...12 A

Accesorios

Accesorios

Aplicaciones

Aplicaciones

  • Sector de automoción
  • Industria química, petroquímica y del gas
  • Técnica de centrales eléctricas DC 24 V
  • Construcción de máquinas
  • Industria alimentaria y farmacéutica
  • Industria siderúrgica
  • Automatización
