Type: ESS30-S

Descripción

60 mm

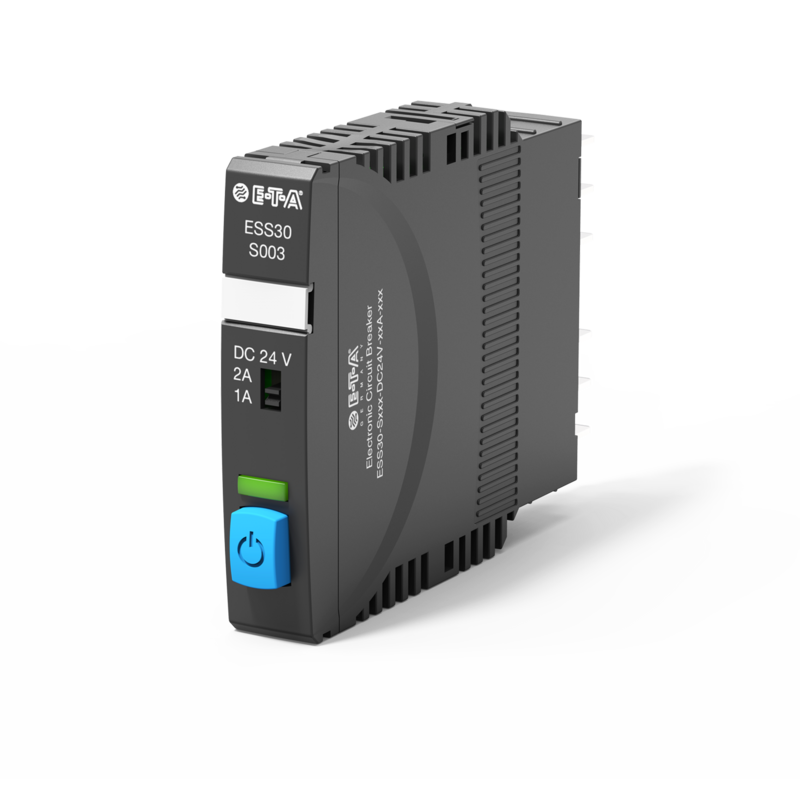

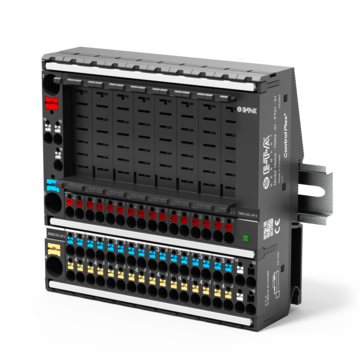

The electronic circuit breaker type ESS30-S has particularly been designed for decentralised and centralised 24 V DC power supply units. Its very low quiescent current lays the foundation of the new protection category "Low Energy Breaker”. The combination of innovative electronic circuitry and well-proven physical isolation makes up a circuit breaker meeting all requirements of the DIN EN60934 (circuit breaker for equipment protection) and UL1077 (Supplementary Protector). This compact and pluggable type fits into the standard E-T-A terminal block systems (17plus, 18plus and SVSxxx power distribution systems).

Descargas

Datos técnicos

Datos técnicos

Voltage rating  DC 24 V (18...30 V)
Rated voltage
  • DC 24 V
Current ratings  0.5 A
1 A
2 A
3 A
3,6 A
4 A
6 A
8 A
10 A
Mounting method plug-in type,
Number of poles
  • 1-pole
Load disconnection
  • with physical isolation
    trip times:
    short circuit: typically 150 ms...500 ms
    overload: typically 500 ms
Current limitation
  • typically 1,2 x IN
Status indication
  • 1 LED green/orange/red: status/fault
Temperature range  0...+60 °C
Terminal design
  • blade terminals 6.3 mm
Approvals UL UL1077 DC24V
VDE IEC/EN 60934 DC24V
