Module 17plus
Modular power distribution system,
track-mountable
Tipo E-1048-S7...
80,3 mm
Descripción

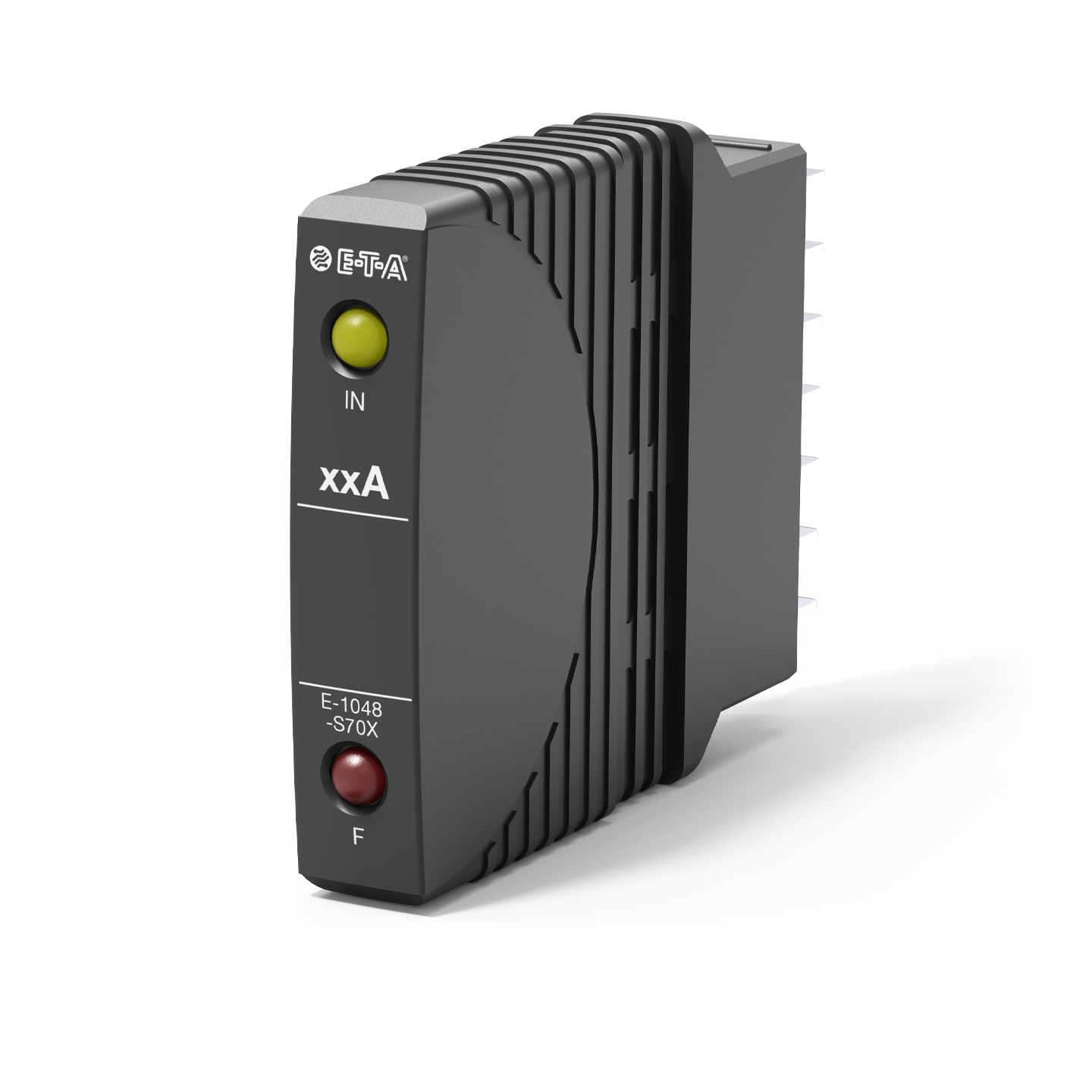

The E-T-A solid state remote power controller for PLC outputs E-1084-S7... is a transistor switch with integral protection and signalling functions. It is used in applications where the existing PLC output power is not sufficient. In addition the device provides protection against short circuit and overload as well as a monitoring function with regard to wire break. The solid state remote power controller E-1048-S7.. reduces the number of components such as fuses and relays and avoids the use of expensive powerful output cards.
The devices are operated on a power distribution module 17plus and they also fit into the smart power distribution system SVS16. The E-1048-S7.. easily allows control, protection and load circuit diagnosis and offers reduced wiring efforts.
Datos técnicos
| Voltage rating of load | DC 24 V |
|---|
Accesorios
| Número de pedido | Descripción | |
|---|---|---|
| 17plus |
Sistema de distribución de potencia |
|
| 17-P10-Si/-20025 |
Zócalos |
|
| 17-P70-Si/-20025 |
Zócalos |
|
| 23-P10-Si |
Zócalos |
|
| 63-P10-Si |
Zócalo |
|
| SB-S11-P1-01-1-1A |
Puente (jumper) |
|
| X20040901 |
Adaptador de zócalo 16 para montaje en carril normalizado |
|
| X21058801-04 |
Puentes conectores bus -P10 01 = 1,5 mm2 marrón
02 = 2,5 mm2 negro
03 = 2,5 mm2 rojo
04 = 2,5 mm2 azu |
|
| X21115601 |
Borne de tornillo |
|
| X21115701/02 |
Barra colectora para zócalo de montaje
01 = con borne
02 = sin borne |
|
| X22200401 |
Ángulo final |
|
| X22200501-03 |
Barra colectora de señales 01 = azul
02 = rojo
03 = gris |
|
| Y30050402 |
Clip de montaje |
|
| Y30058103 |
Clip de fijación de zócalo |
|
| Y30058111 |
Clip de fijación de zócalo |
|
| Y30382401 |
Tubo flexible aislante para barra colectora |
|
| Y30701601/11 |
Barra colectora |
|
| Y30775401 |
Clip de fijación |
|
| Y30794261 |
Etiqueta |
Aplicaciones
- (Industria siderúrgica)
- Automatización
- Construcción de máquinas
